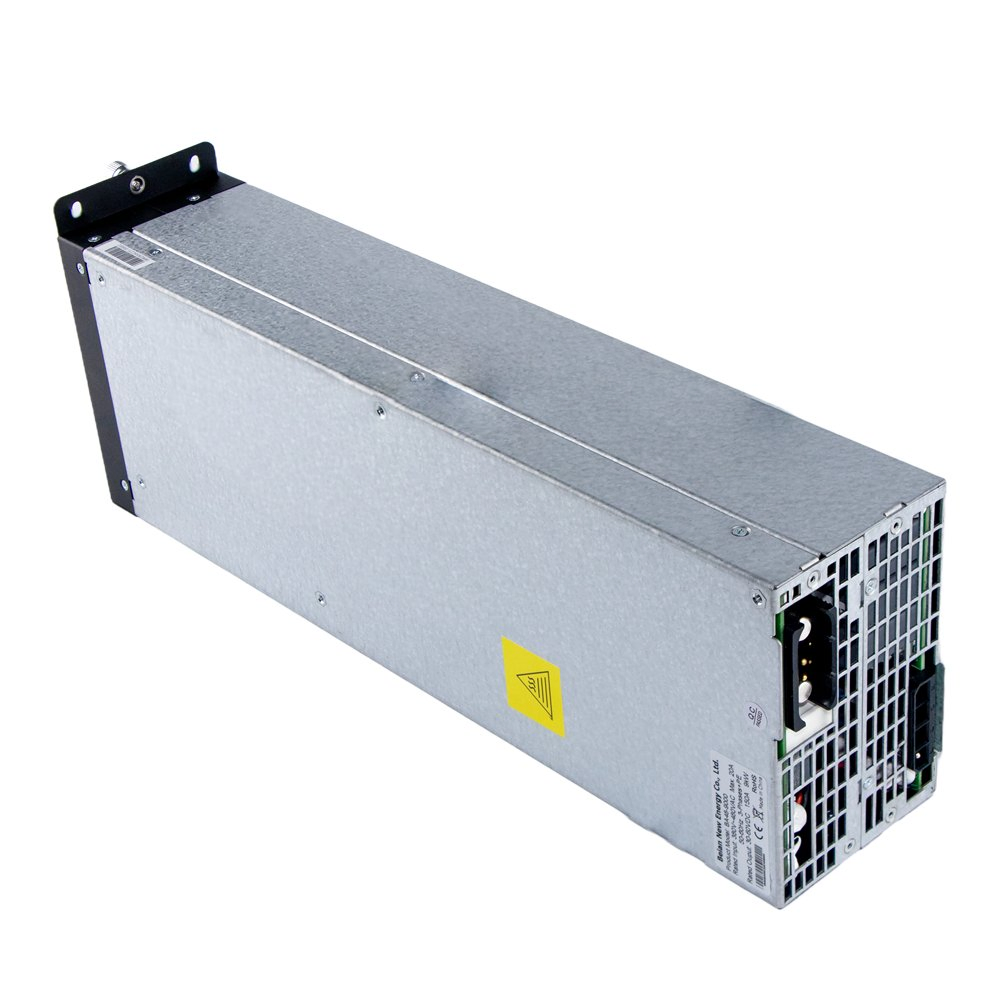

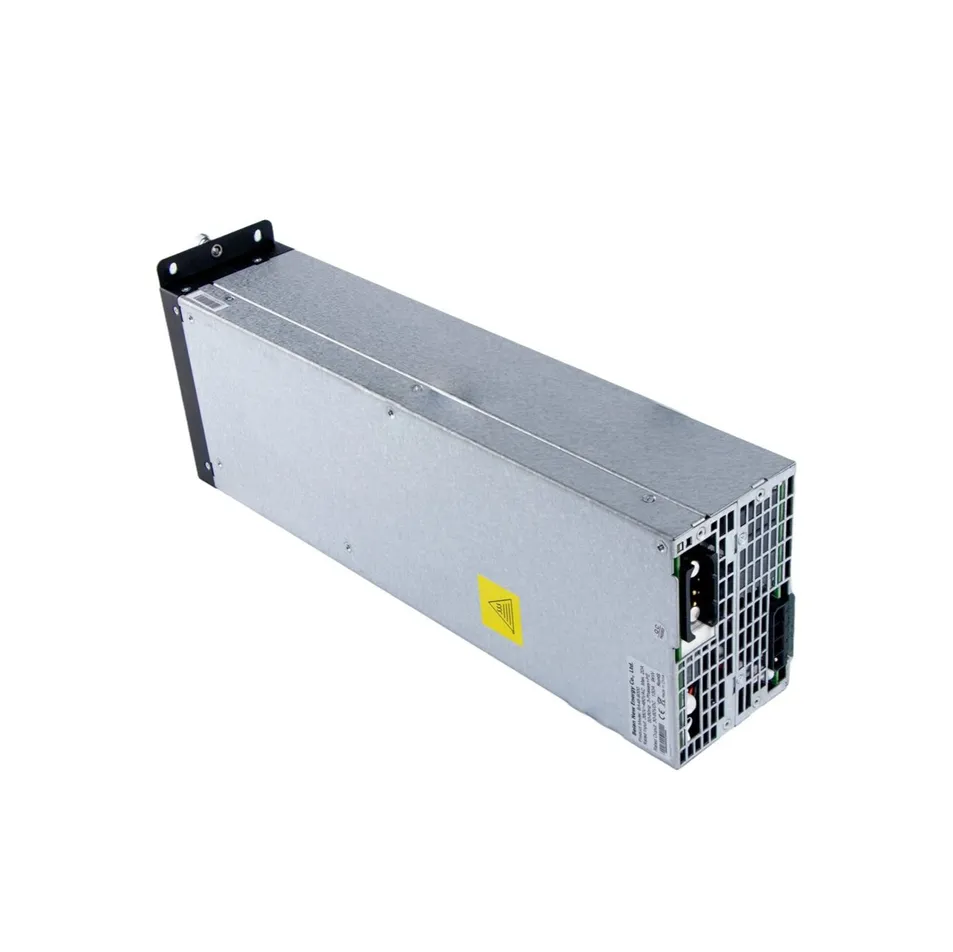

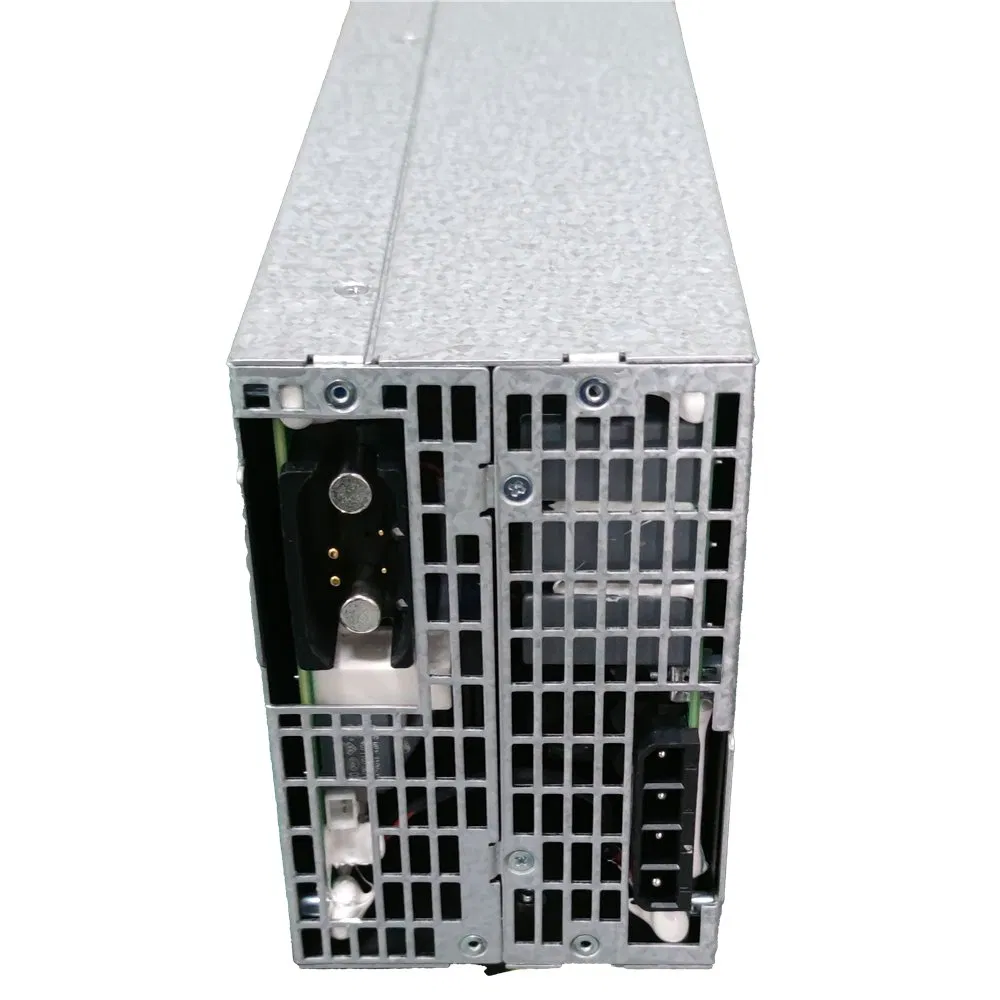

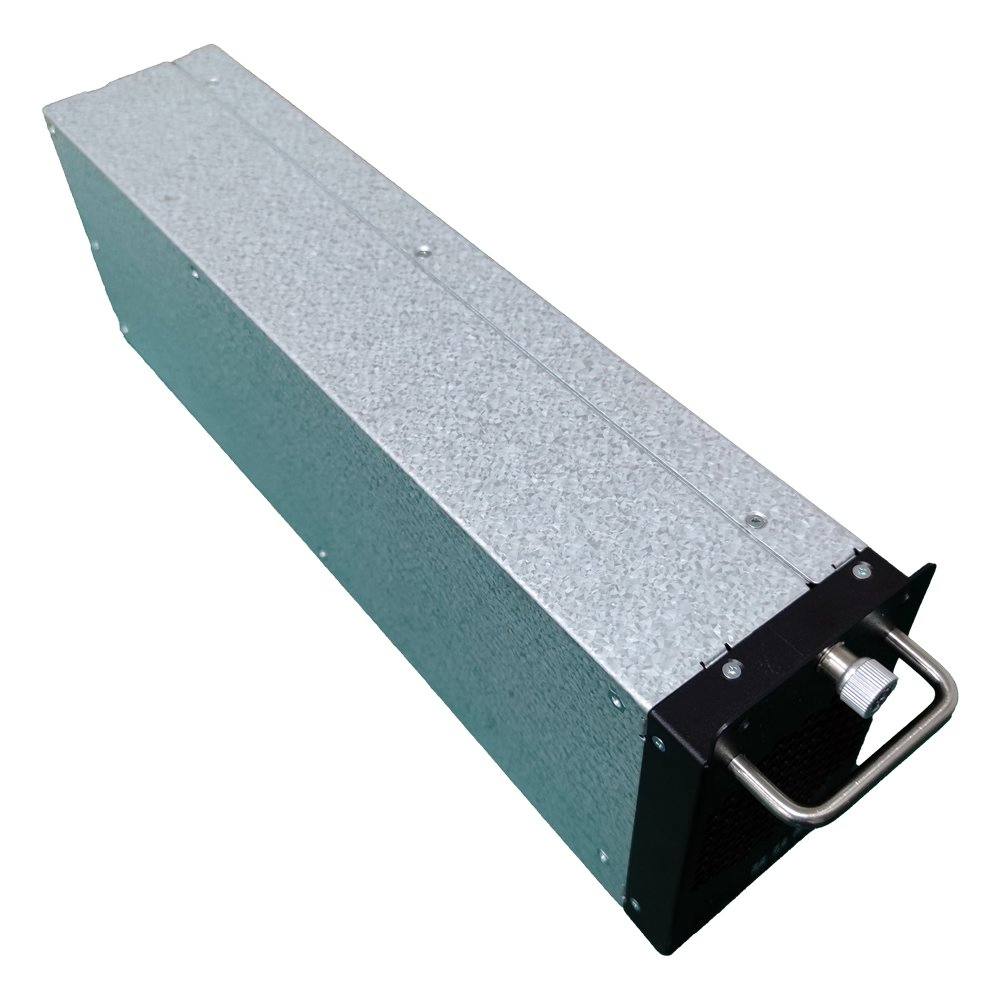

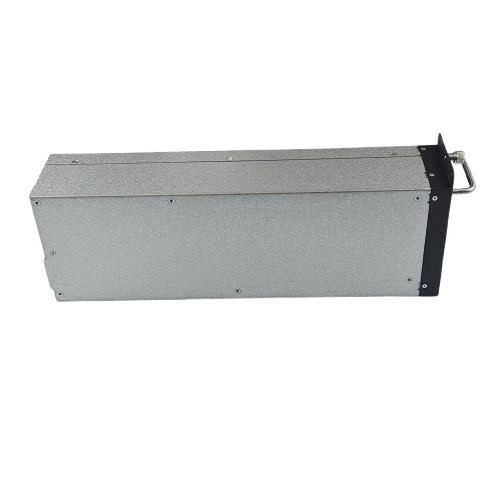

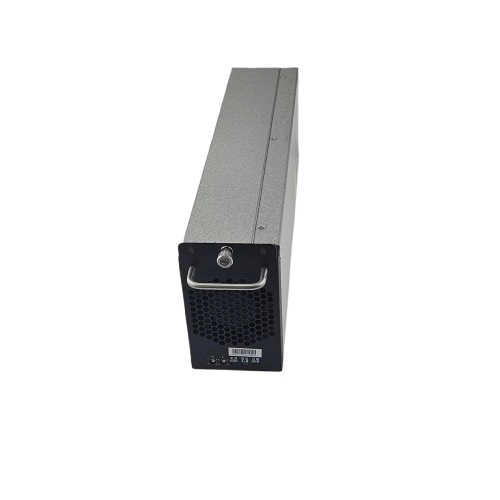

ACDC converter power supply electronic relay 9KW Fast Charging Module

1 / 5

ACDC converter power supply electronic relay 9KW Fast Charging Module

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

BA48-9000

Output Power

9kW

Input Voltage

380V

Voltage Regulating Mode

CANBUS

Power Supplying System

Terminal Power Distribution Equipment

Energy Transmission

One-way Transmission

Modulation System

PFC

Certification

CE, RoHS

Transport Package

Carton

Specification

L396*W130*H84mm

Technical Specification

Category	Item	Value
DC Output	Rated output power	9kW
	Rated output current	150A
	Output voltage range	DC20V~60V
	Efficiency	≥95%
AC Input	Rated input voltage	AC380V/AC480V 3-Phases
	Input voltage range	AC323V~AC520V (Full Power)
	Power Factor	≥0.99
Dimensions	Size	L396W130H84mm
Weight	Net weight	7kg

Product Overview

The BA48-9000 series high-frequency switching ACDC module is a versatile AC input and DC output converter with adjustable DC output.

The module utilizes DSP digital control, resonant soft-switching, and active PFC technology. It features high power density, high power factor, low harmonics, and high efficiency, supporting parallel connection for multiple modules.

Key Functions & Features

1. High Efficiency Reduces energy consumption, meets energy-saving requirements, and helps save on electricity costs.

2. High Power Density Saves installation space and lowers overall system costs.

3. DSP Digital Control Fewer components, higher environmental stability, greater reliability, and easier capacity expansion.

4. Low Input Harmonic Distortion Reduces grid pollution and enhances grid adaptability.

5. Wide Operating Range Suitable for most applications with varying voltage requirements and harsh working environments.

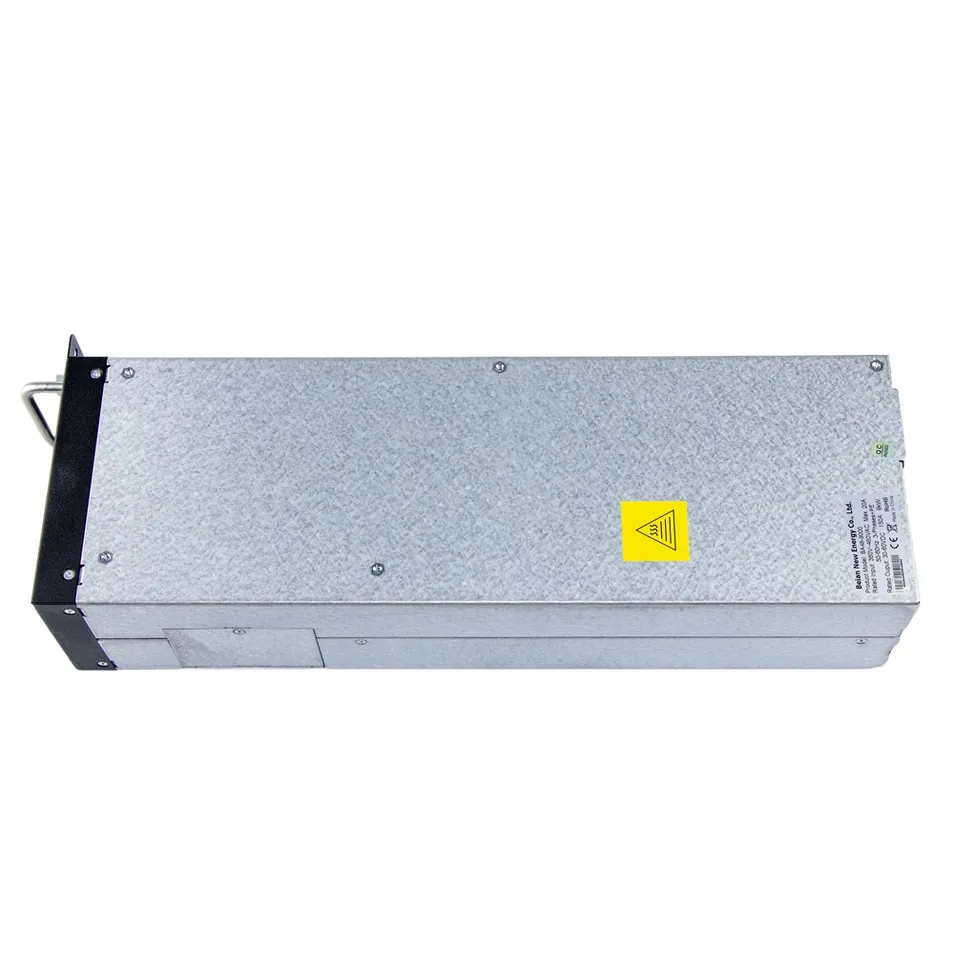

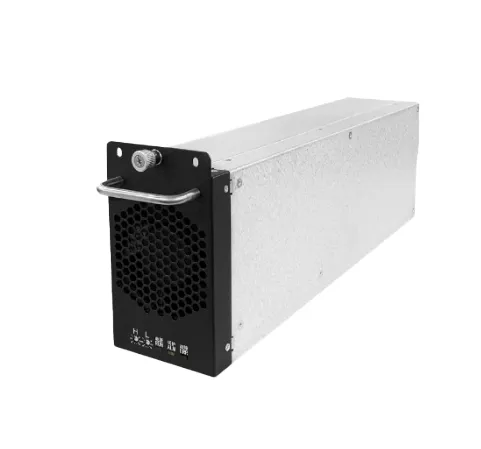

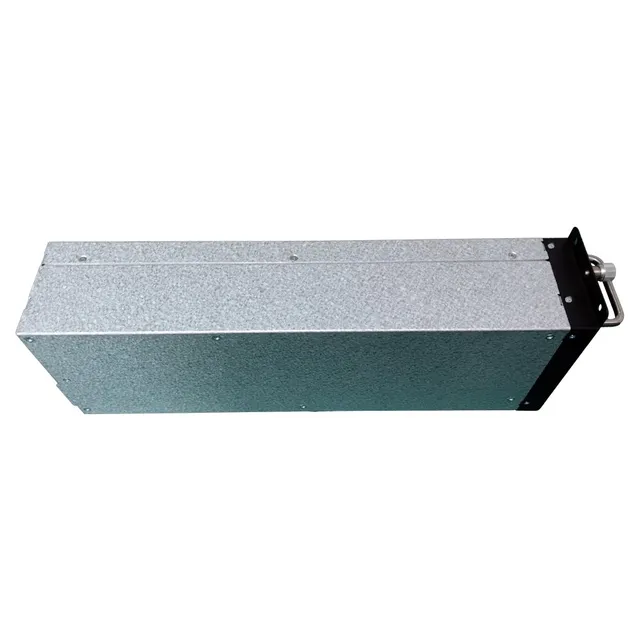

Product Details

Packaging & Shipping

Package Size

50.00cm * 30.00cm * 15.00cm

Gross Weight

18.000kg

Lead Time

30 days (1 - 10 Pieces)

About Our Solutions

We are a high-tech new energy enterprise focusing on customized solutions and products of lithium-ion batteries. Our products are applied in fields such as solar energy storage systems, electric vehicles, electric forklifts, marine, golf carts, and AGV etc.

We also provide high voltage DC contactors, connectors, and manual service disconnects (MSD) for electric vehicles and energy storage systems (ESS). As a total lithium-ion battery solution provider, we offer a quality guarantee ranging from 1 to 10 years.

Frequently Asked Questions

How can I obtain pricing for the 9KW module?

We usually provide a quote within 24 hours after receiving your inquiry. For urgent requests, please mention it in your message for priority processing.

Is there a minimum order quantity (MOQ)?

We aim to support our customers without strict MOQ requirements.

Can I request a sample before placing a bulk order?

Yes, we welcome sample orders to test and verify the quality of our modules.

What is the typical lead time for production?

Samples typically take 7 days, while mass production requires 3-5 weeks depending on the order quantity.

What is the warranty period for this product?

In general, our standard warranty period for this charging module is 1 year.

Which certifications do your products hold?

Our products are certified with CE, FCC, ROHS, UN38.3, and MSDS as required.
