| Model | CT9 PRO |
| Operating System | Linux OS |
| Display | 3.5" Capacitive Touch Screen |
| Identification | RFID, NFC, BLE, Pin Code, QR Code |
| Interface | 4G, TCP/IP, RS485 OSDP, Wiegand |
| RFID Frequency | Dual 125KHz & 13.56MHz |
| Capacity | 10,000 Users / 50,000 Logs |
| Power | 12-30V DC, PoE (IEEE 802.3af) |
| Protection | IP65 Waterproof Outdoor Use |
| Certification | CE, FCC |

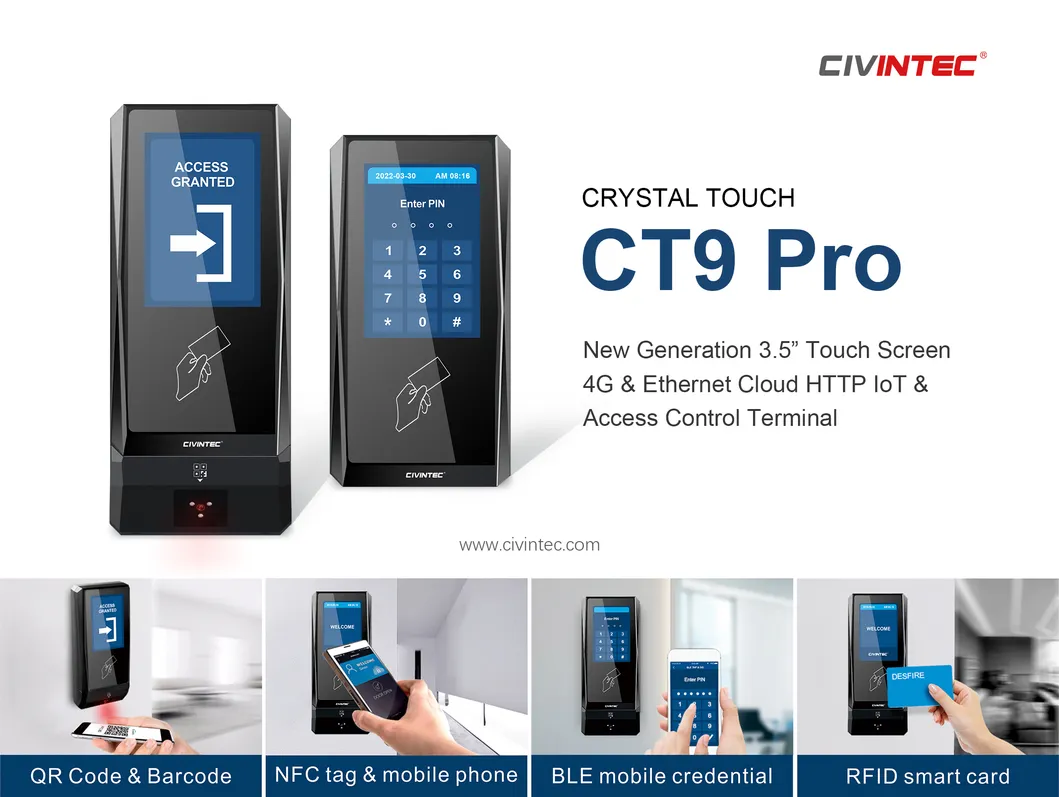

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server software communication. It supports 5-in-1 multiple access credential technologies, featuring a touch keypad, dual-frequency RFID, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phones.

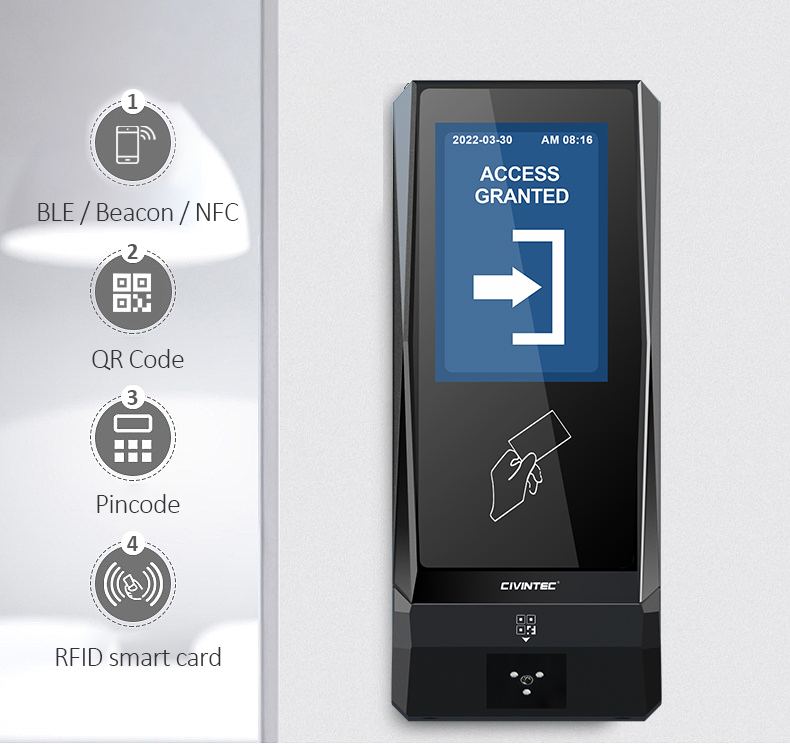

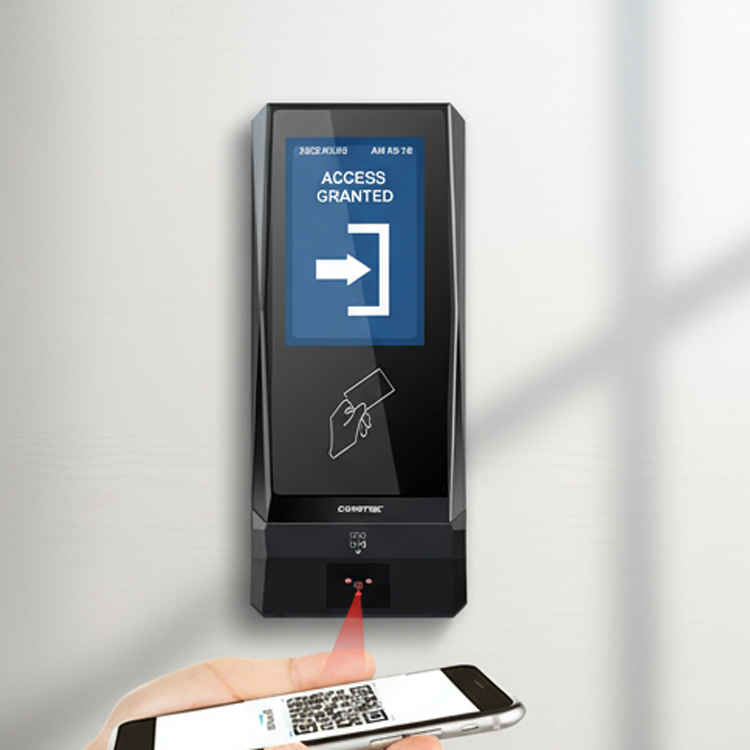

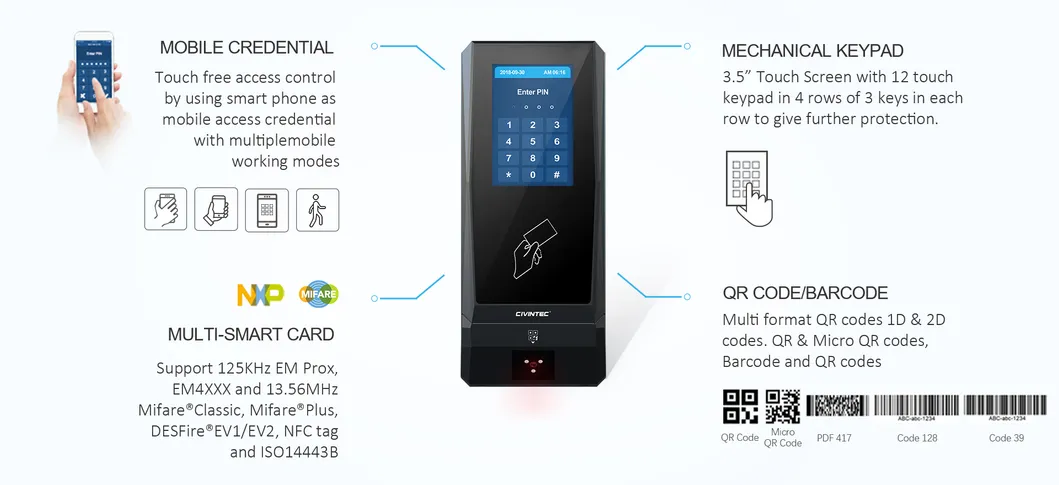

Incorporates 5-in-1 technology including touch keypad, RFID (125KHz & 13.56MHz), BLE, NFC, and QR Code for versatile visitor management.

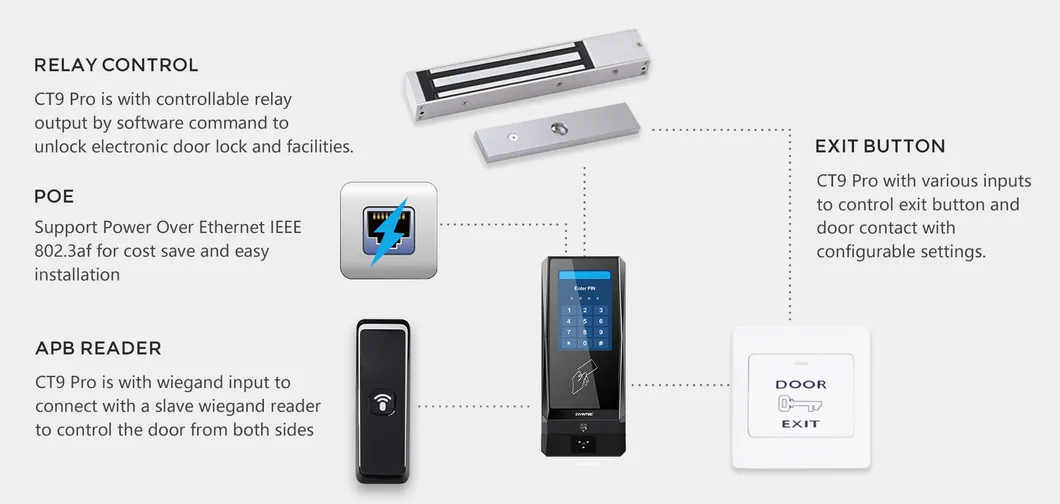

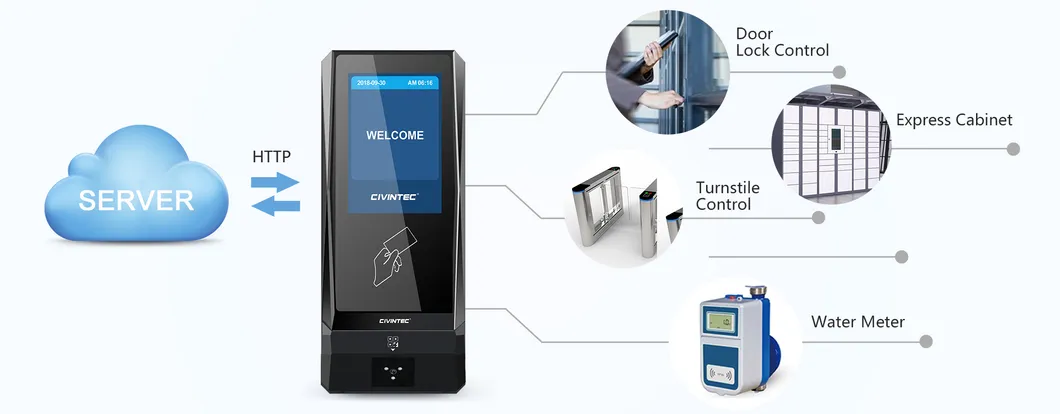

Bi-directional communication via standard HTTP & HTTPs for remote door lock control and facility management.

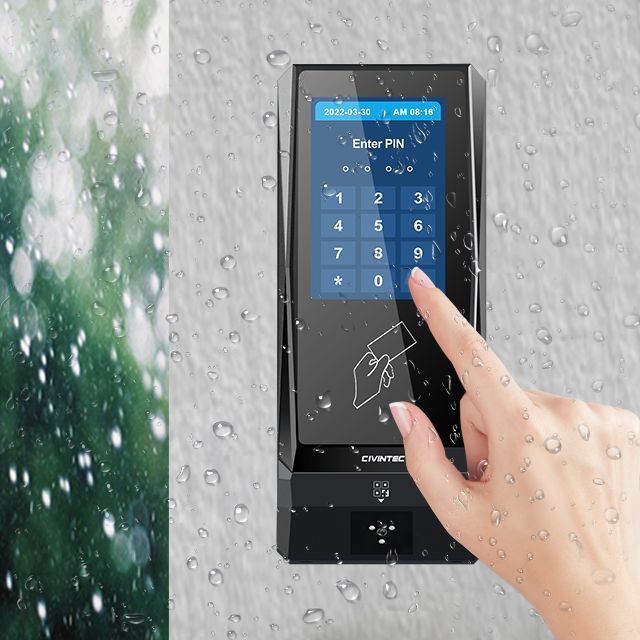

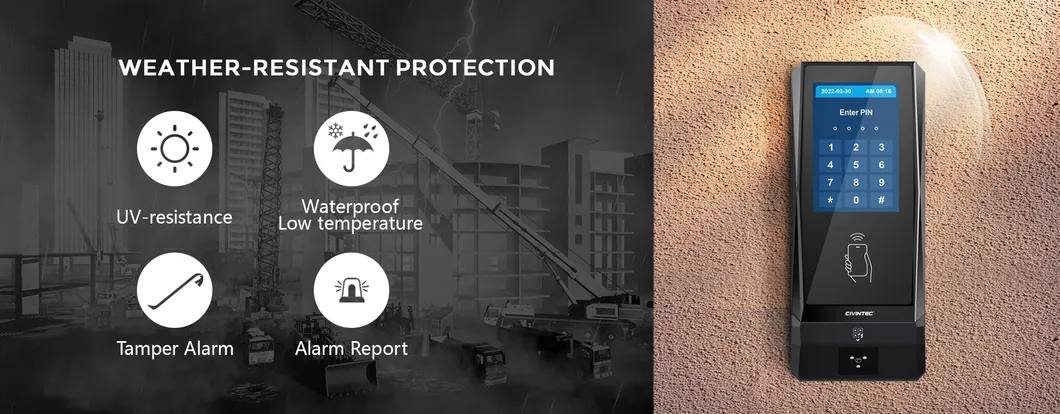

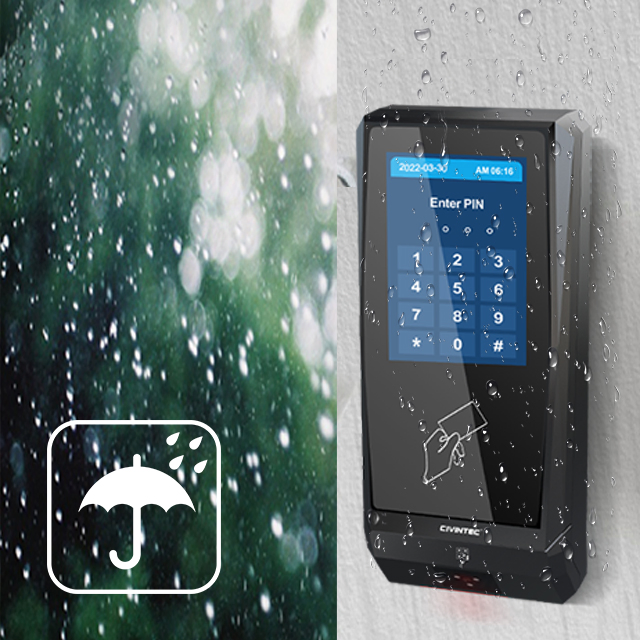

IP65 rated protection against rain, dust, and strong sunlight. Ideal for low-temperature and rugged outdoor environments.
Offering complete customization on hardware, reader housing, firmware, and software design. Users can program and display their own logos on the 3.5" touch screen.
