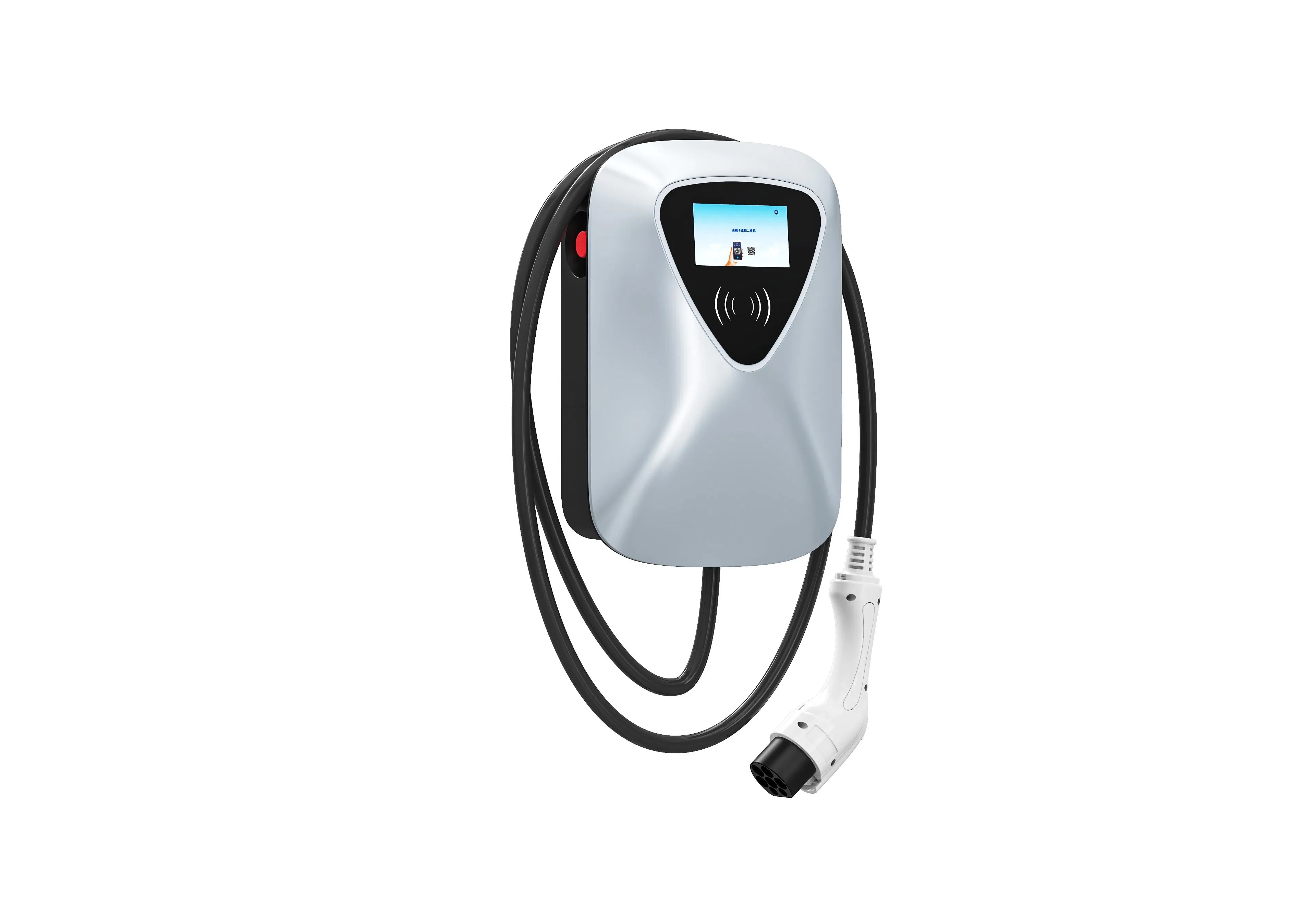

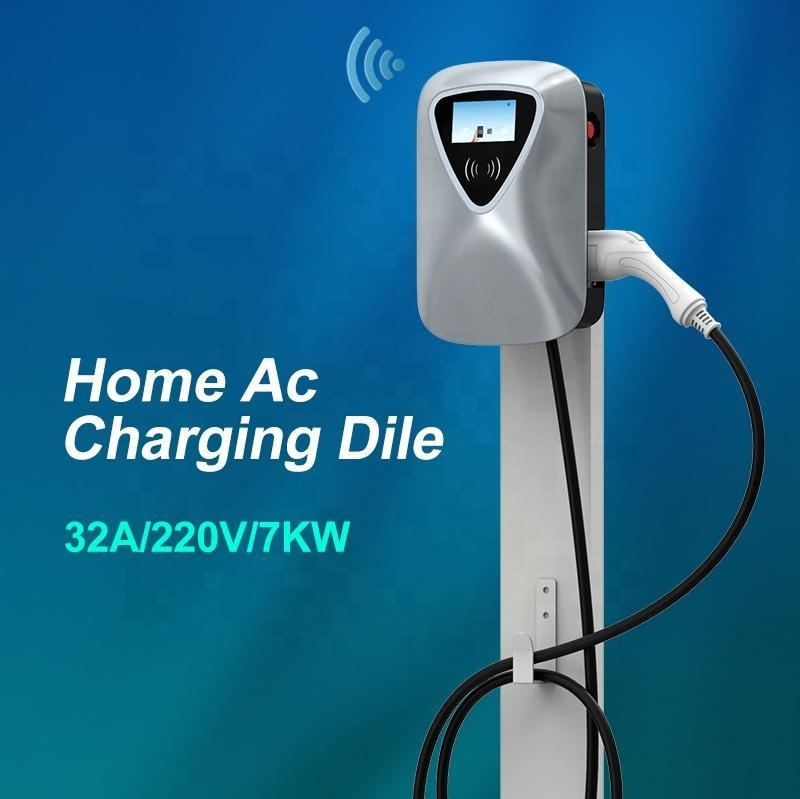

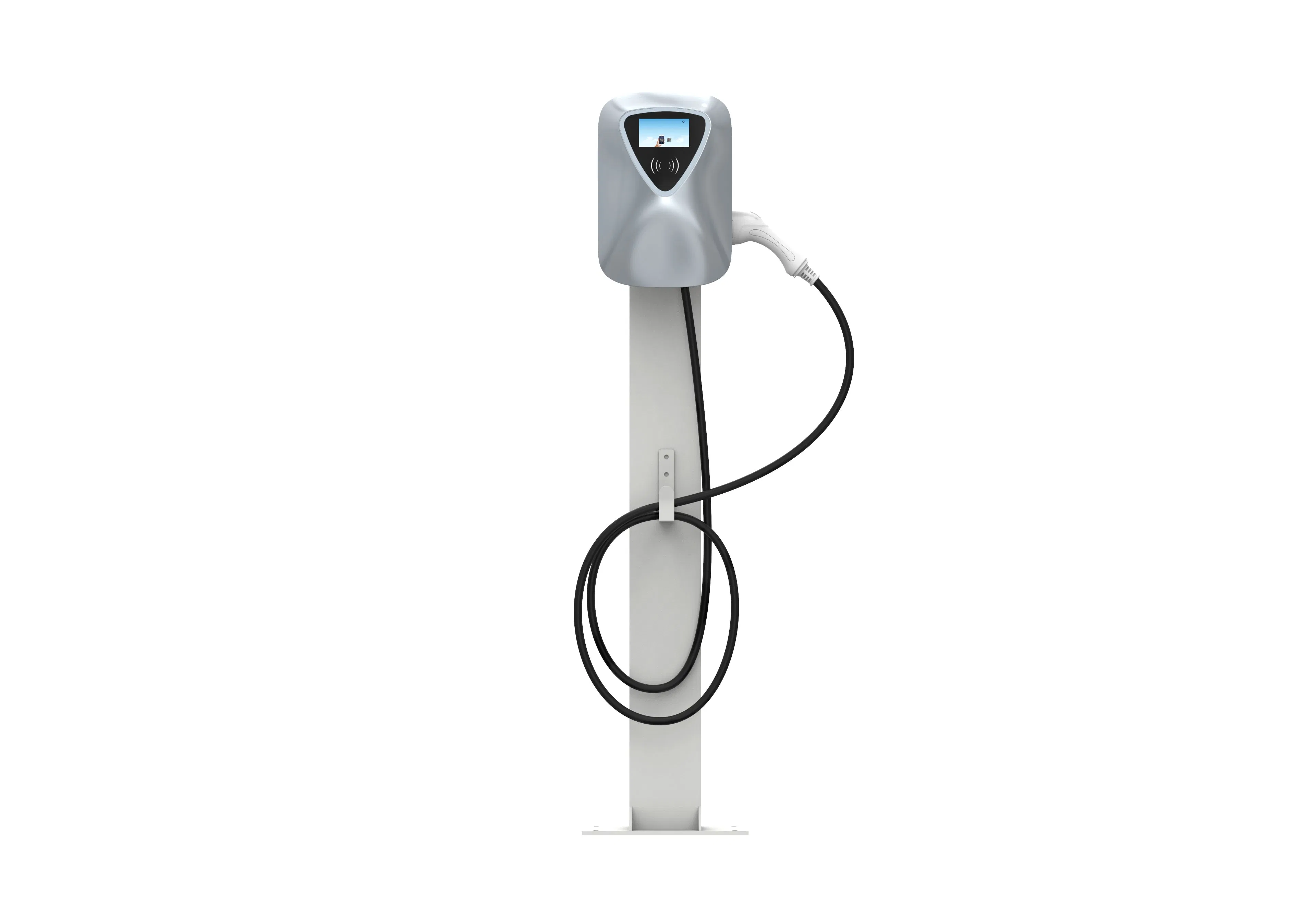

AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m
AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m
AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m
AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m
AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m
1 / 5
AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m
AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m
AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m
AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m
AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m

AC Wallbox 3.5kw 11kw 22kw, 16A, 32A, 3-Phase, Cable 5m

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Charging InterfacesOne Pile with One Charge
LocationHome/Public
InstallationWall / Floor Mounted
Charge MethodNormal Charge
Protection10 Safety Protections
Warranty2 Years
Specification378*258*165mm
Product Overview
EV Charger Overview

Convenient and reliable EV charging solution for charging electric vehicles at home (3.5KW-22KW Wallbox/Column type).

Key Highlights
📊Smart Interface

4.3 inch LCD screen supporting English, Russian, and Turkish languages.

⚡Versatile Power

Output options include 3.5KW, 7KW, 11KW, and 22KW for various vehicle needs.

🛡️Certified Safety

Factory ISO 9001/14001/45001. Products: CE, ROHS, UL, TUV, ETL, CNAS, CB, IEC.

🌐Connectivity

Supports Ethernet, Wireless, RFID Card, and OCPP 1.6J (optional).

Technical Parameters
Parameter Details
EV Charger TypeAC
Capacity Options3.5KW / 7KW / 11KW / 22KW
Supply SystemSingle-Phase (3 Wire) / Three-Phase (5 Wire)
Nominal Input VoltageAC220V / AC240V / AC380V ±15%
Input Frequency50/60±3Hz
Ambient Temperature-25 to 55°C
Storage Temperature-40 to 70°C
IP RatingsIP 54
CoolingNatural Cooling
Max. Current16 Amp / 32 Amp / 50 Amp (depending on model)
AuthenticationMobile App / QR Code / RFID Card / Password
Safety StandardIEC 62196 2017, IEC 61851 2017, SAE J1772
Detailed Photos

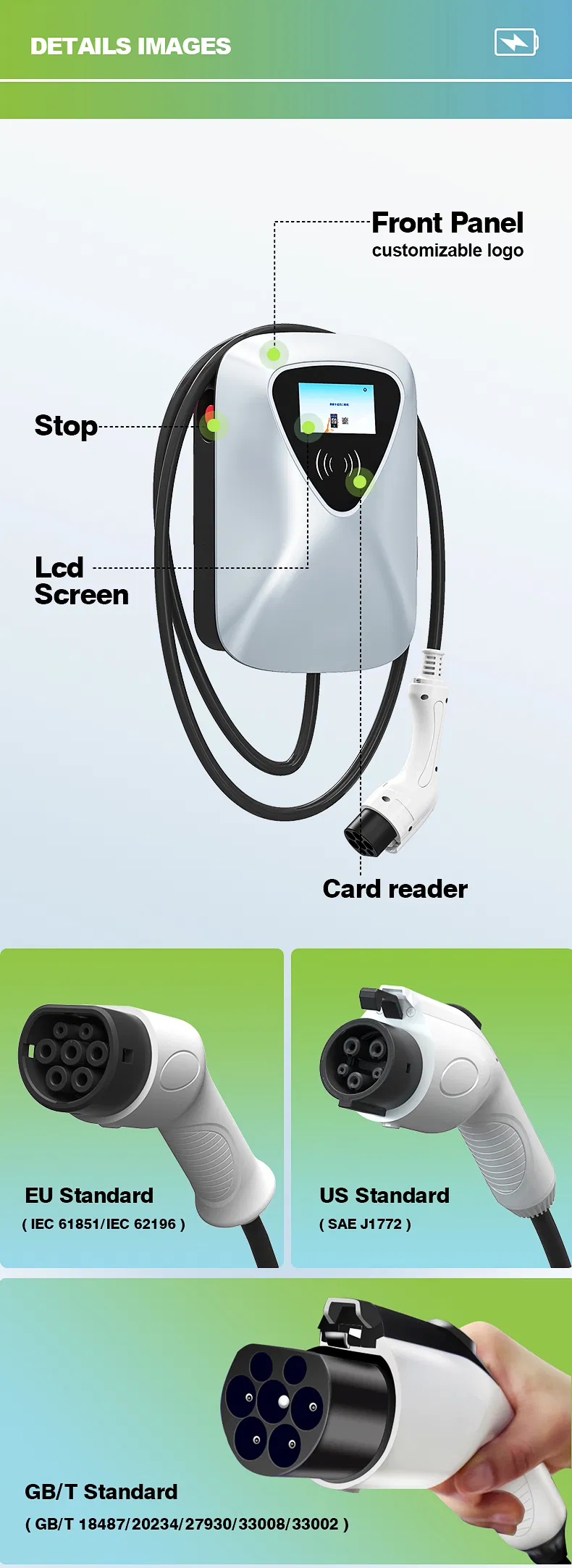

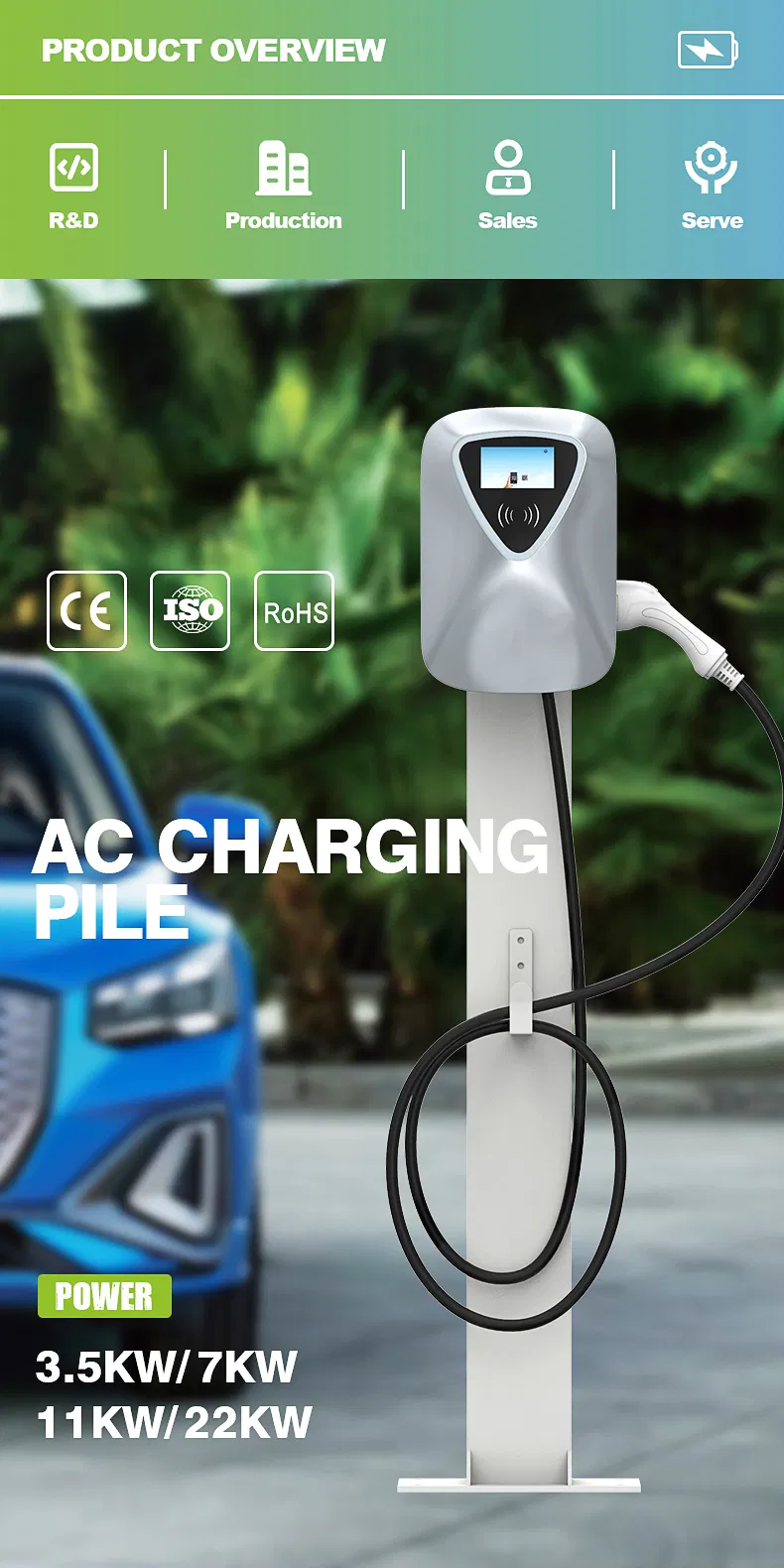

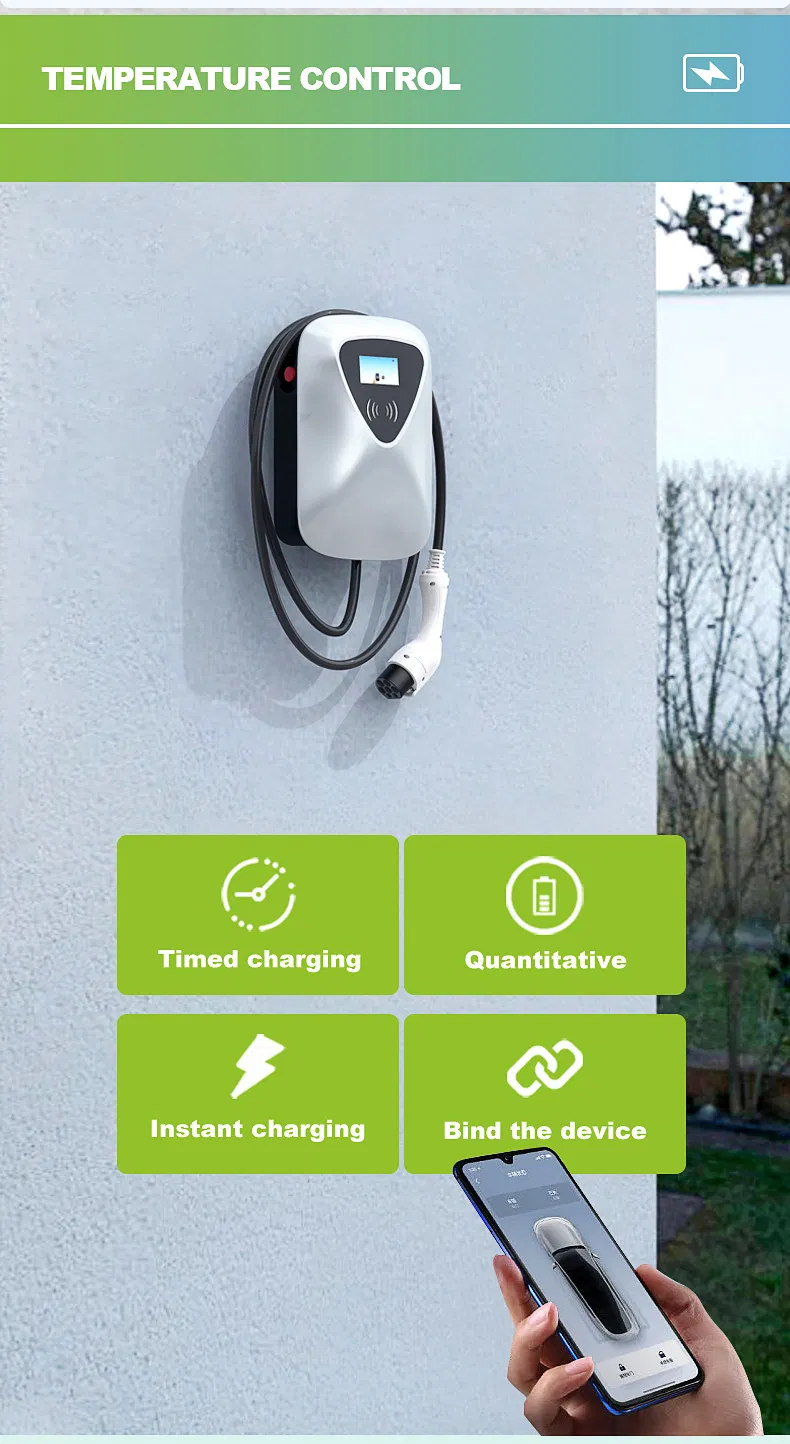

Detailed View 1 Detailed View 2 Detailed View 3

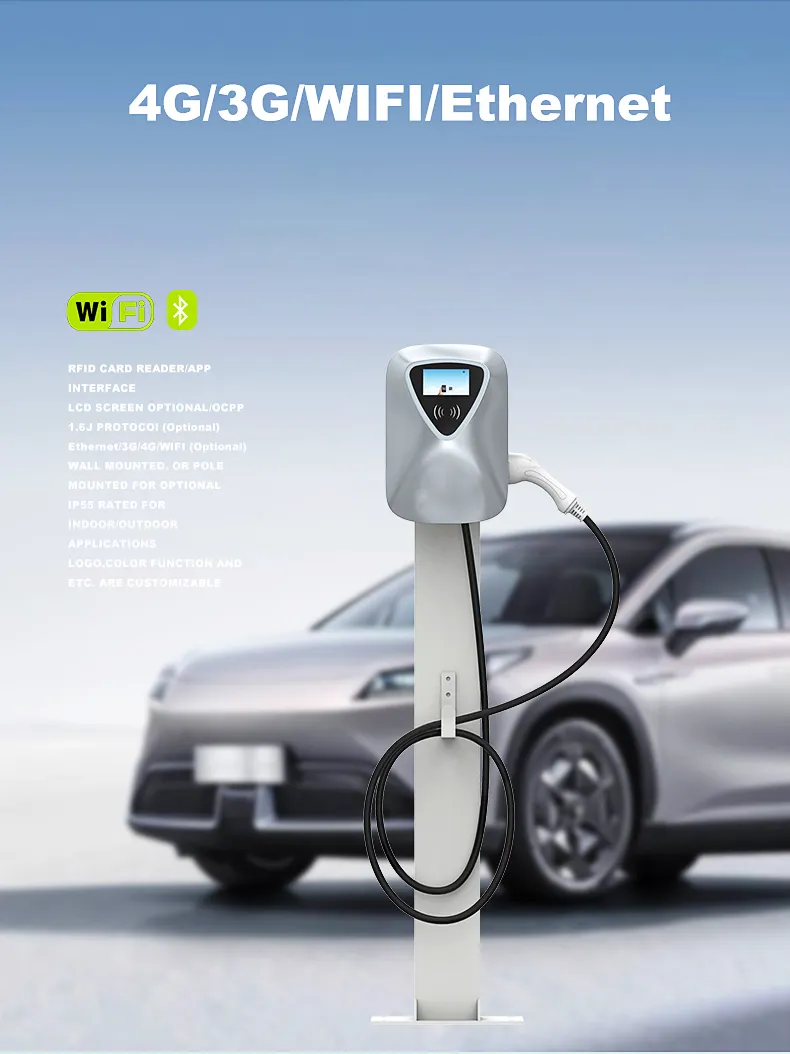

Product Display 1 Product Display 2 Product Display 3

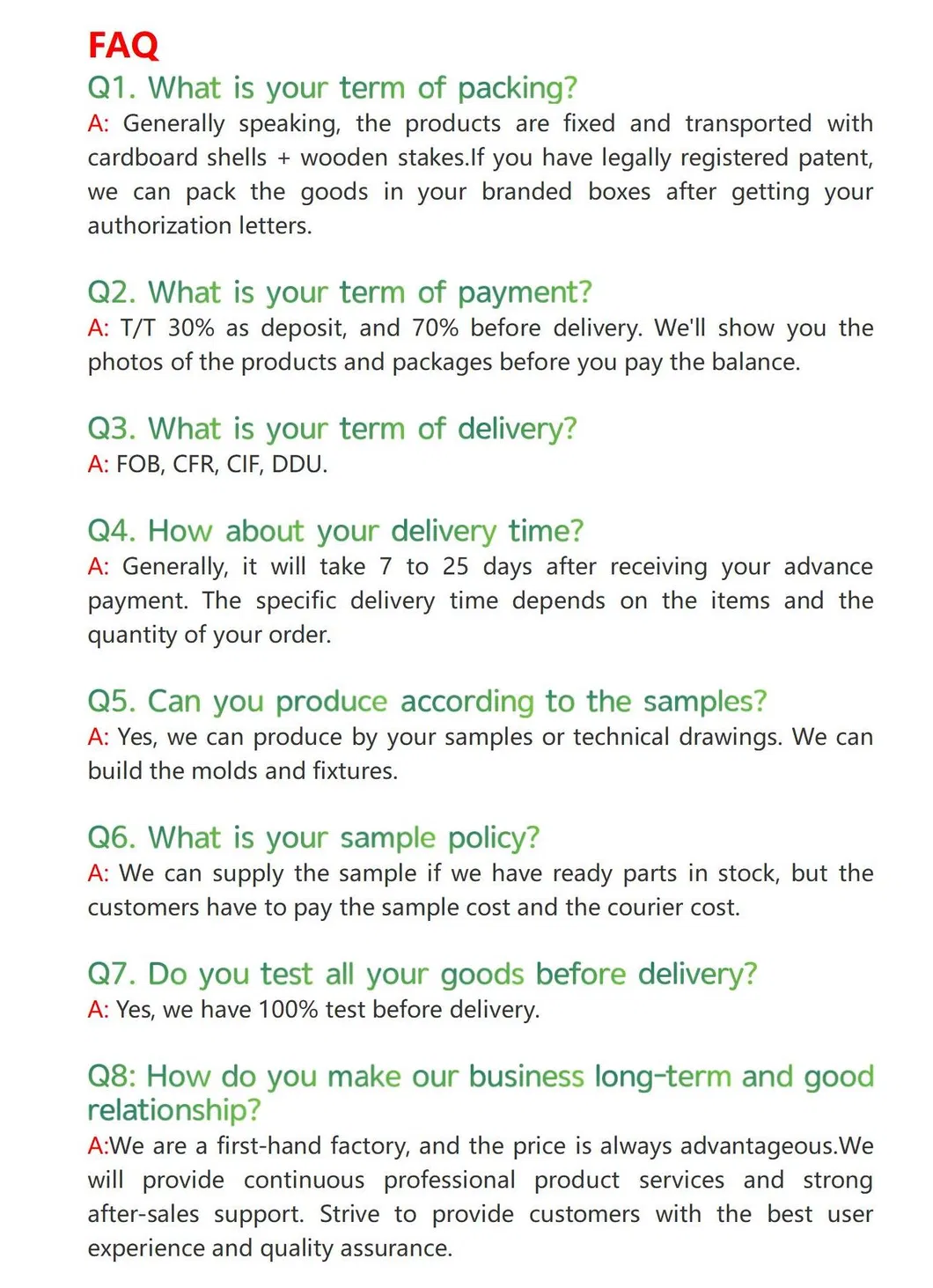

Installation View
Frequently Asked Questions
Q1: What are the available power output options?
A: This EV charger supports 3.5KW, 7KW, 11KW, and 22KW power outputs to accommodate different electric vehicle charging speeds.
Q2: Can this charger be installed outdoors?
A: Yes, the unit is IP54 rated, which provides protection against dust and water, making it suitable for both indoor and outdoor applications.
Q3: Which electric vehicle types are compatible with this charger?
A: It is compatible with Type-1 (SAE J1772), Type-2 (IEC 62196), and GB/T standards, covering a wide range of global EV models.
Q4: What safety protections are included?
A: The charger features 10 integrated protections including over-current, under-voltage, residual current, surge protection, leakage protection, and short circuit protection.
Q5: Does it support remote management?
A: Yes, it supports the OCPP 1.6J protocol (optional) and can connect via Ethernet, Wi-Fi, or 4G for remote monitoring and online data upgrades.
Q6: How can I authenticate and start a charging session?
A: Users can authenticate via a mobile application, QR code scanning, RFID card, or by entering a password on the 4.3-inch touch screen.
