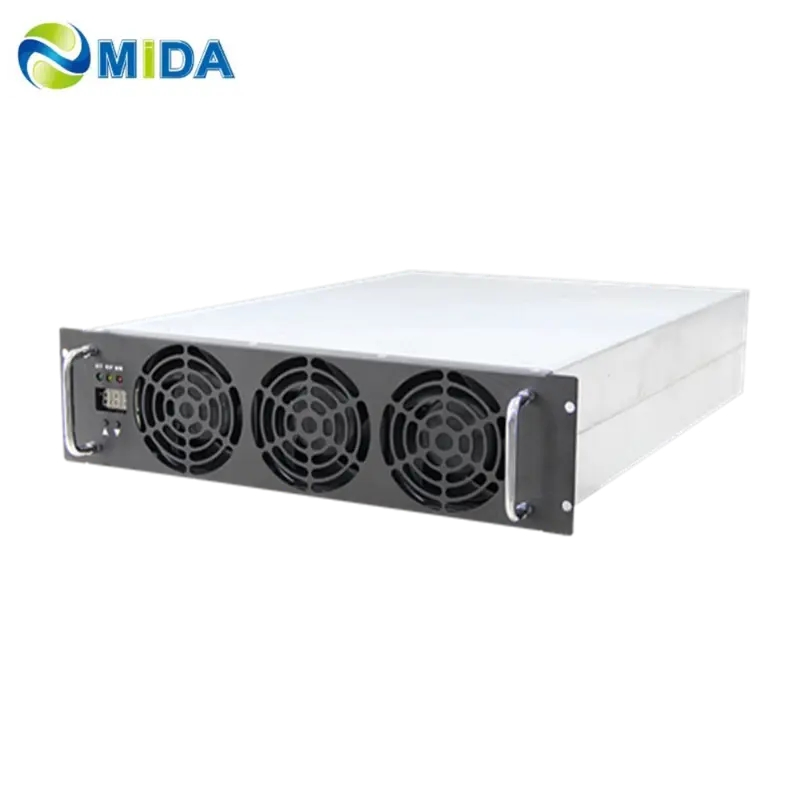

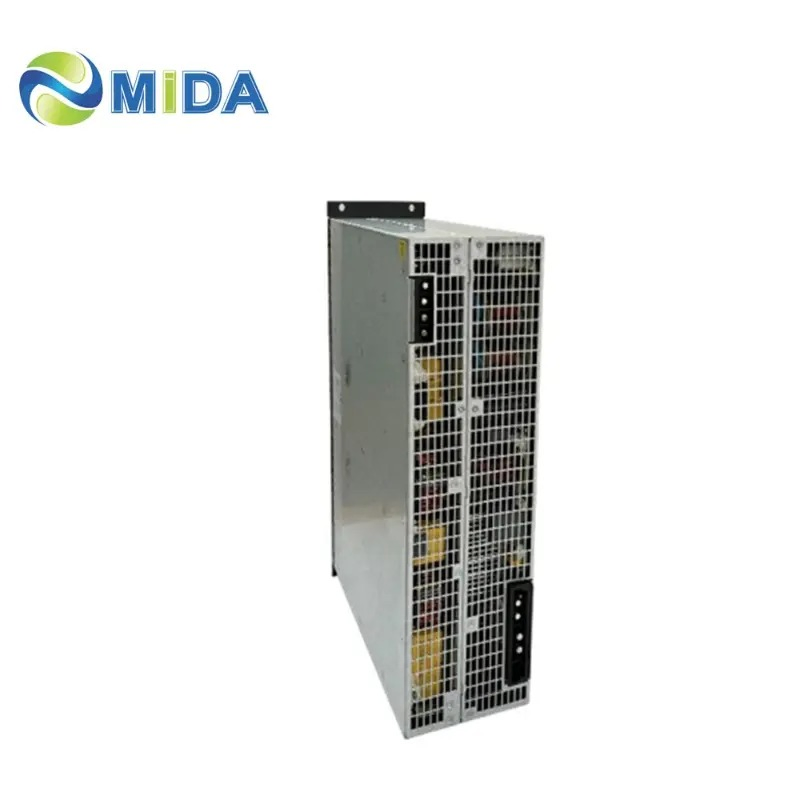

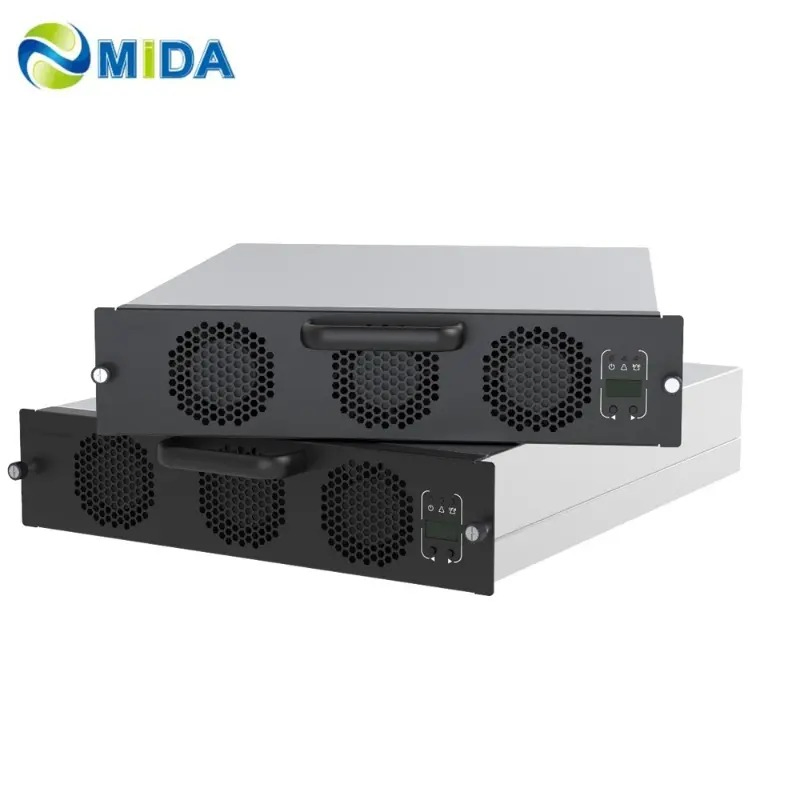

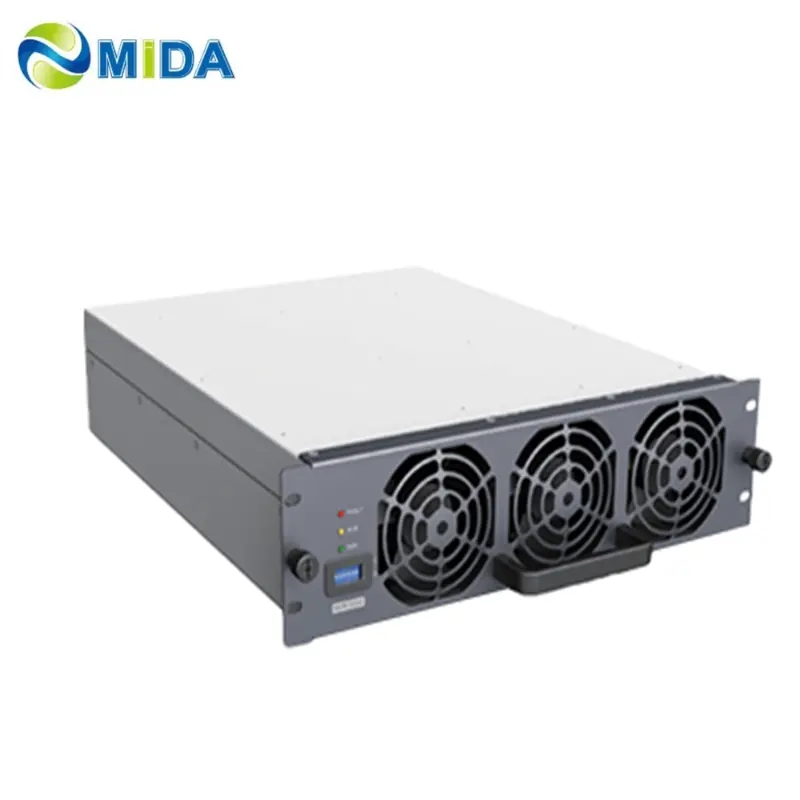

50kw EV Charger Module DC EV Power Modules for Fast EV Charging Station

1 / 5

50kw EV Charger Module DC EV Power Modules for Fast EV Charging Station

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Floor Type

Send Inquiry

Product Description

⚡

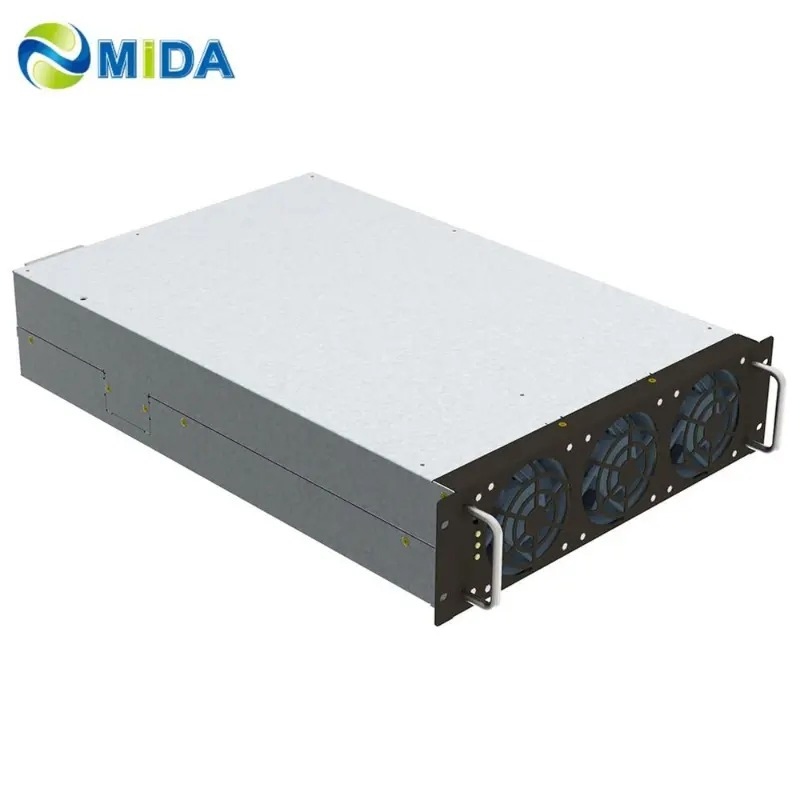

50kW EV Charger Module

DC EV Power Modules for Fast EV Charging Station

Basic Information

Model NO.

MD100020FEU

Location

Public Use

Input Rating

380VAC, Three Phase

Input Frequency

50±5Hz

Output Power

50kw

Output Voltage

50-1000VDC

Peak Efficiency

≥ 96%

Cooling Method

Fan Cooling

Safety

CE, TUV

Weight

≤ 15kg

Product Description

The 50kW EV Charger Module is a high-efficiency AC-DC power module designed to charge electric vehicles (EVs) using DC from a 3-phase supply. Strategically sized at 50kW to suit desired charger power classes with a wide output range enables charging from 50 to 1000VDC to match any EV battery.

🎯

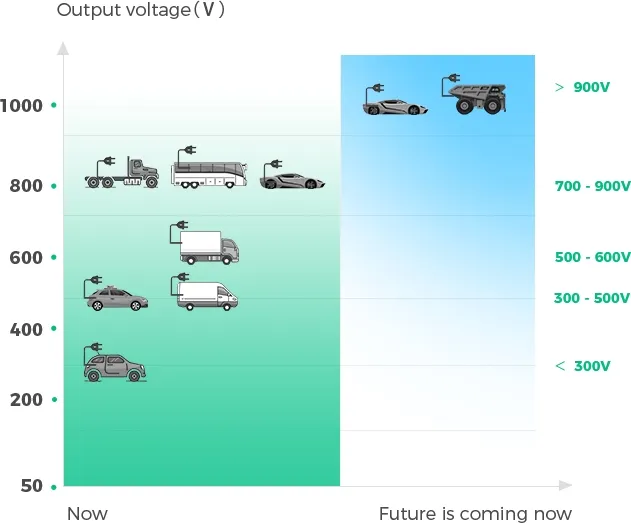

Ultra Wide Output Voltage Range:

50-1000V ultra-wide output range, meeting car types in the market and adapting to high voltage EVs in the future. Compatible with existing 200V-800V platforms and provides full power charging for development above 900V.

Technical Specifications

Feature		Specification Details
AC Input	Rated Voltage	380Vac, three phase, range 274-487Vac
	Frequency	50 ± 5Hz
	Power Factor	≥ 0.99
	Protection	OVP (490±10VaC), UVP (270±10VaC)
DC Output	Rated Power	50kW
	Voltage Range	50-1000Vdc
	Current Range	0.5-67A
	Peak Efficiency	≥96%
	Regulation	Voltage ≤±0.5%, Current ≤±1%
Mechanical	Dimension	437.5 * 300 * 84mm (LWH)
Mechanical	Protocol	CAN Communication

Application & Environment

The EV Power Module features an isolated design, supporting hot-plug with output reverse irrigation isolation to ensure personal safety and the safety of the EV Charger system. It supports CCS1, CCS2, CHAdeMO, GB/T, and energy storage systems.

Frequently Asked Questions

What is the output voltage range of this 50kW module?

The module provides an ultra-wide output range from 50VDC to 1000VDC, making it compatible with current and future high-voltage electric vehicles.

What is the peak efficiency of the power module?

The peak efficiency is greater than or equal to 96%, ensuring minimal energy loss during the DC fast charging process.

Does the module support hot-swapping?

Yes, the module is designed with an isolated structure that supports hot-plugging for easier maintenance and system scalability.

Which charging standards are compatible with this module?

It is compatible with major global standards including CCS1, CCS2, CHAdeMO, and GB/T, as well as energy storage systems.

What protection features are included?

The module includes comprehensive protection: Over Voltage (OVP), Over Current (OCP), Over Power (OPP), Over Temperature (OTP), Under Voltage (UVP), and Surge protection.

What is the operating temperature range?

It operates from -40°C to +75°C, with derating starting from 55°C, suitable for various environmental conditions.
