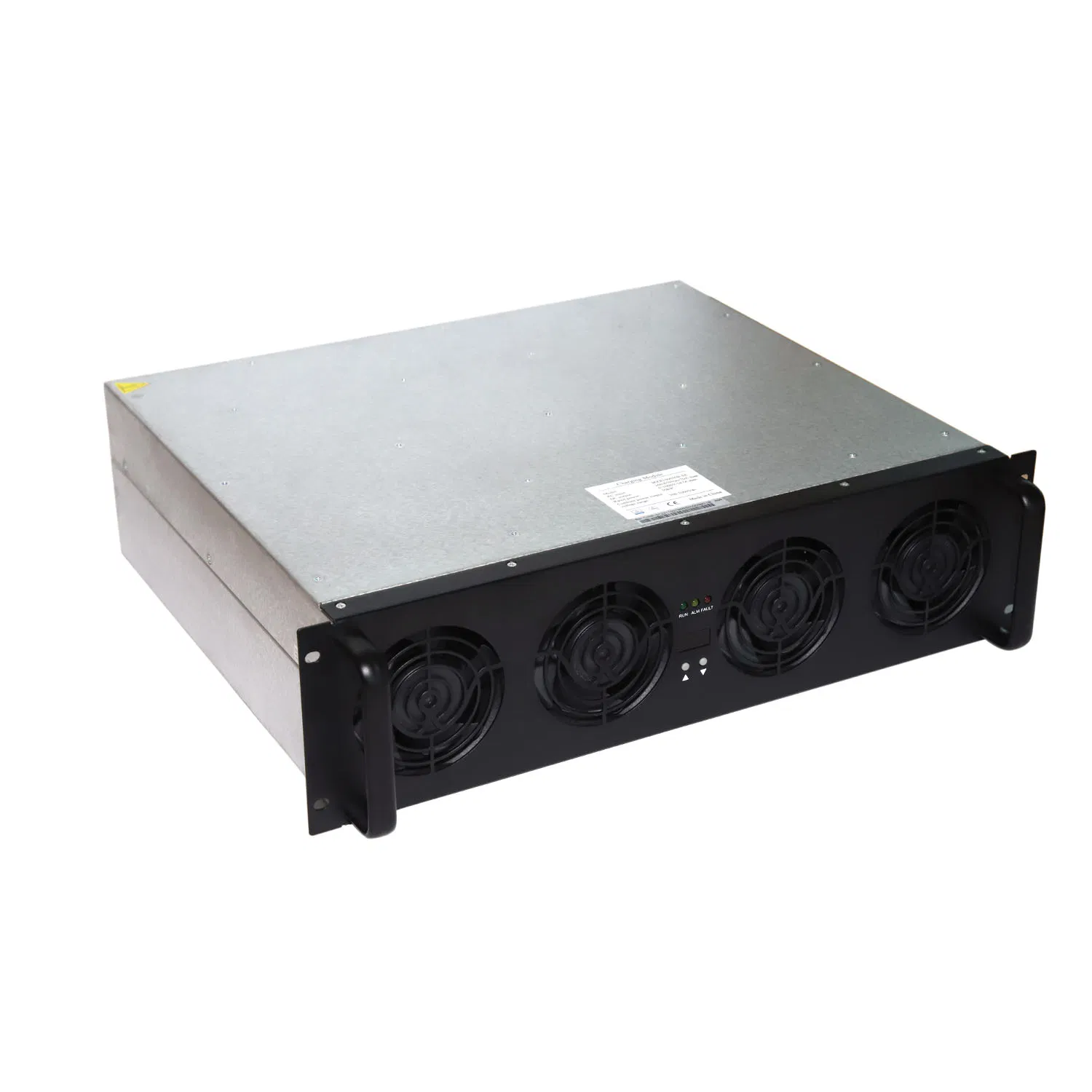

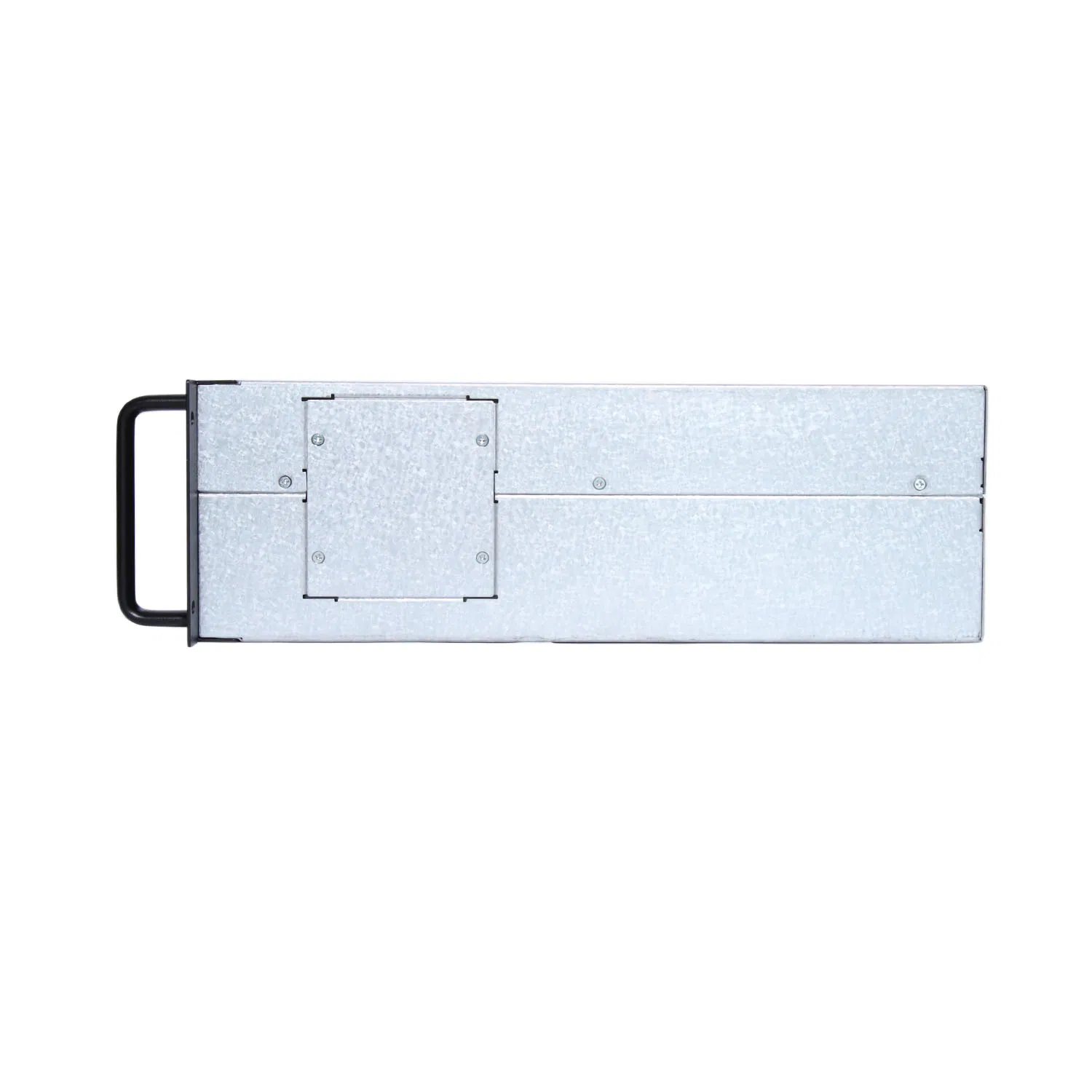

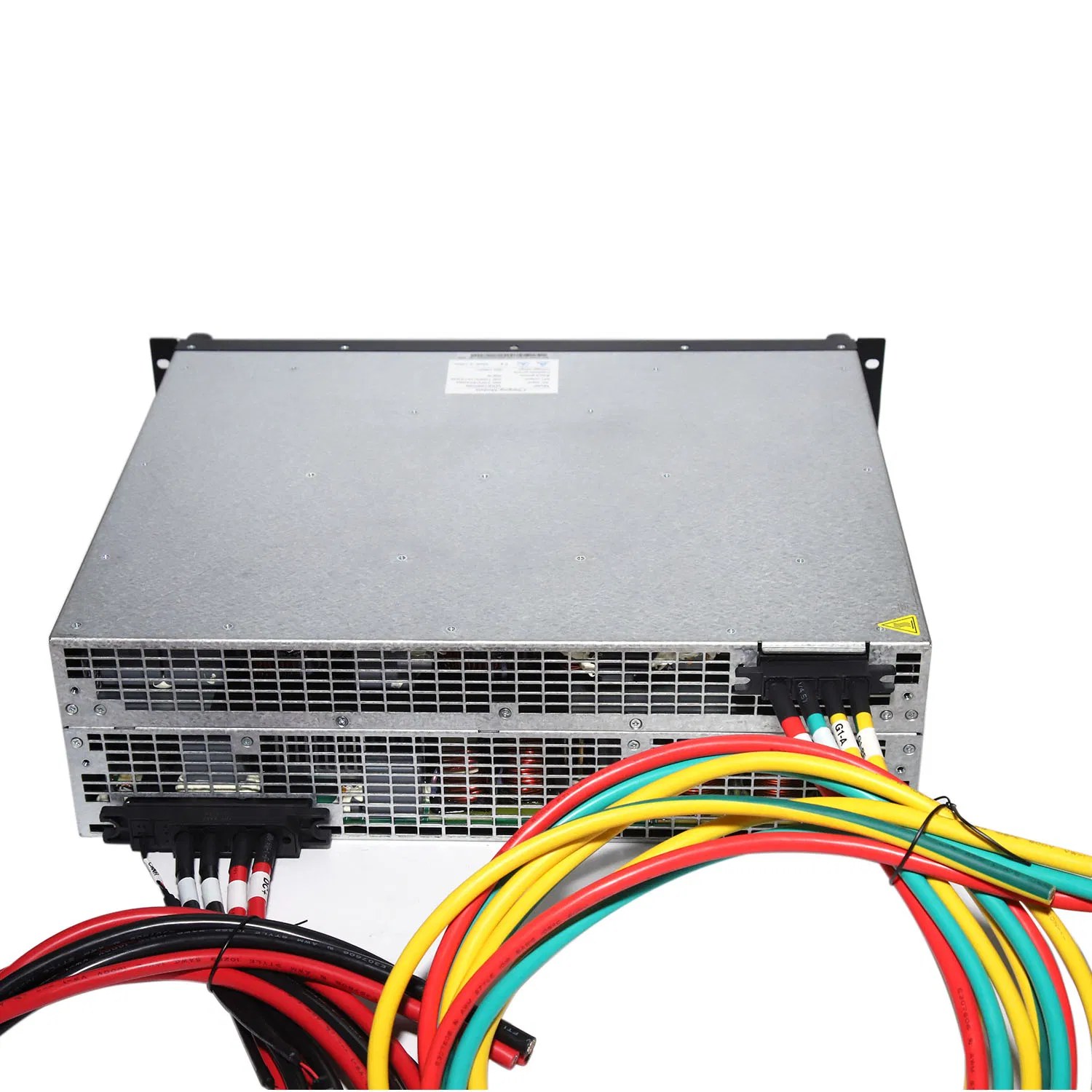

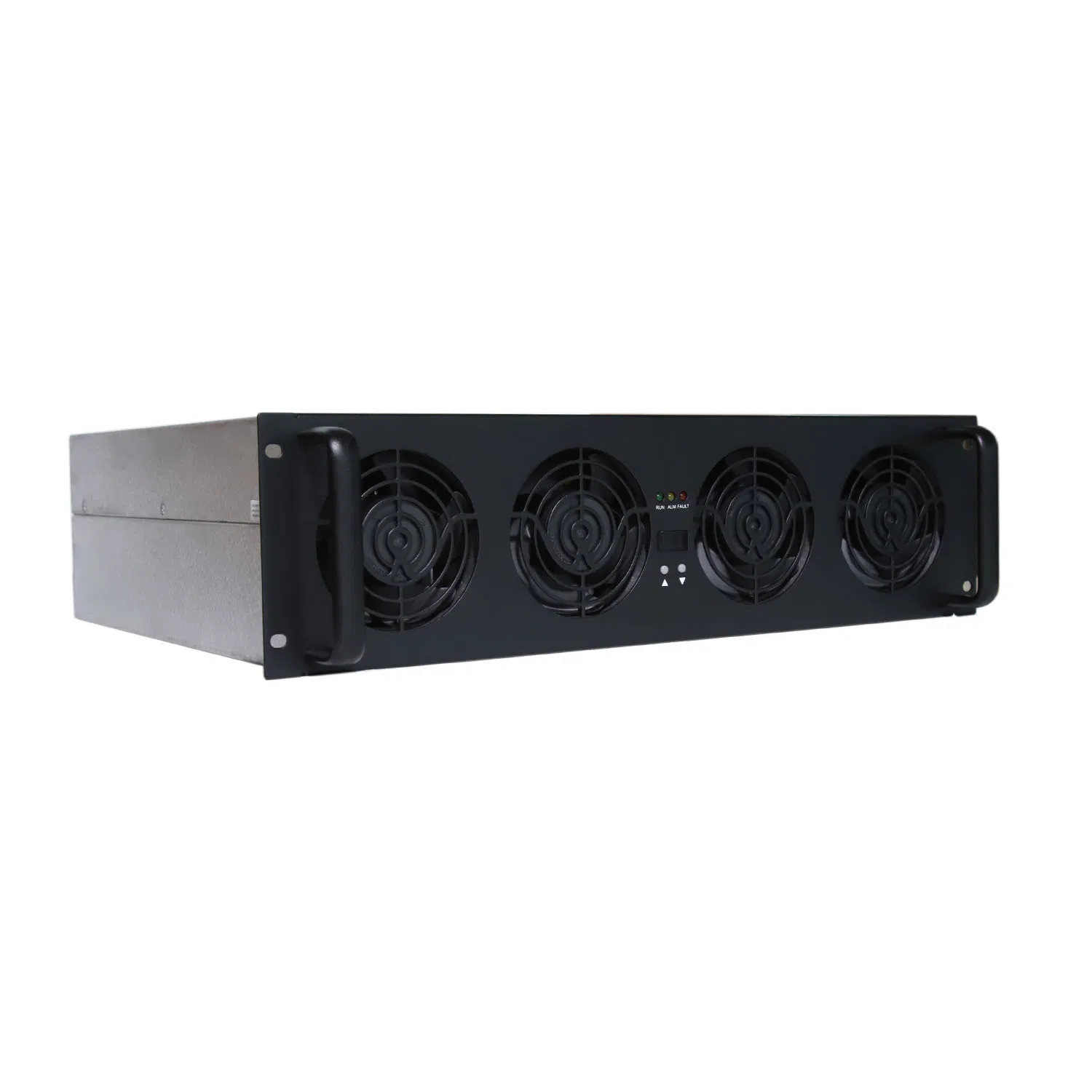

50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations

1 / 5

50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

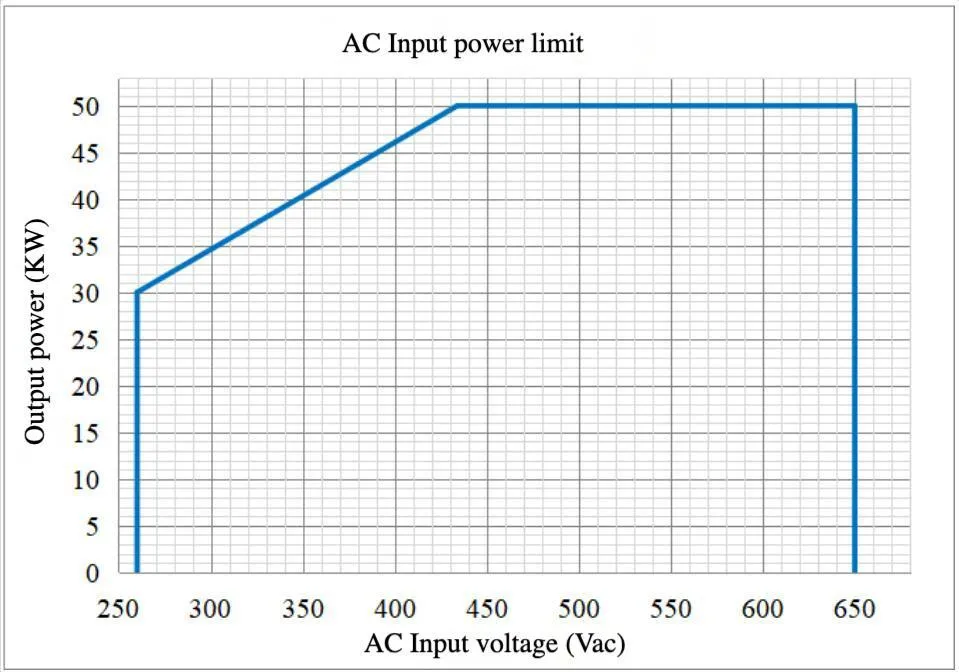

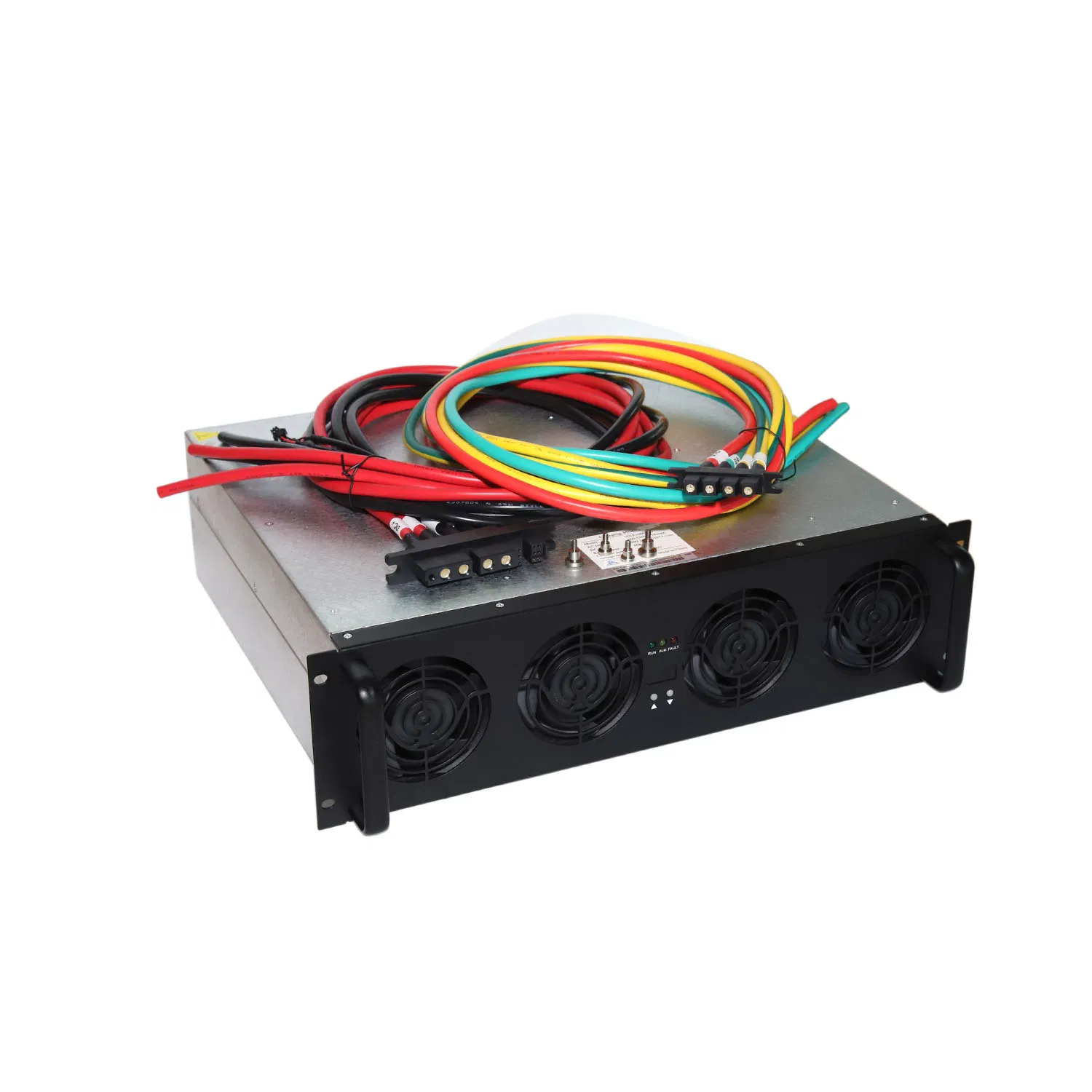

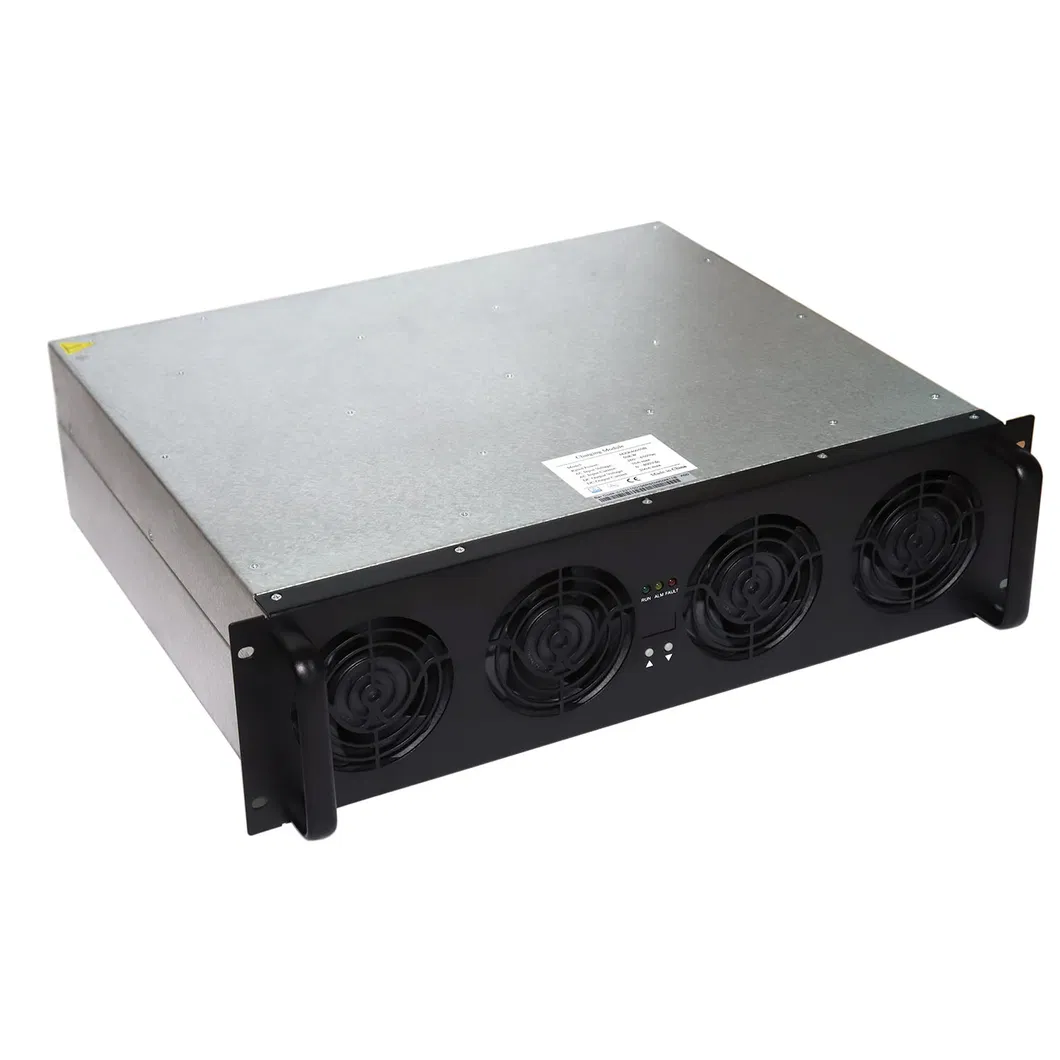

MXR40050B is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kw, and supports 260VAC~650VAC three-phase four-wire system (A/B/C +PE) input, the output voltage range is 0 ~ 400VDC, the maximum output current is 200 A, supports silent mode setting, in silent mode, the noise is less than 55dB.

Technical Specifications

Model NO.	MXR40050B
Input Voltage	260-650VAC
Input Current	<95A
Output Current	0-200A
Cooling Method	Forced Air Cooling
Certification	CE, ISO, TUV, RoHS
Warranty	12 Months
Communication Mode	Can Bus
Production Capacity	10000pieces/Year

Key Features

✔ Low noise: support silent mode setting (55dB, 60dB)

✔ High protection: isolated sensitive components

✔ Ultra-high efficiency: >97%

✔ Ultra-high power density (40W/in³)

✔ Ultra-high reliability (MTBF>1,000,000h)

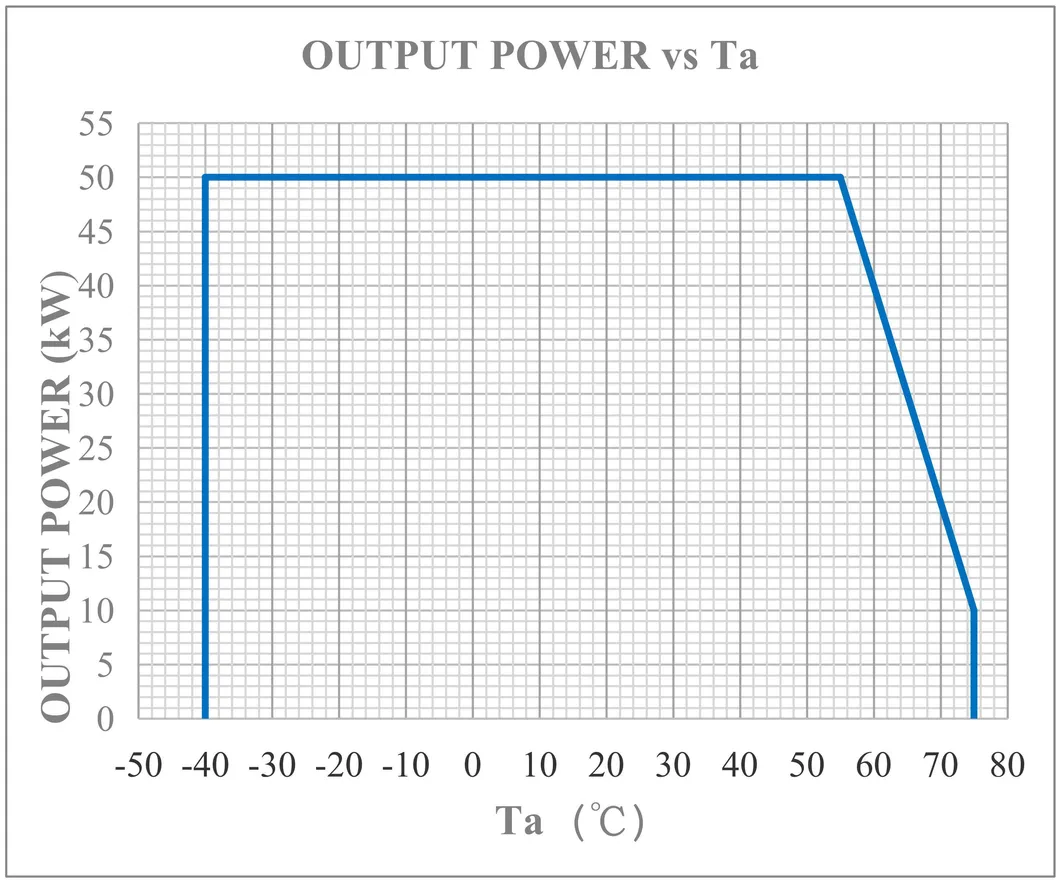

✔ Wide working temperature: -40ºC ~ +75ºC

✔ Support hot swap function

✔ Perfect intelligent protection function

✔ Output back-feed isolation

Product Parameters

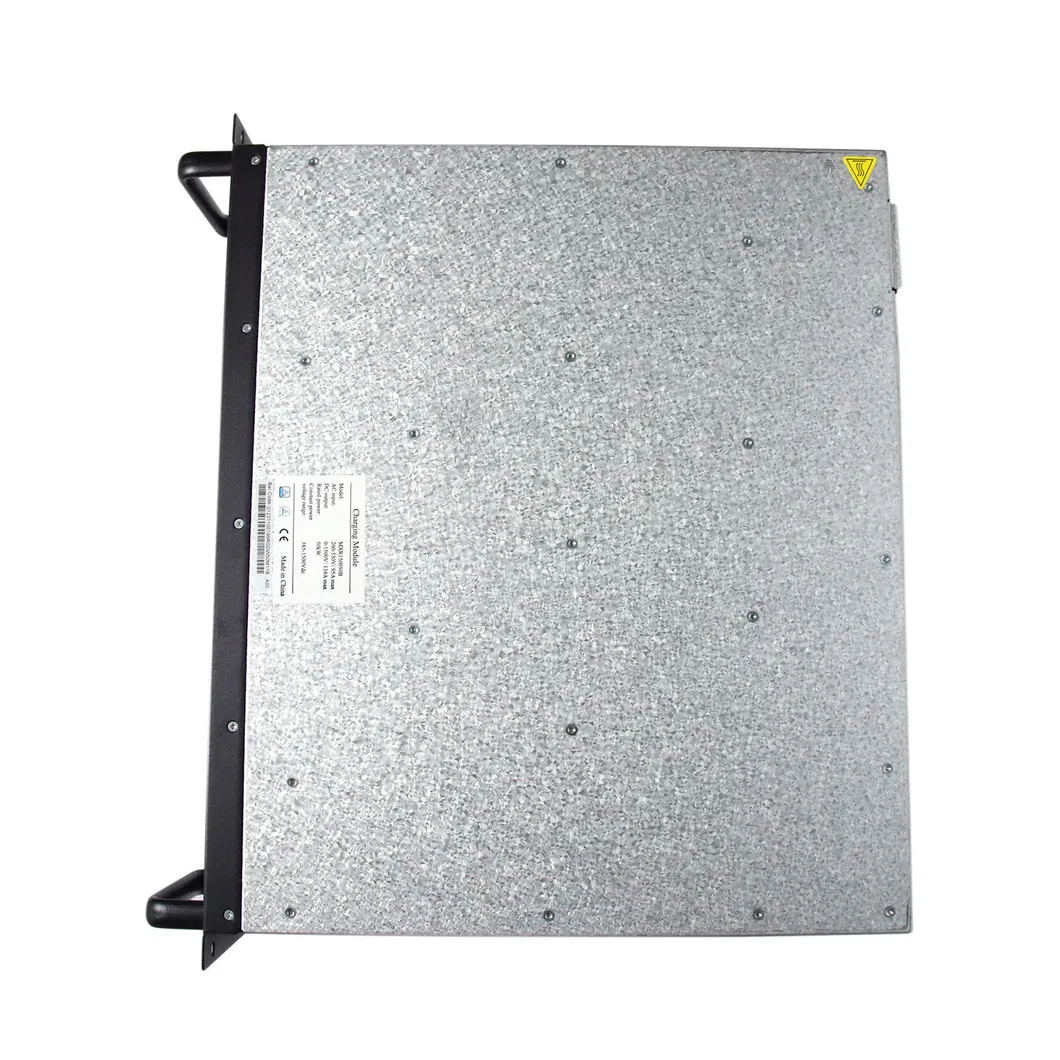

Dimensions	125mm(H)440mm(W)380mm(D)
Power factor	≥0.99

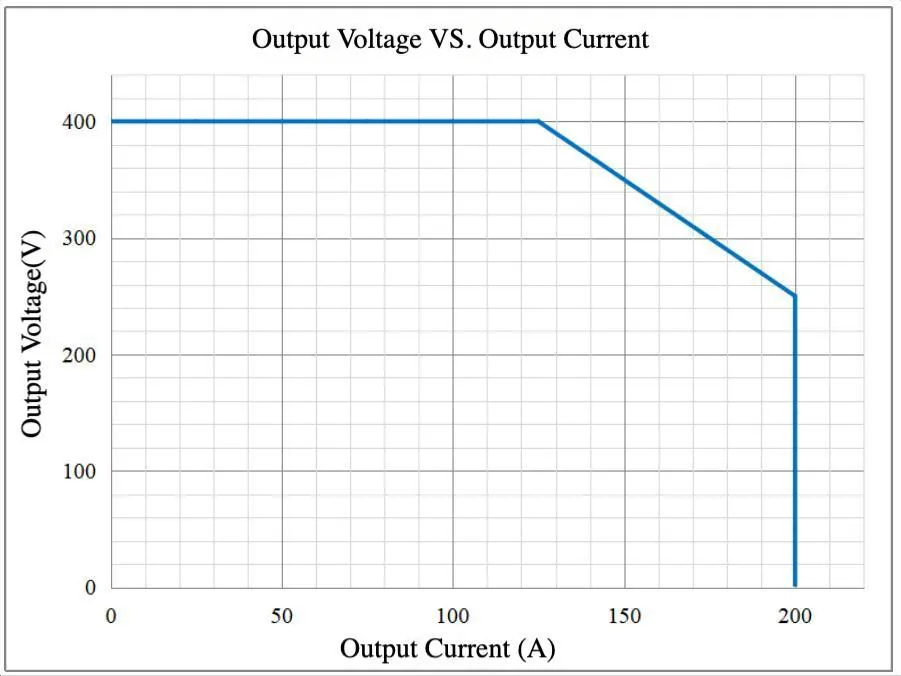

Output power	50kw @ output voltage ≥300Vdc
Voltage range	0Vdc-400Vdc (Default: 200Vdc)
CE/Dekra/EMC	IEC61851-21-2:2018; EN61851-21-2-2017

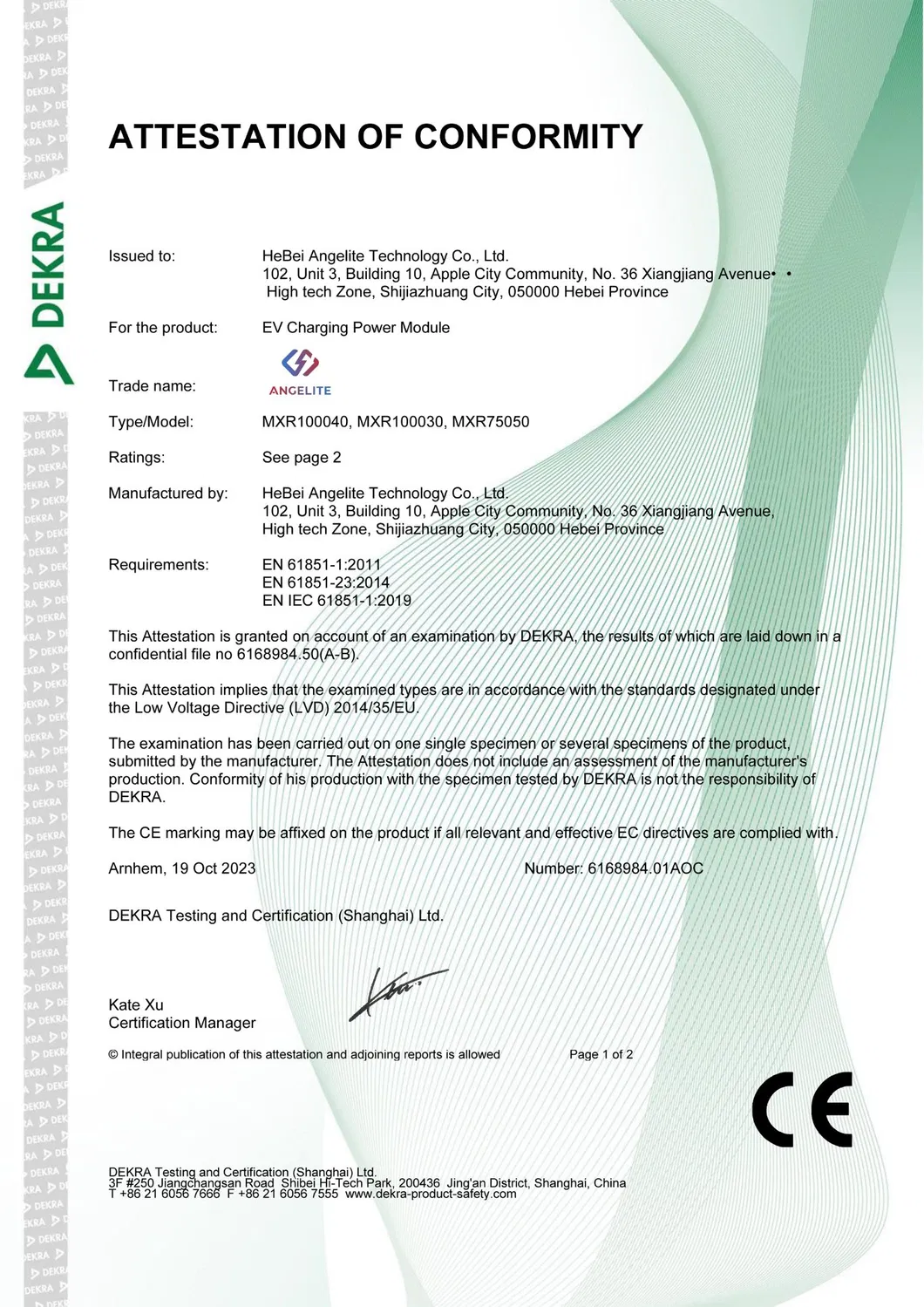

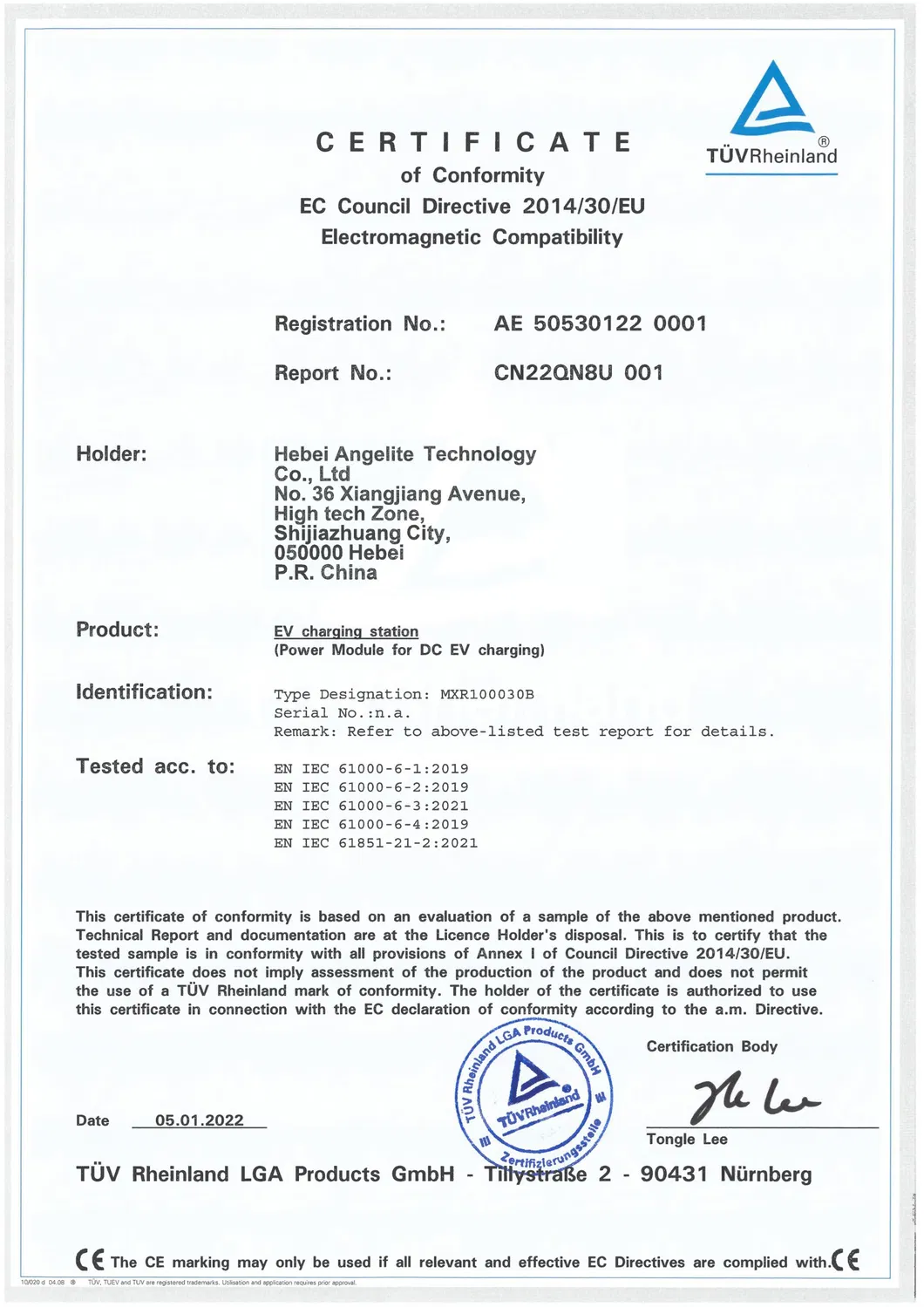

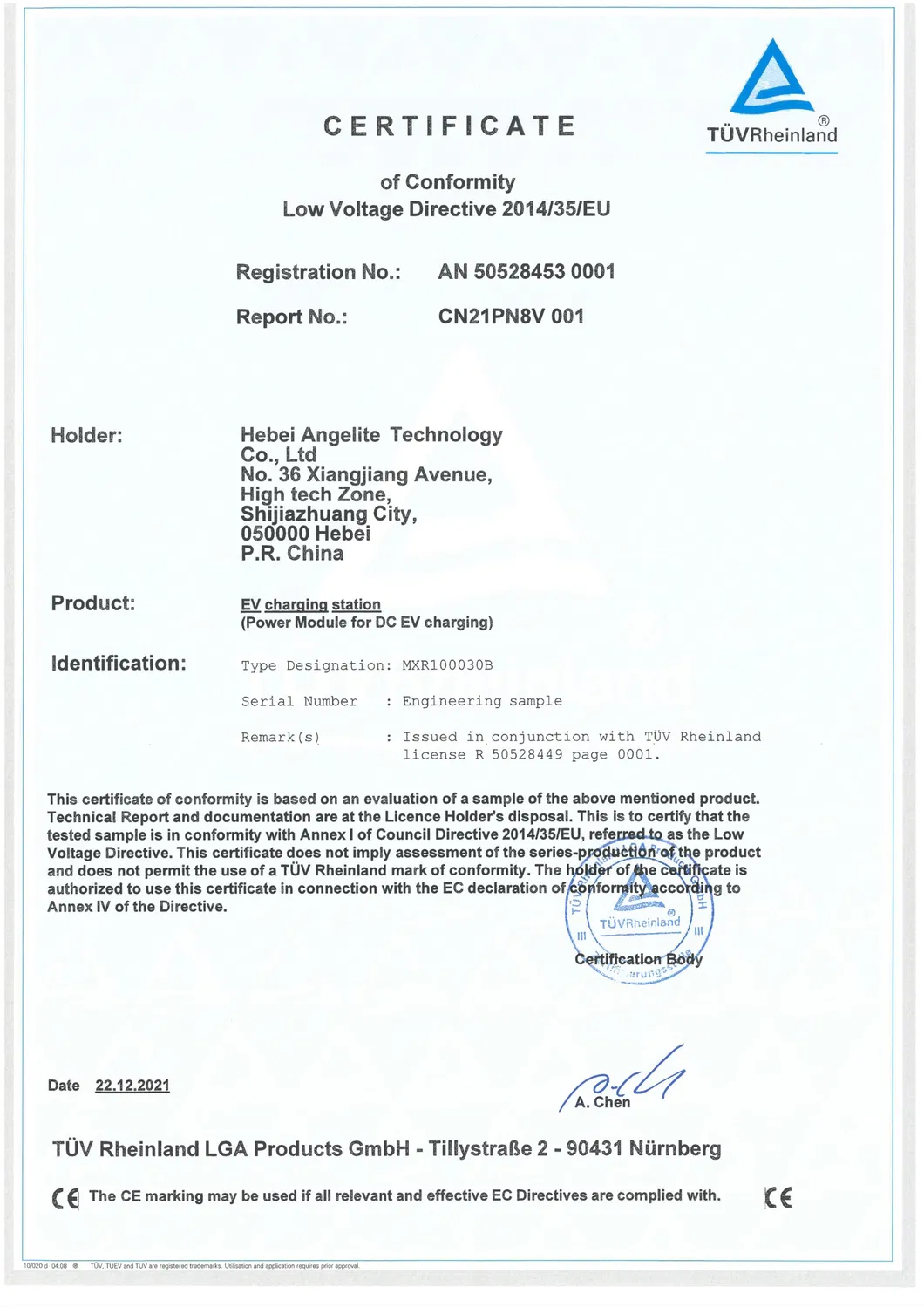

Certifications

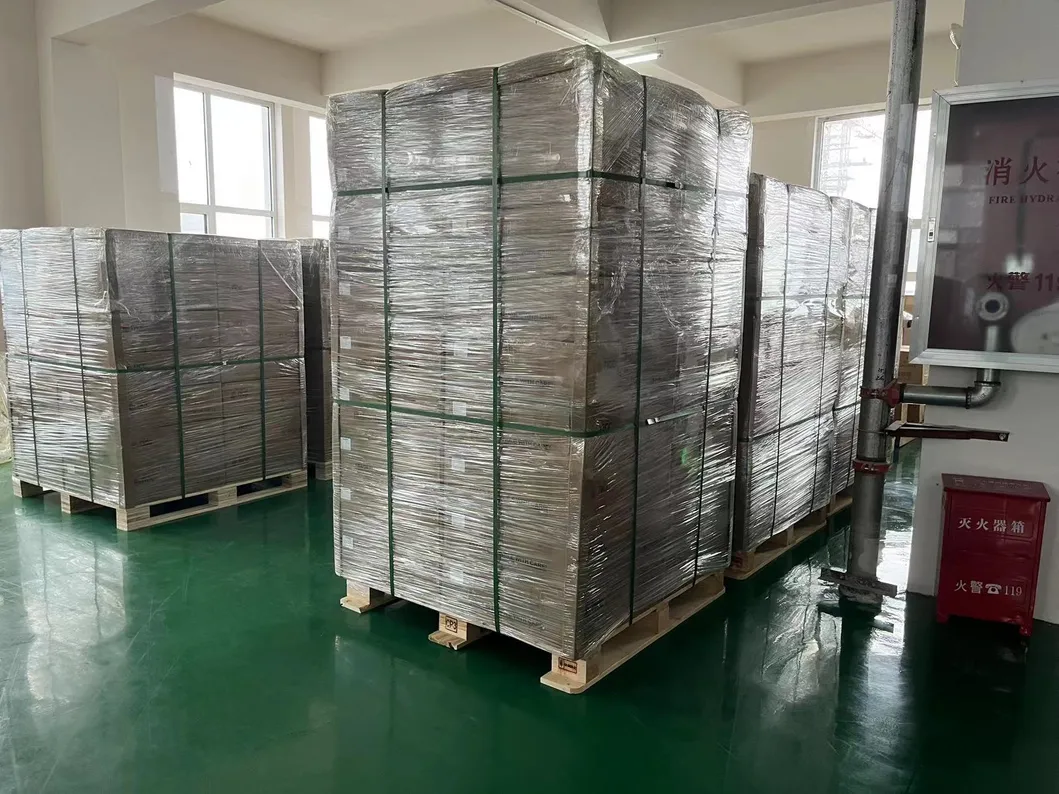

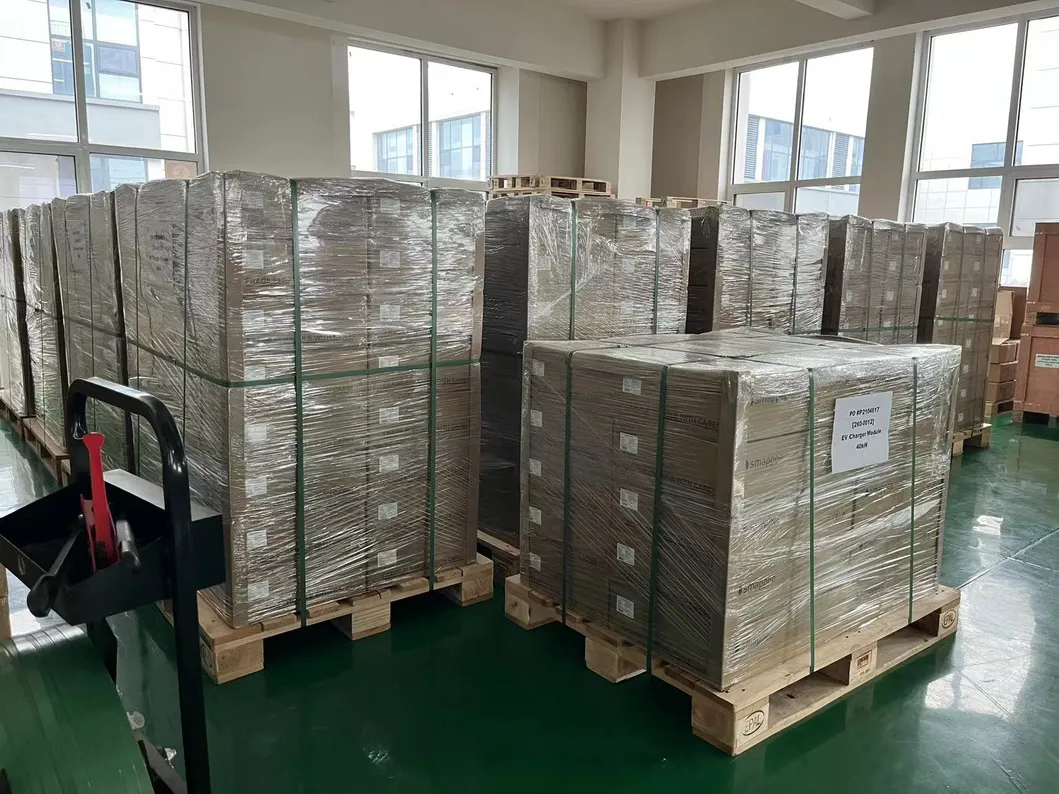

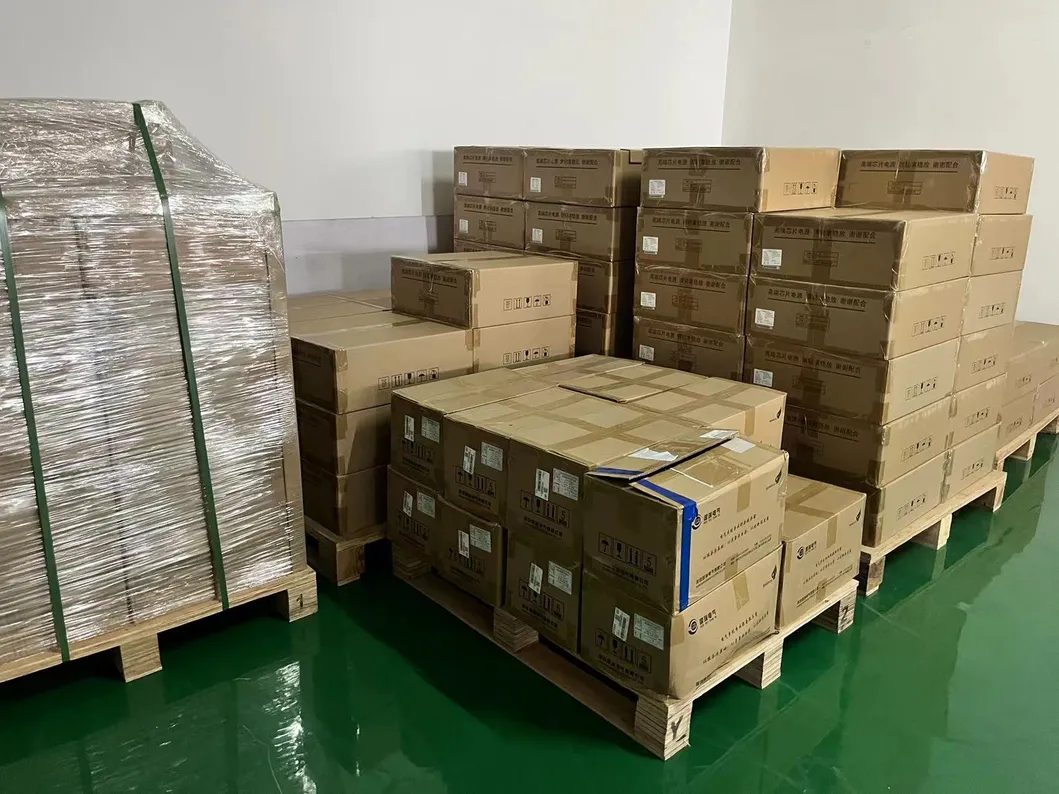

Packaging & Shipping

Package Size	57.00cm * 57.00cm * 58.00cm
Gross Weight	40.000kg
Packaging Type	Wooden Carton or Kraft Carton

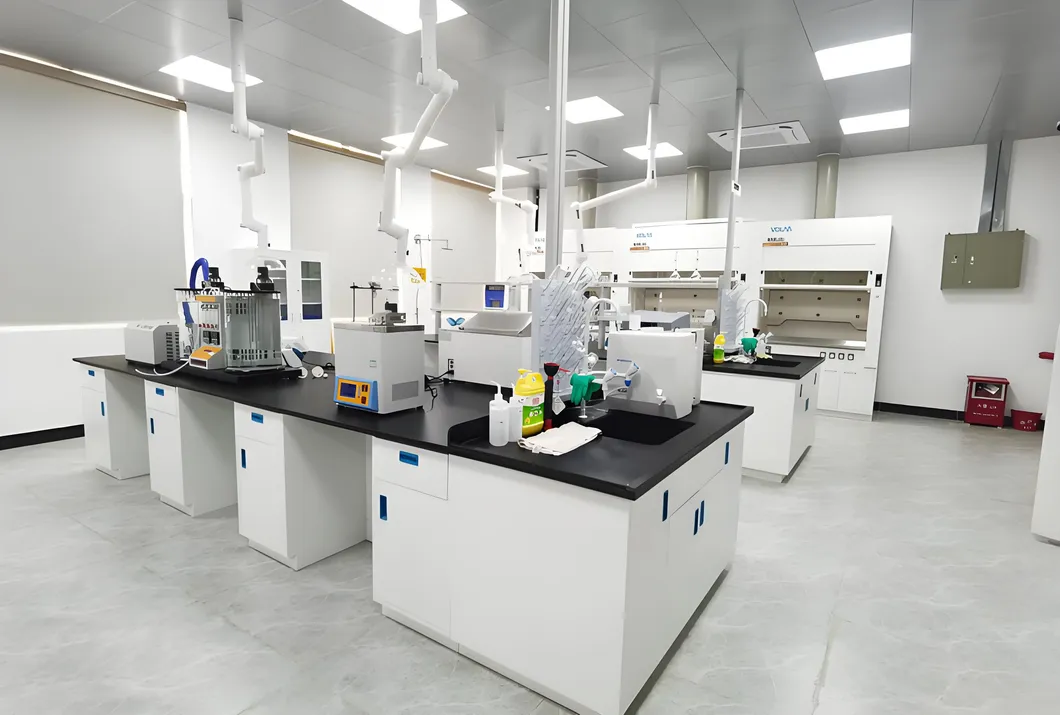

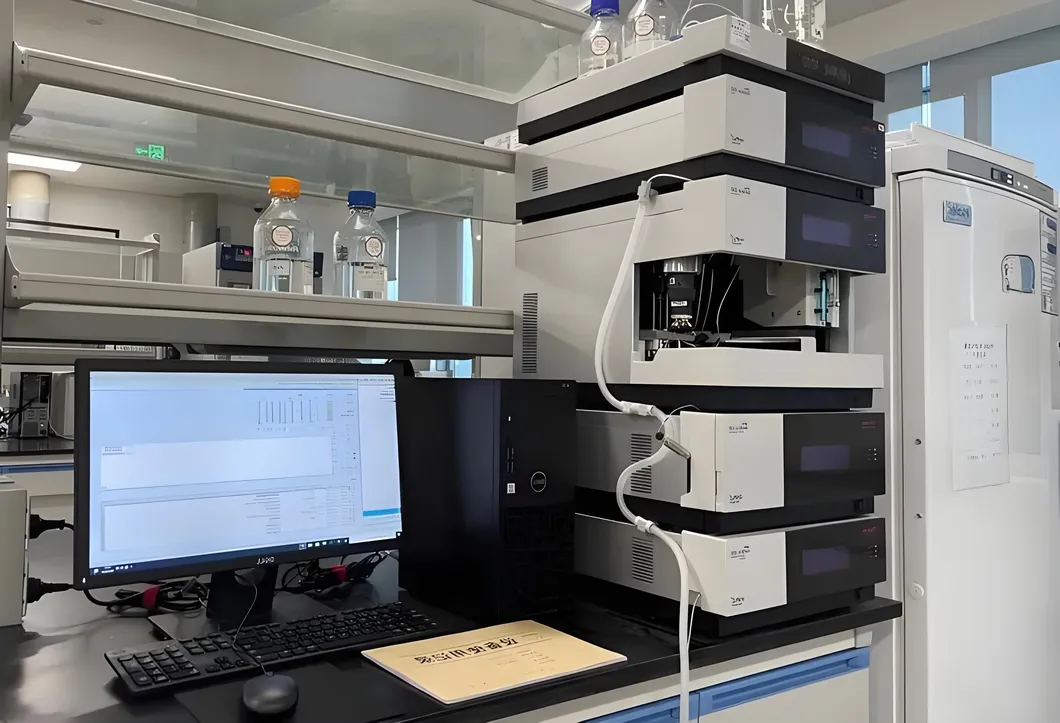

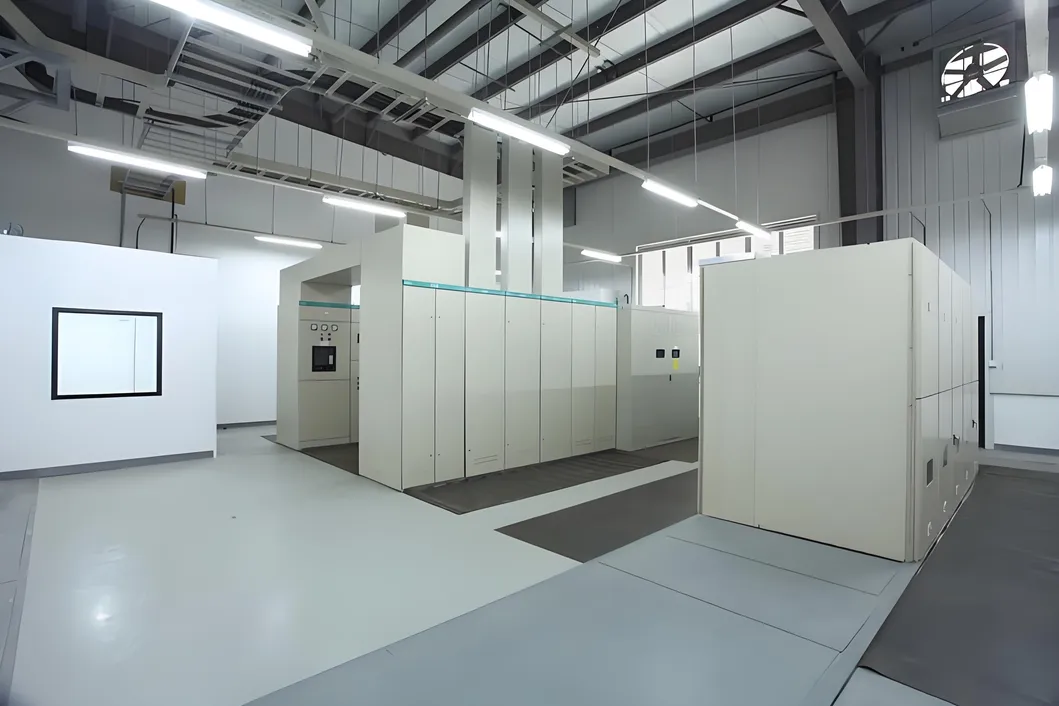

Production Profile

The focus is on the research and development, production and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers. Based on owning independent intellectual property rights, the facility insists on independent research and development and technological innovation in the course of operation, providing customers with equipment supporting and services.

Currently, the products are widely used in automotive, electric power, railway, metallurgy, communications and other fields, and performance cases are spread all over the country and around the world.
