📋 Product Description

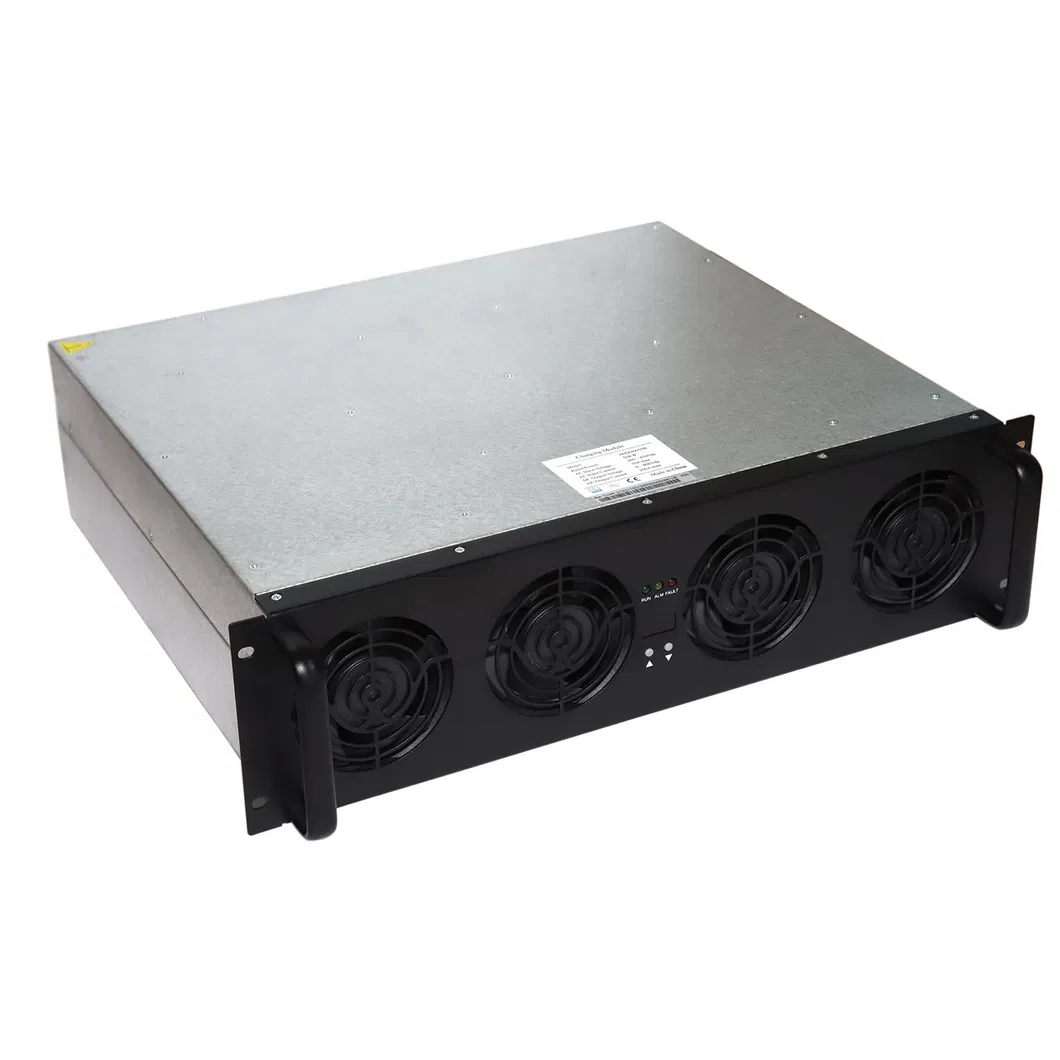

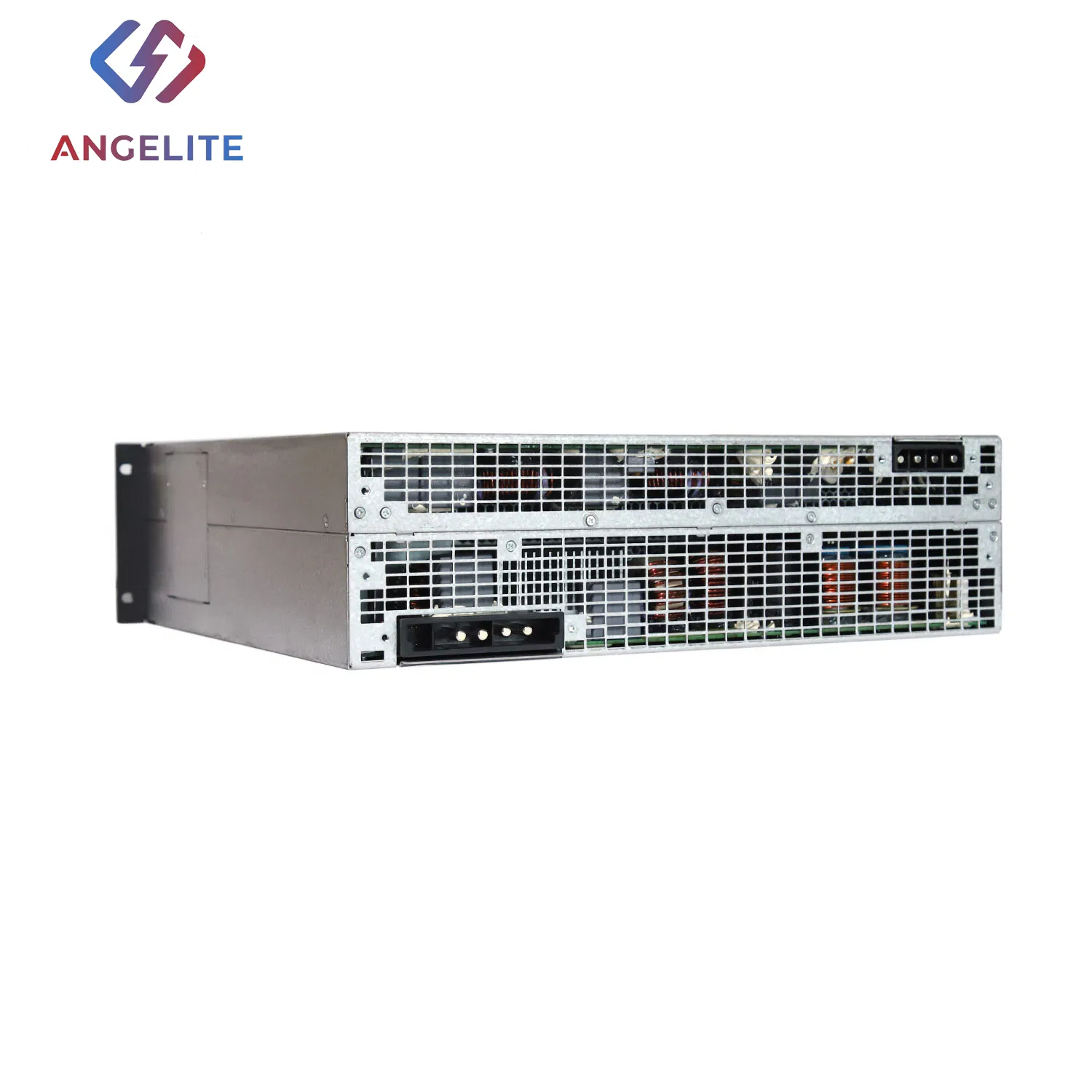

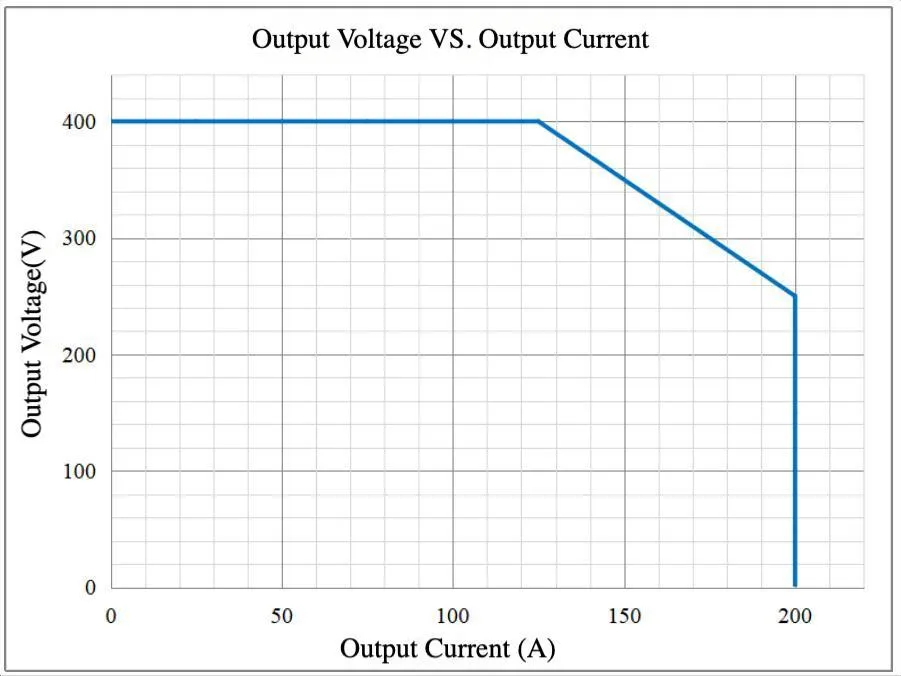

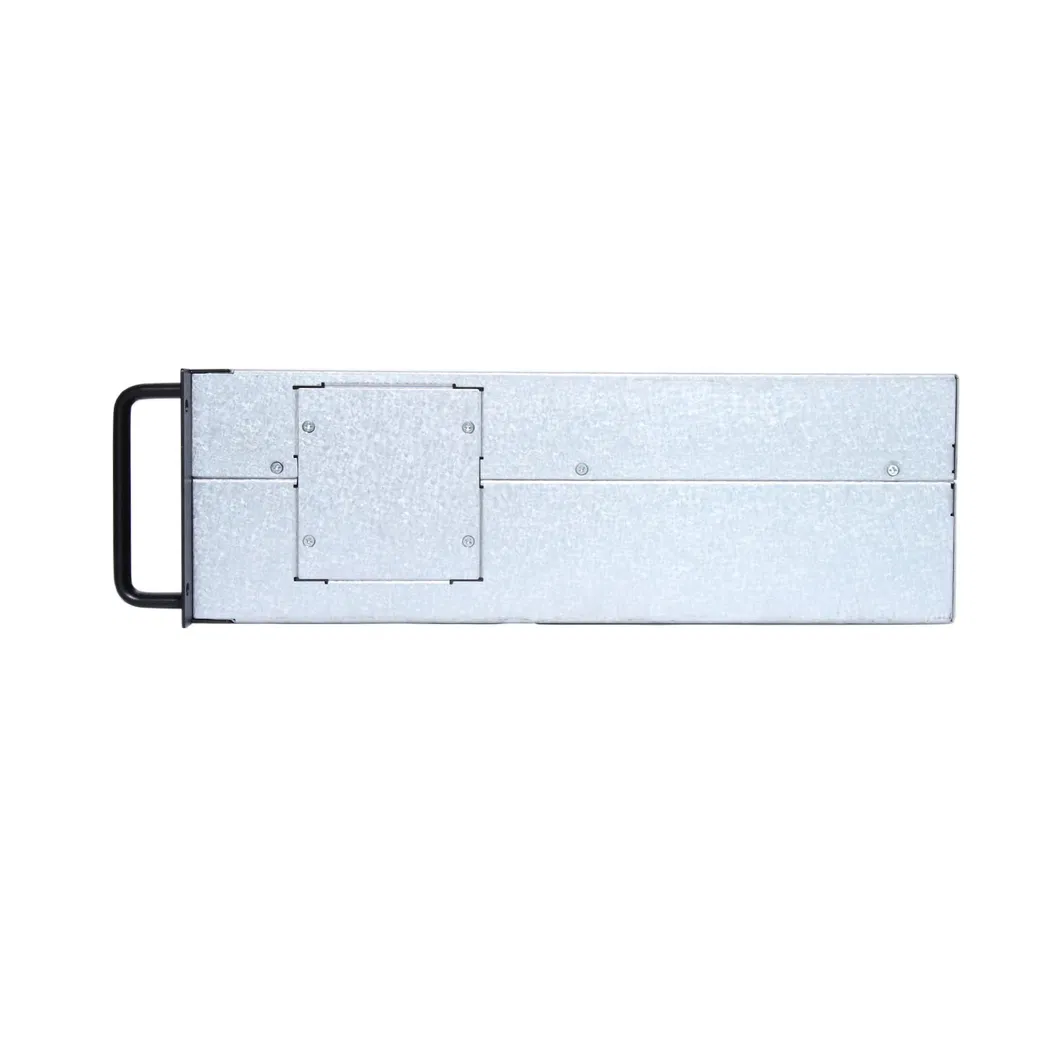

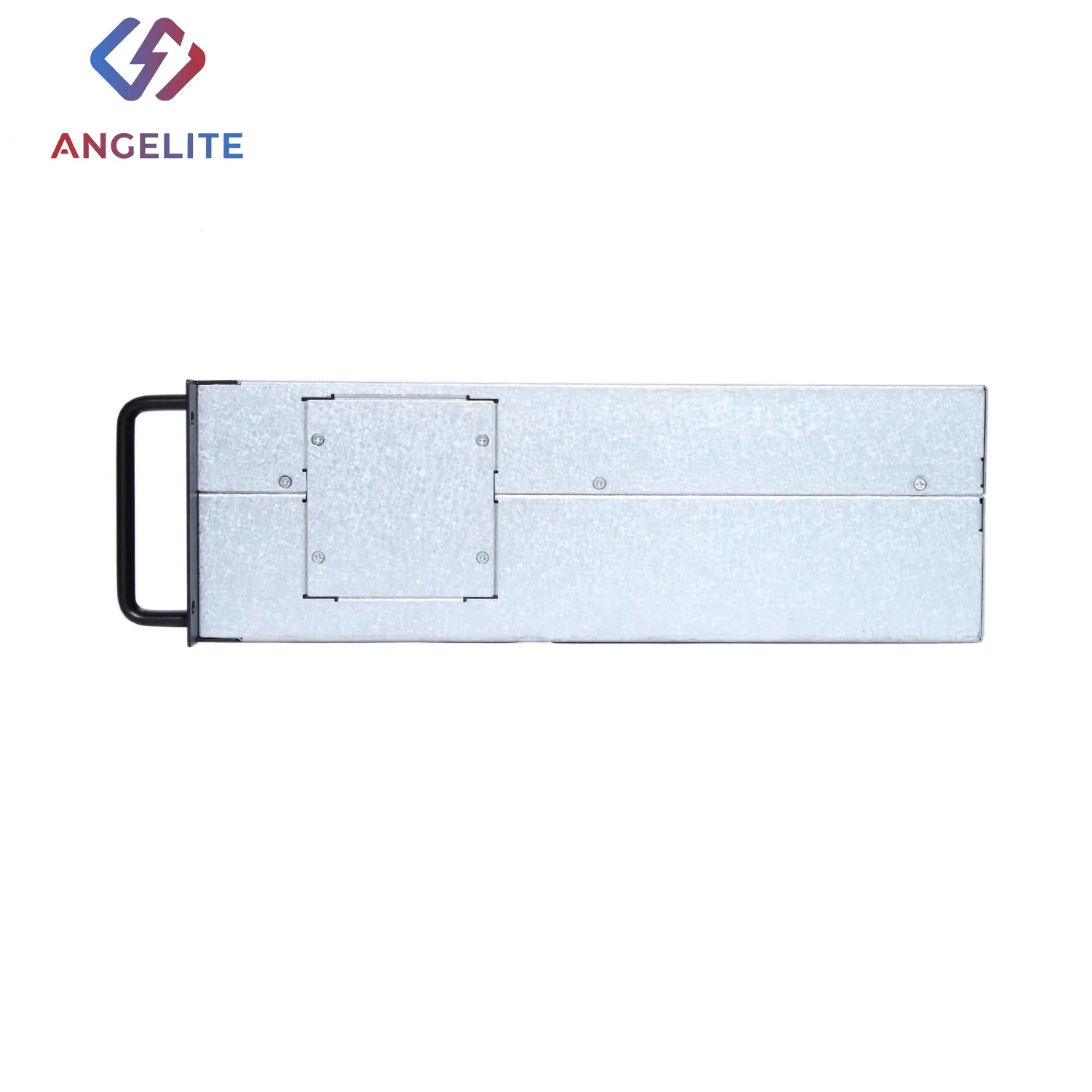

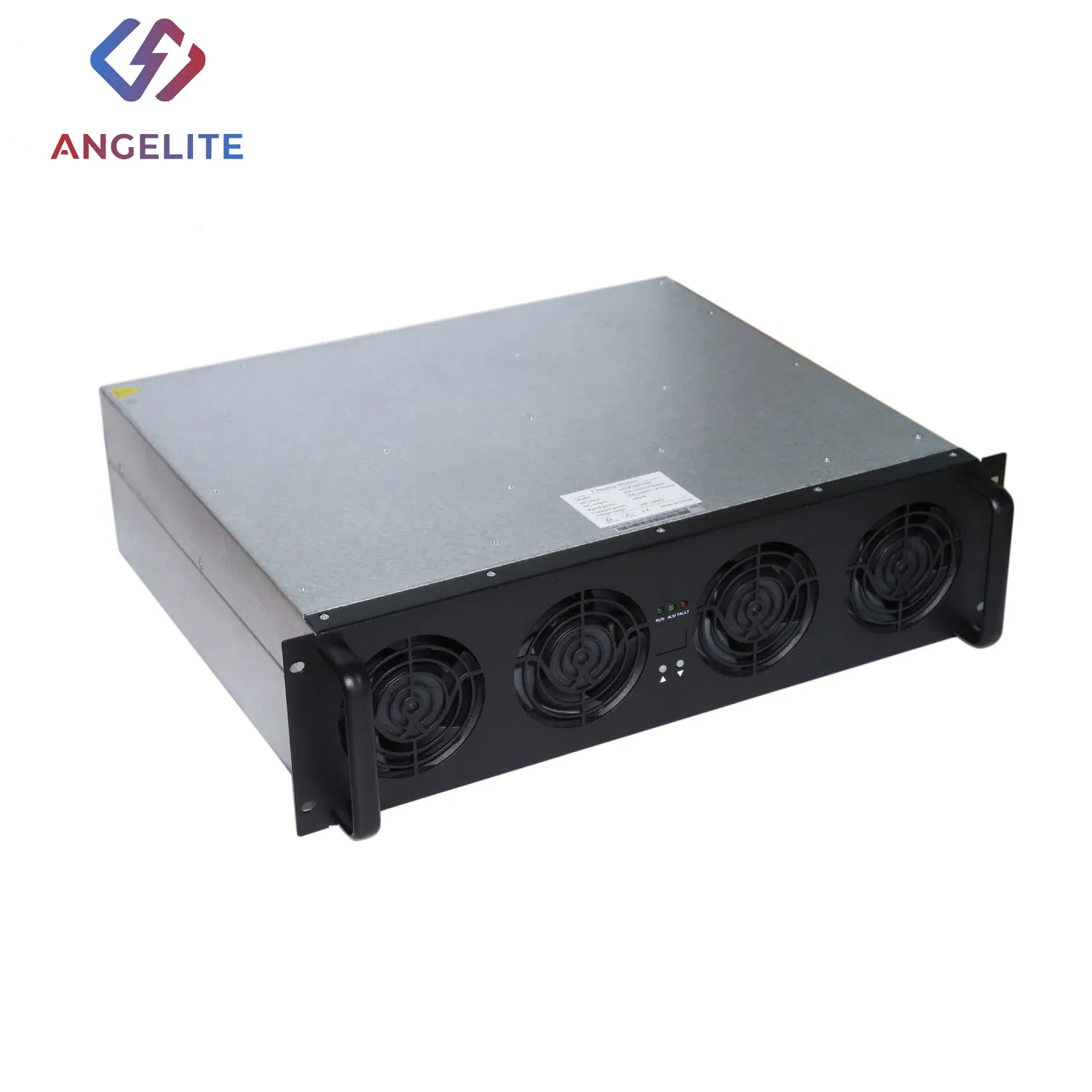

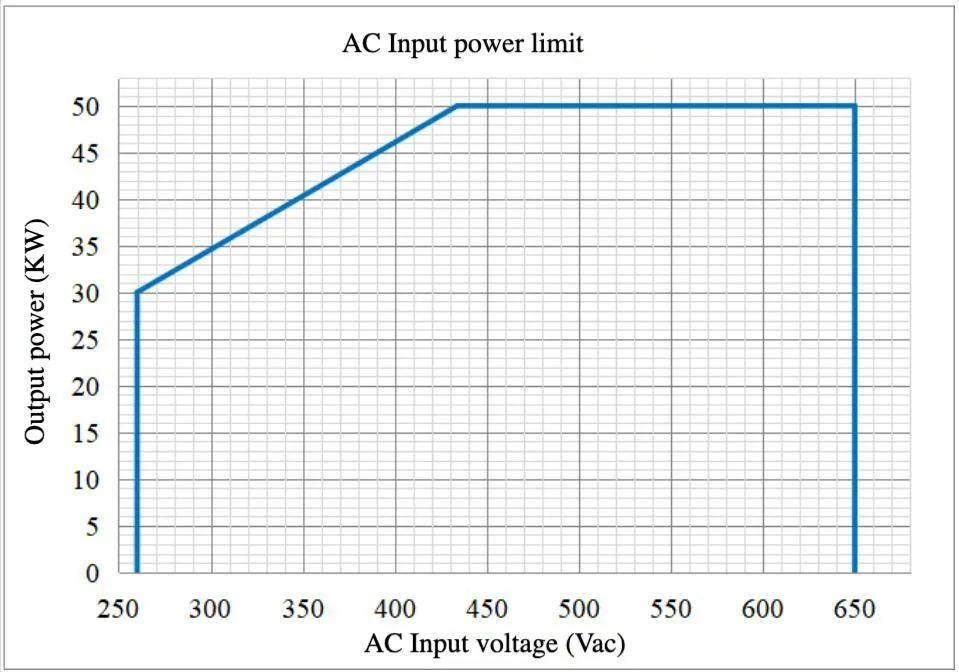

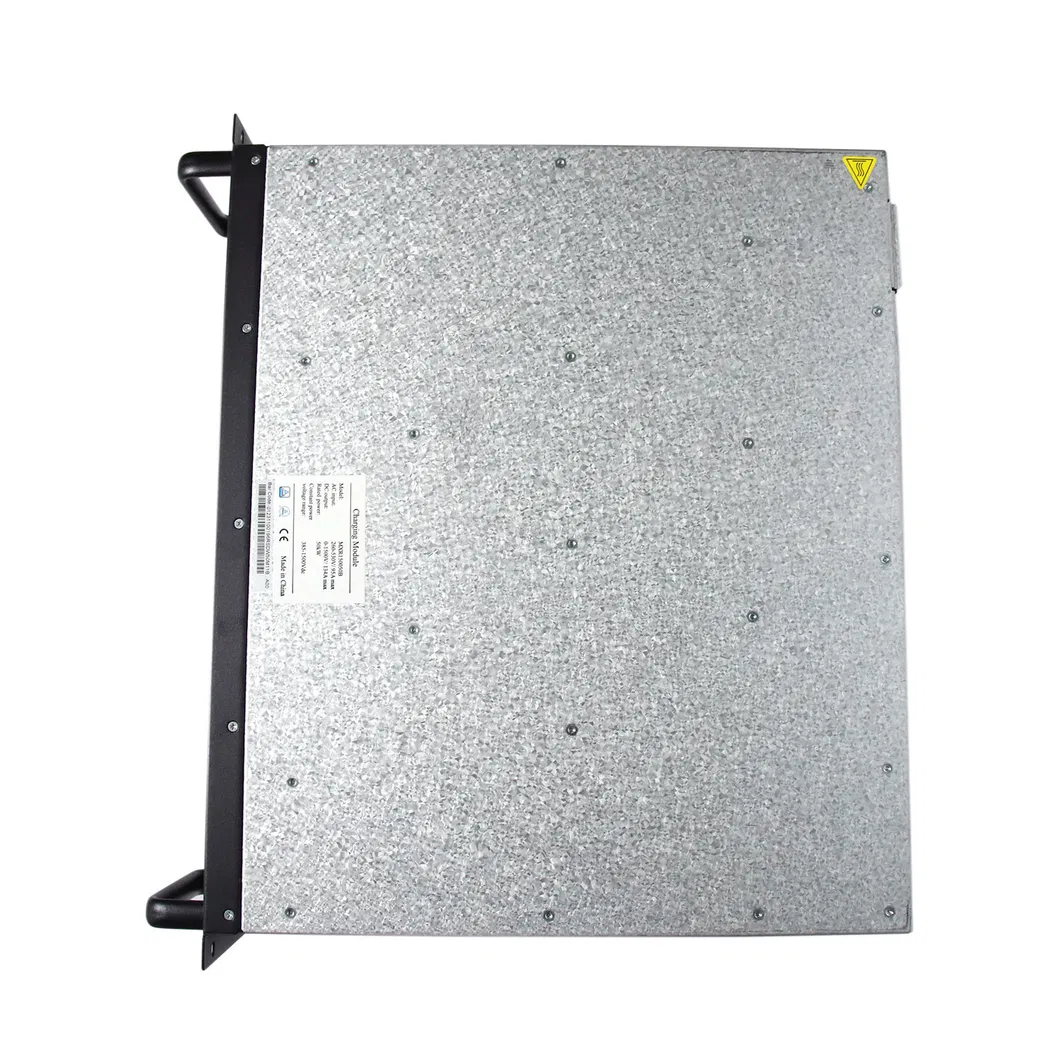

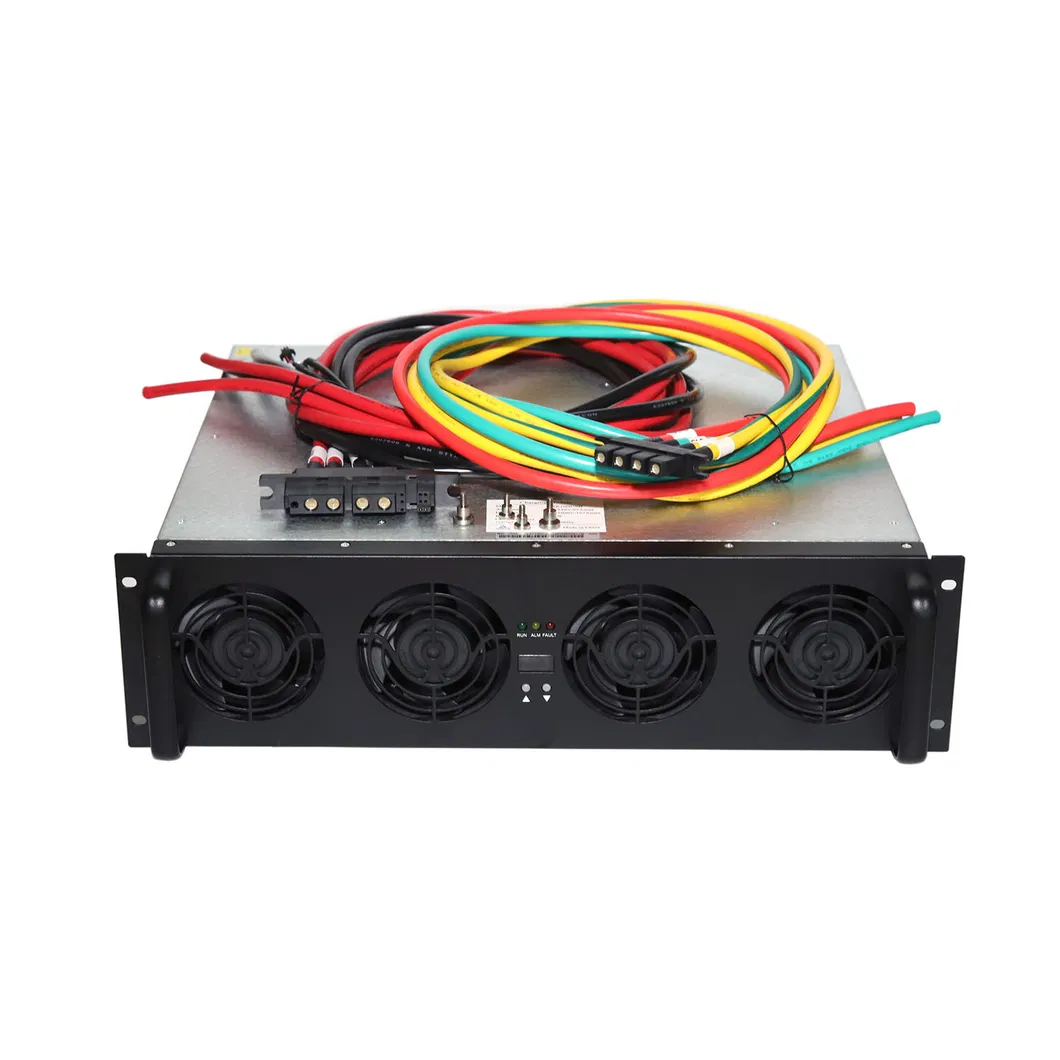

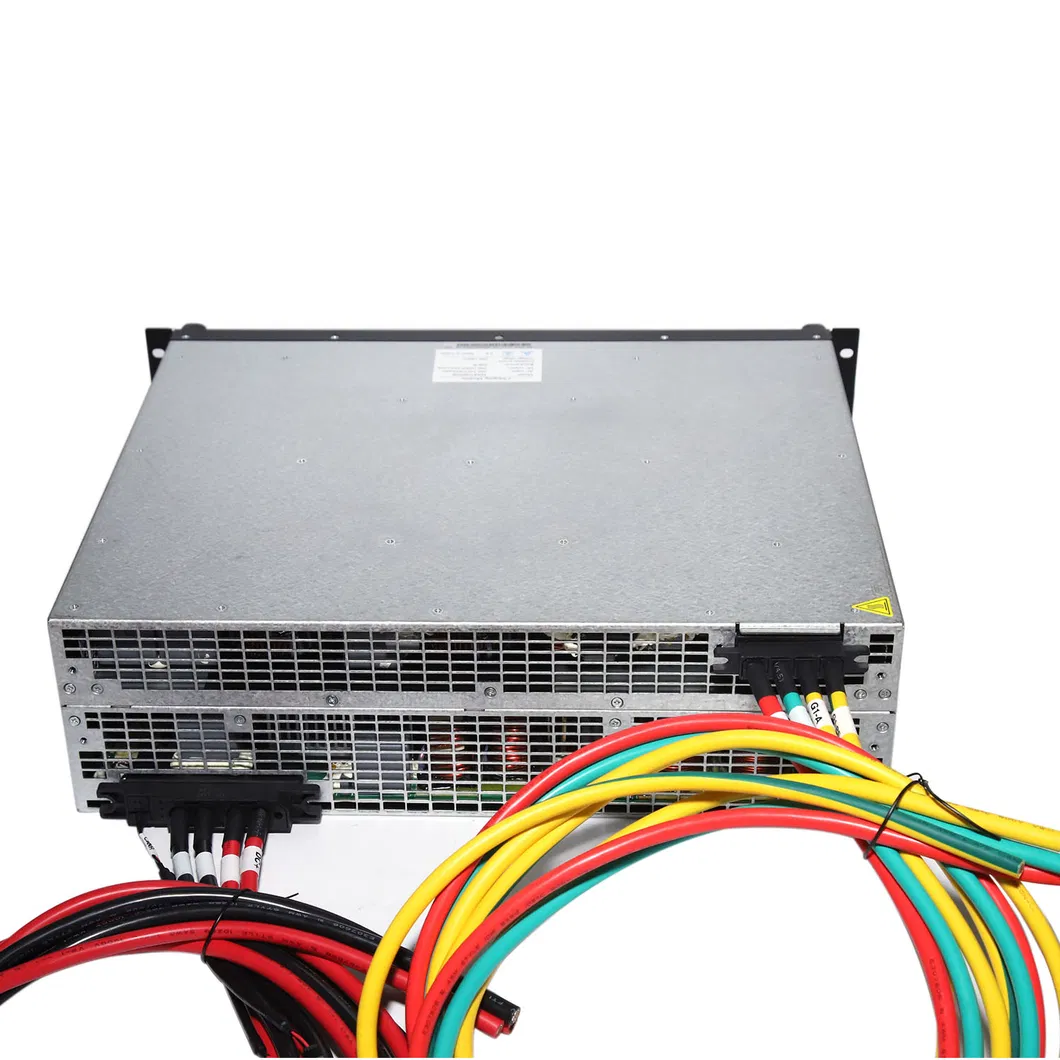

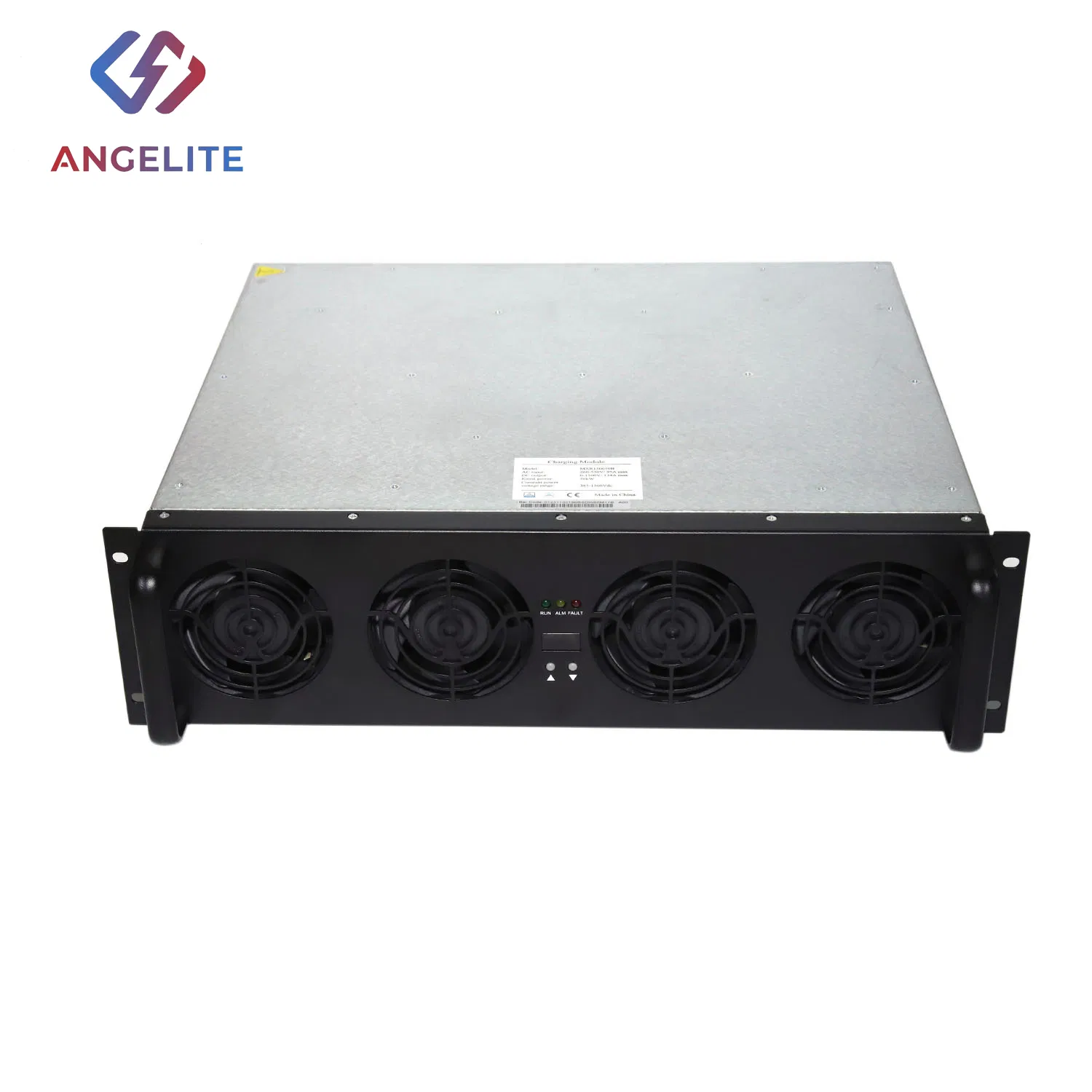

MXR40050B is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kw, and supports 260VAC~650VAC three-phase four-wire system (A/B/C +PE) input, the output voltage range is 0 ~ 400VDC, the maximum output current is 200 A, supports silent mode setting, in silent mode, the noise is less than 55dB.
🚀 Key Features
✔ Low noise: support silent mode setting (55dB, 60dB)
✔ High protection: isolated components from air duct
✔ Ultra-high efficiency: >97%
✔ Ultra-high power density: 40W/in³
✔ Ultra-high reliability: MTBF>1,000,000h

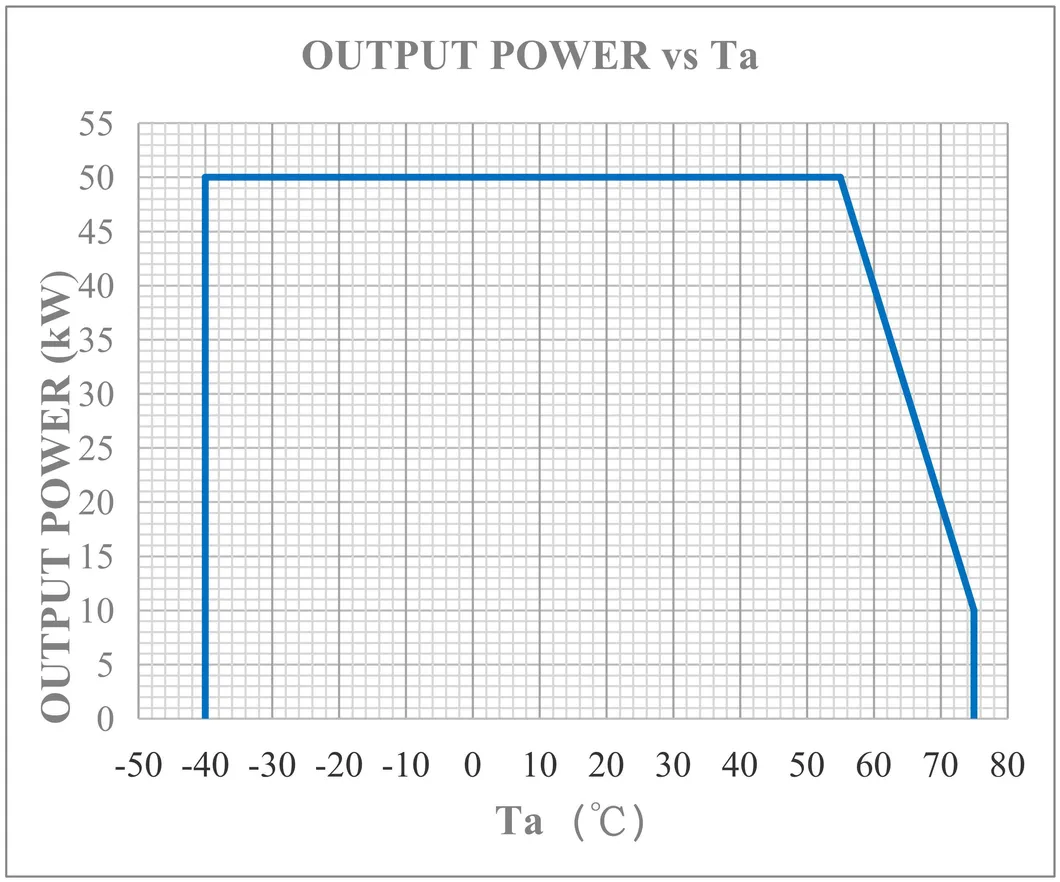

✔ Wide working temperature: -40ºC to +75ºC
✔ Support hot swap function
✔ CAN bus communication support
🏭 Profile
Focusing on the research, development, and production of power electronic products, we position ourselves as a high-end service provider for DC power supply systems. Our expertise spans independent intellectual property rights and continuous technological innovation, providing essential equipment support across automotive, electric power, railway, metallurgy, and communications fields worldwide.
❓ Frequently Asked Questions
Q: What is the maximum efficiency of the MXR40050B module?
A: The module achieves an ultra-high efficiency of over 97%.
Q: Does the unit support quiet operation?
A: Yes, it supports a silent mode with noise levels as low as 55dB.
Q: What is the input voltage range for this rectifier?
A: It supports a wide input voltage range from 260VAC to 650VAC.
Q: Is the module hot-swappable?
A: Yes, it supports hot swap functionality for easy maintenance and system scalability.
Q: What communication protocol is used?
A: The module utilizes the CAN bus communication mode for intelligent control.
Q: What are the protection features of the device?

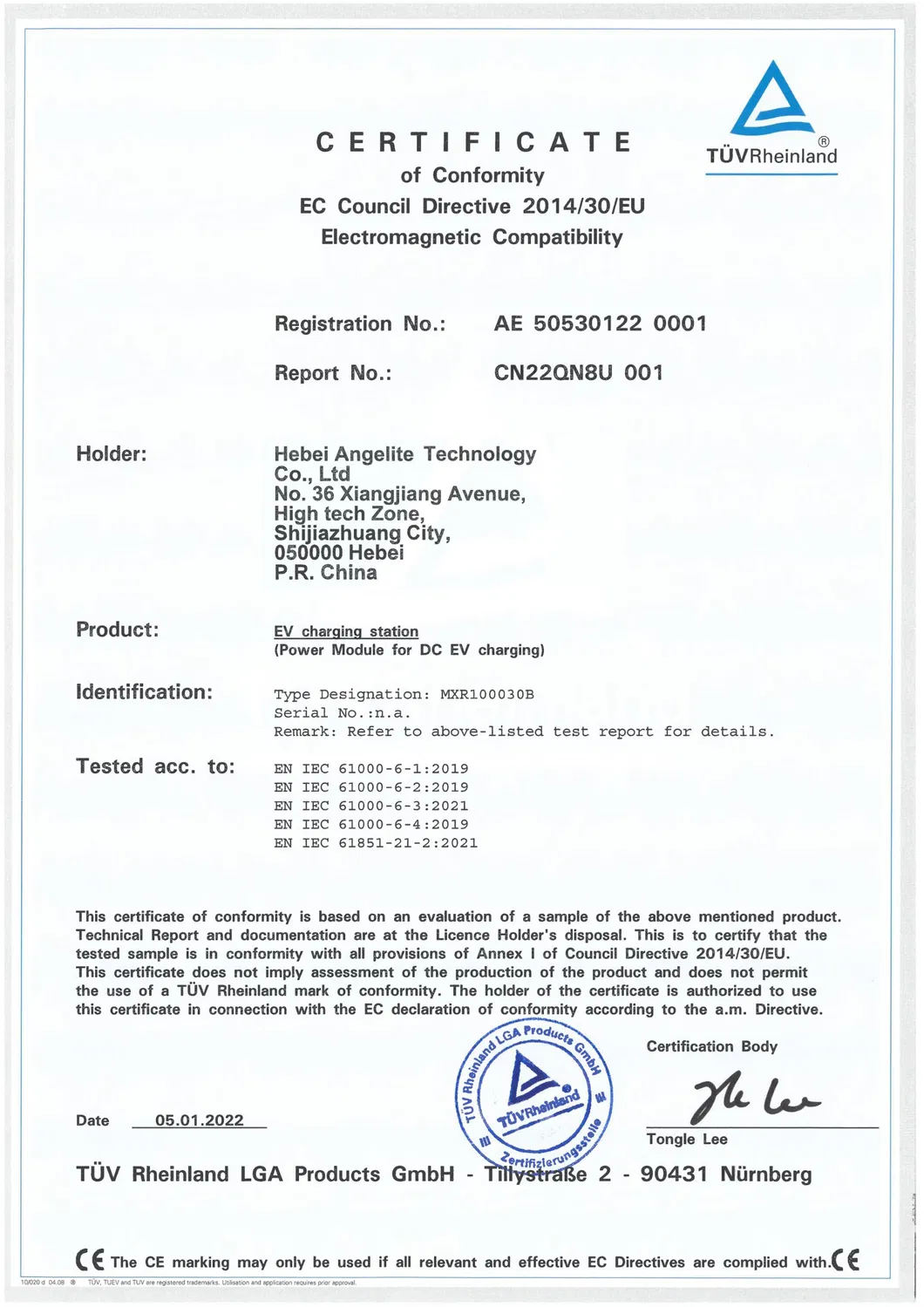

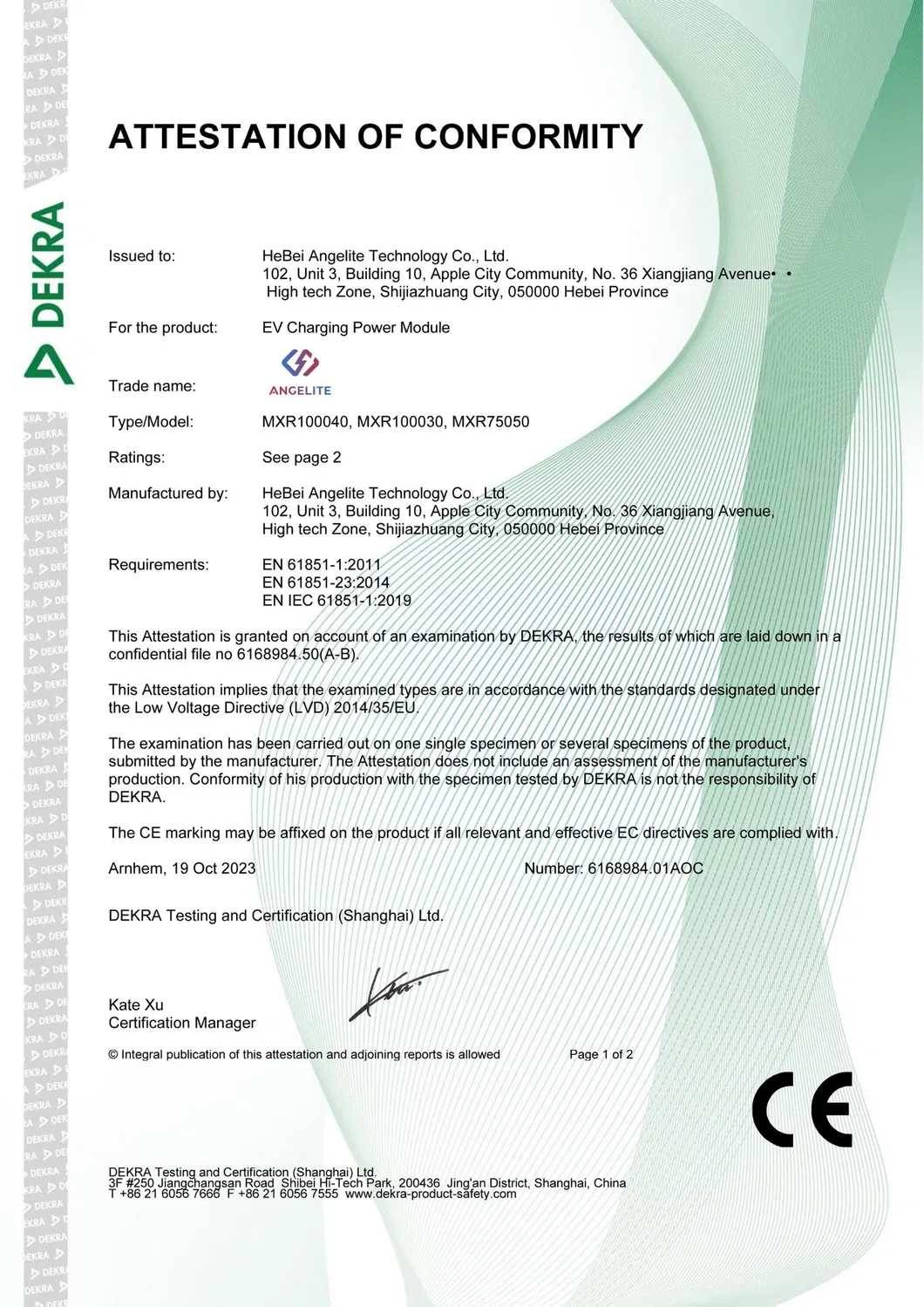

A: It includes isolated sensitive components, intelligent protection functions, and meets CE/EMI Class B limits.
