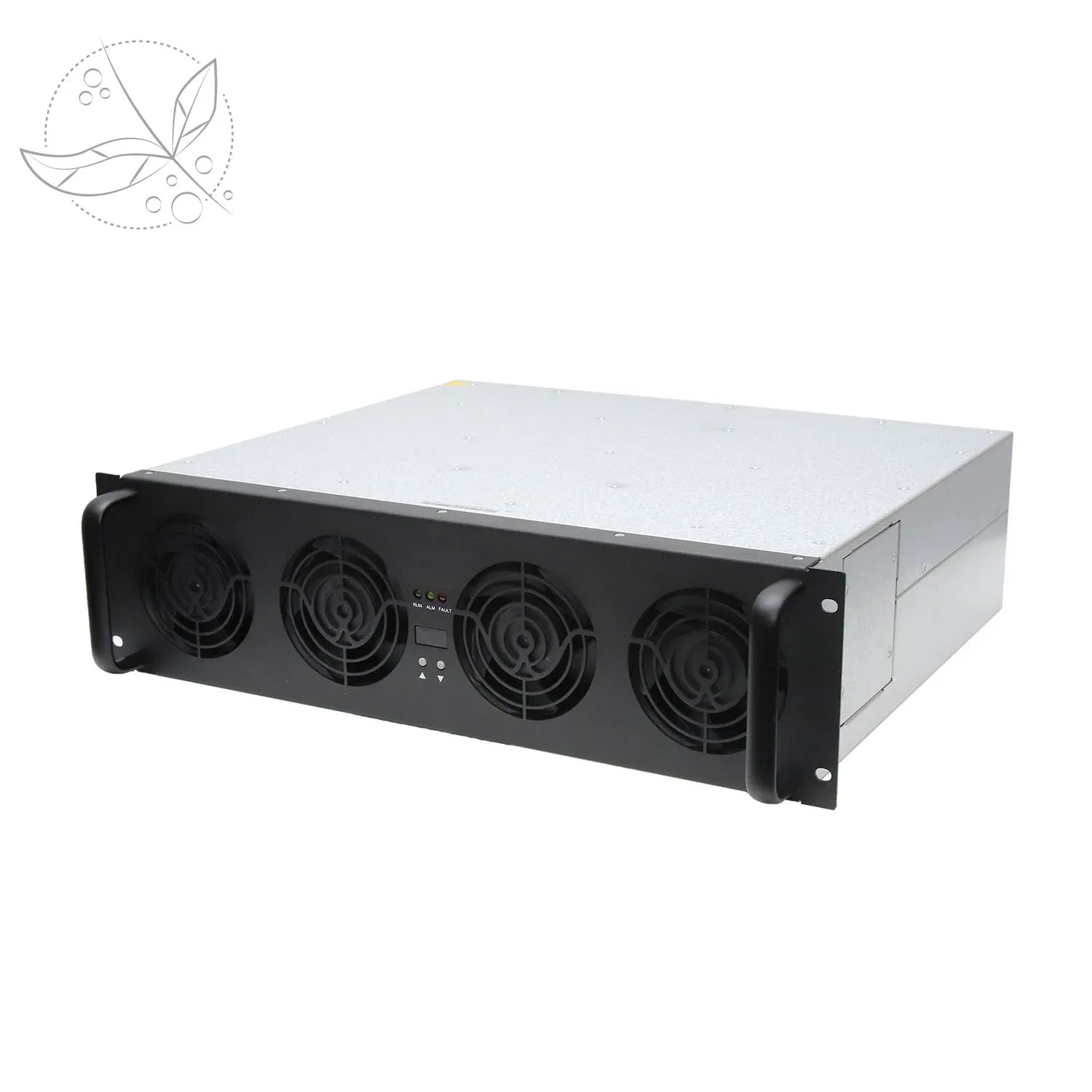

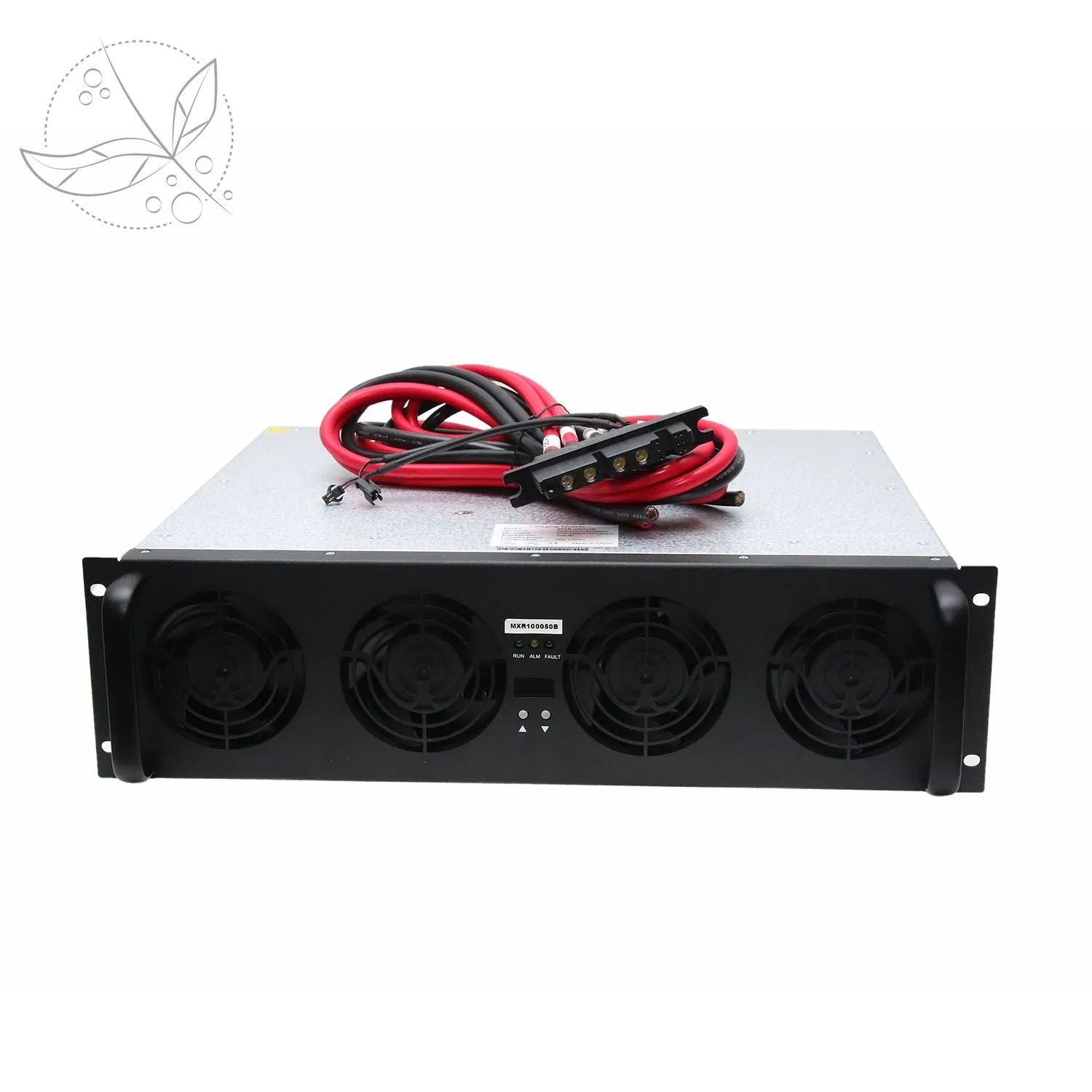

50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger
50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger
50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger
50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger
50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger
1 / 5
50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger
50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger
50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger
50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger
50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger

50kw 1000V AC/DC EV Charging Rectifier Module for DC Fast Charger

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
MXR100050B
Input Current
100A
Output Current
0~167A
Certification
CE, ISO, TUV, RoHS
Cooling Mode
Fan Cooling
Parallel Modules
60PCS
Efficiency
≥96%
Power Factor
0.99
MTBF
500,000 Hours
Warranty
1 Year
Input Voltage260 Vac~530 Vac, Three Phase + PE
Output Voltage200Vdc ~ 1000Vdc
Dimensions125mm(H) * 440mm(W) * 380mm(D)
CommunicationCAN bus

Detailed Product Gallery

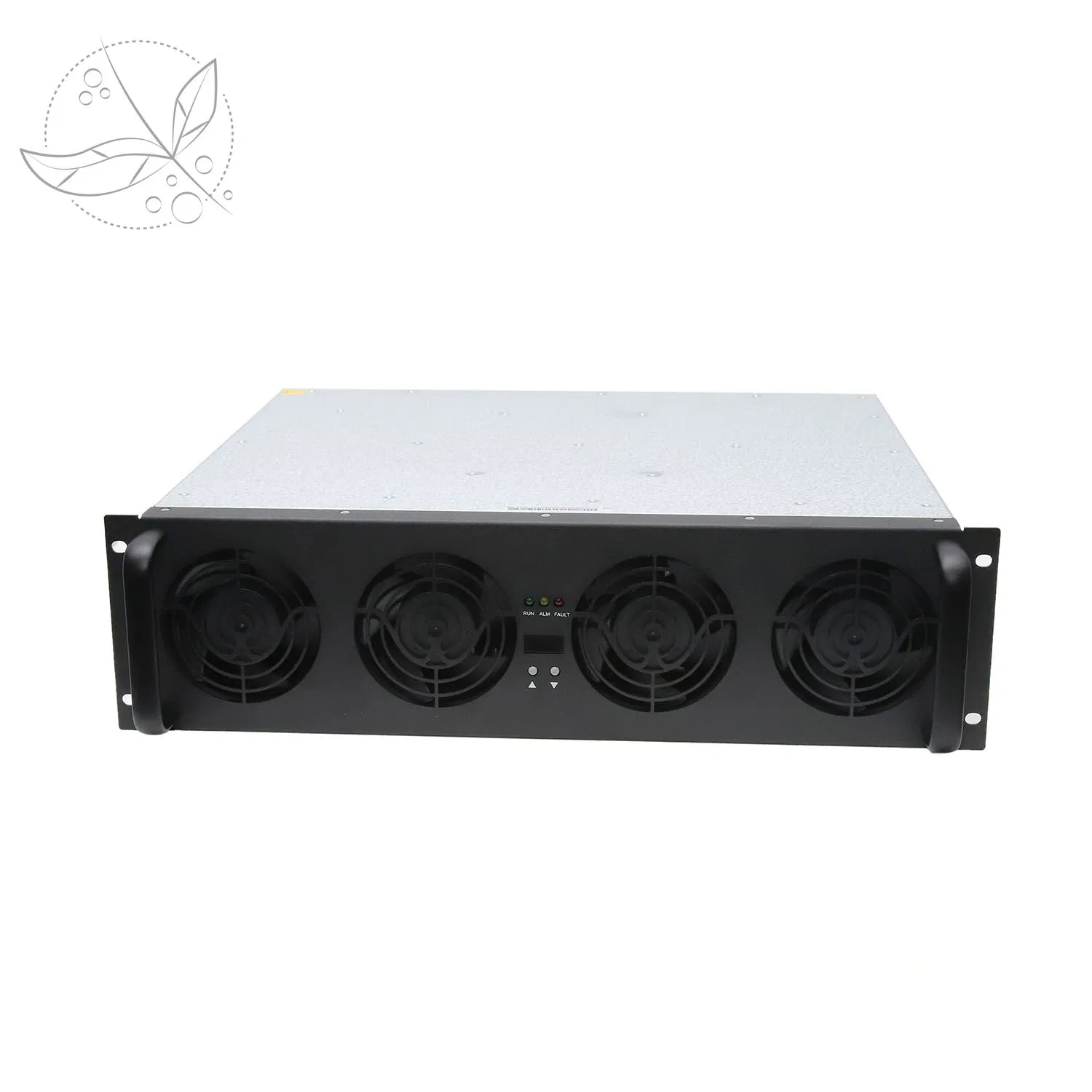

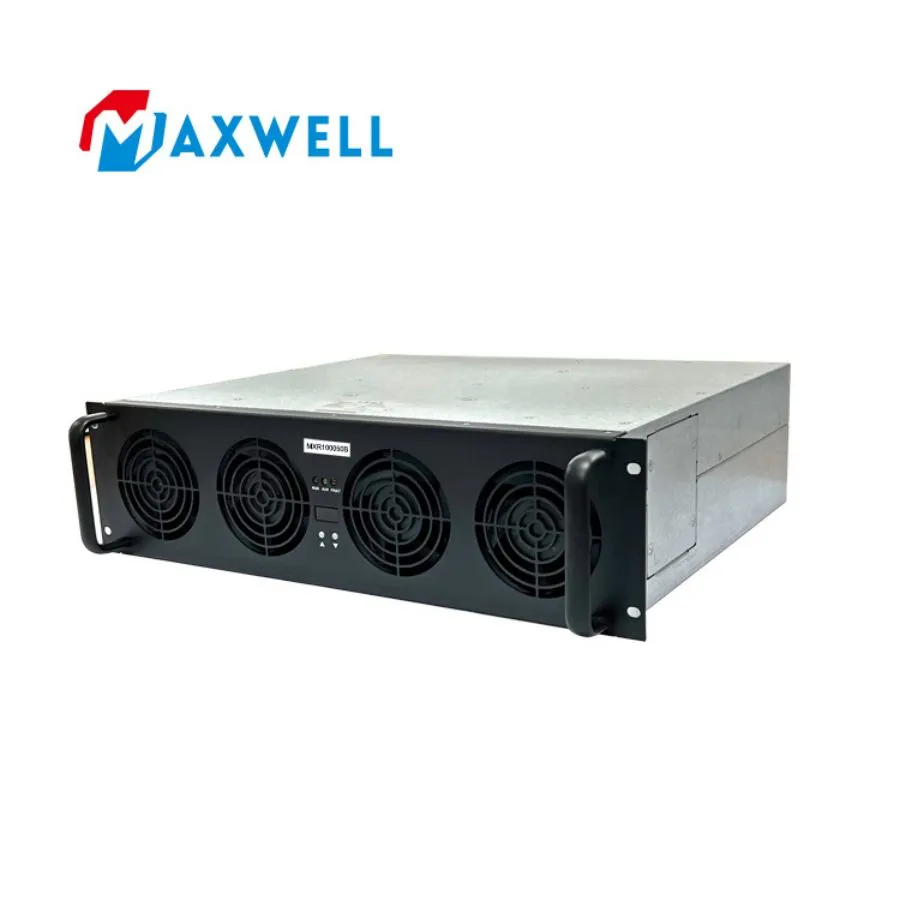

EV Charging Rectifier Module Front

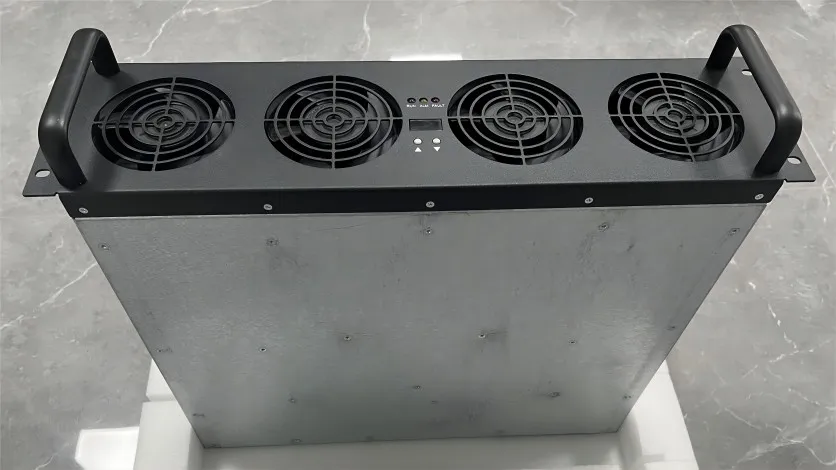

EV Charging Rectifier Module Side View

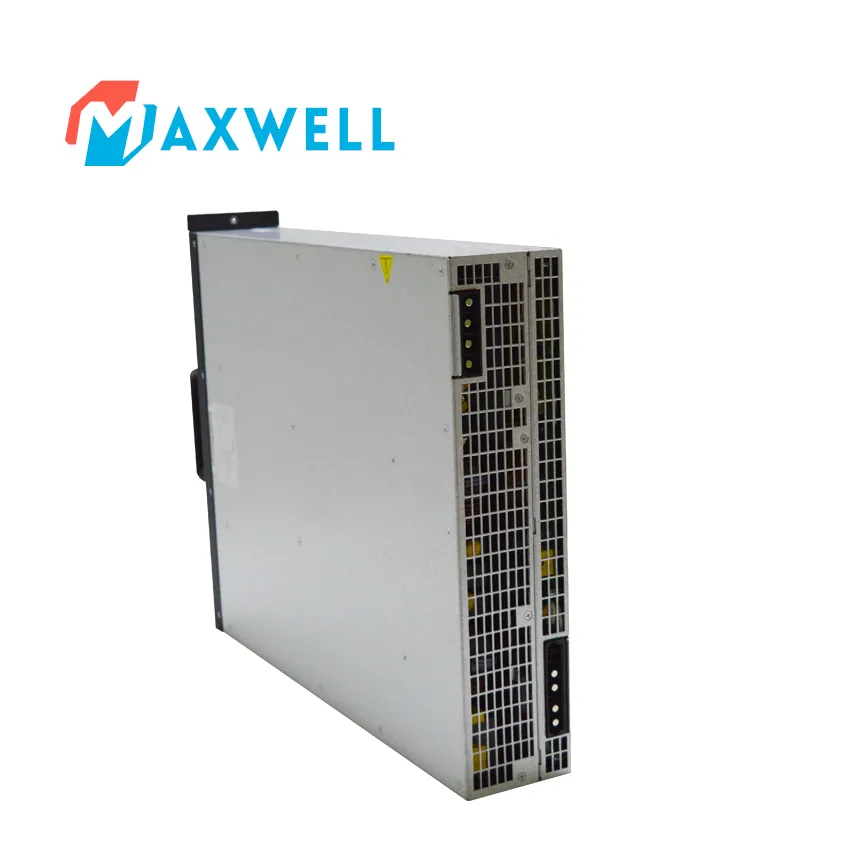

EV Charging Rectifier Module Detail

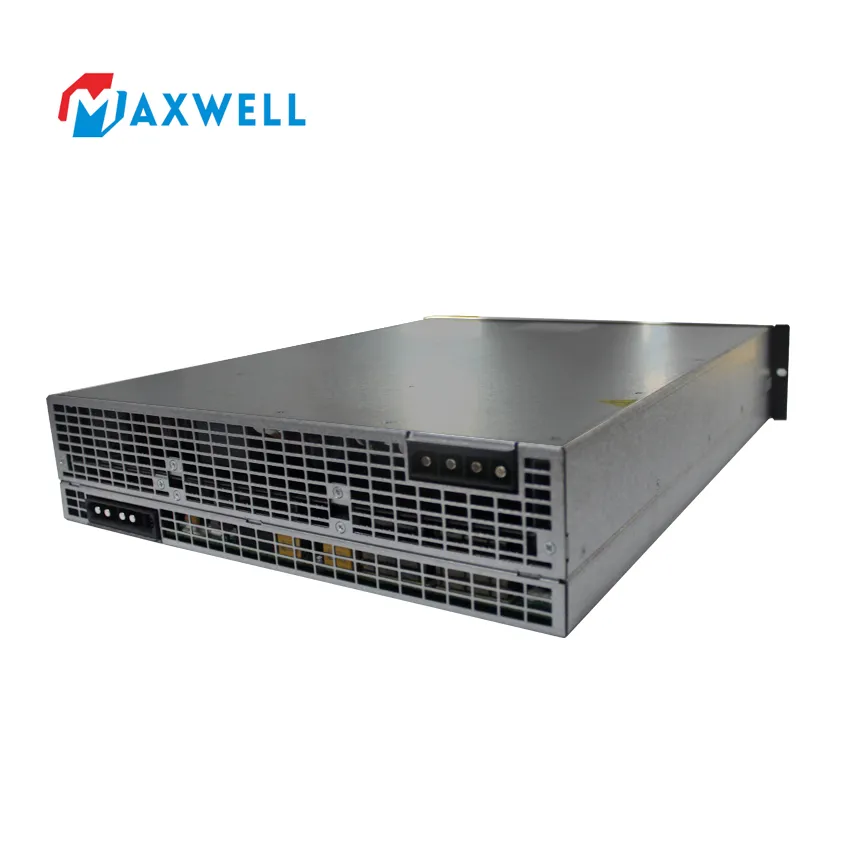

EV Charging Rectifier Module Back

Core Functionalities

⚡ Hot Swap Technology

Plug-in technology allows for rapid installation and convenient maintenance without system downtime.

📊 Intelligent Current Sharing

Automatic current sharing among modules with an unbalance degree of less than 5%.

🛡️ Input Power Control

Optimized performance between 323Vac and 530Vac to ensure maximum power output stability.

🔋 Constant Power Output

Maintains a rated output of 50kW under standard operating conditions for efficient fast charging.

Global Certifications

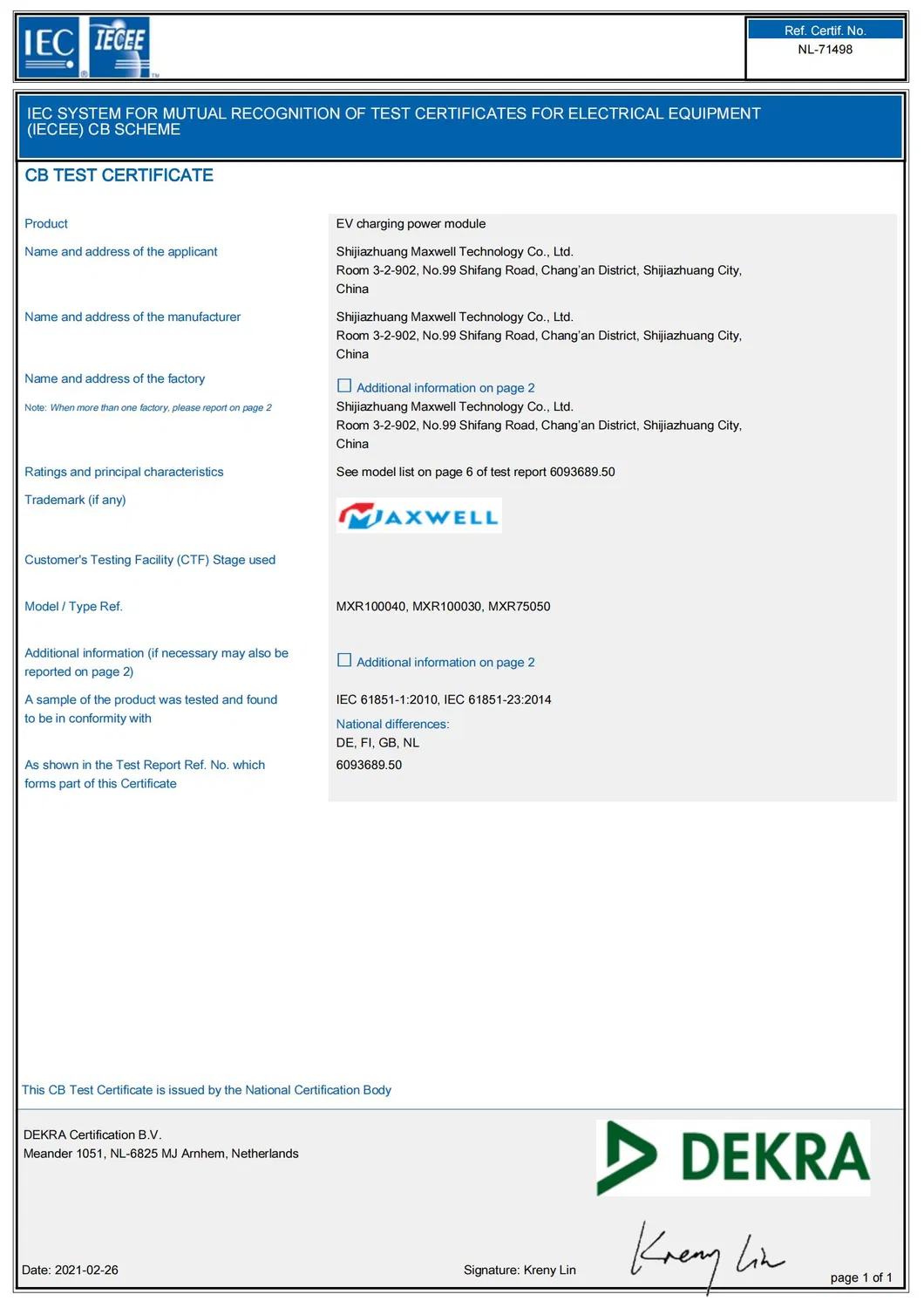

Certification 1

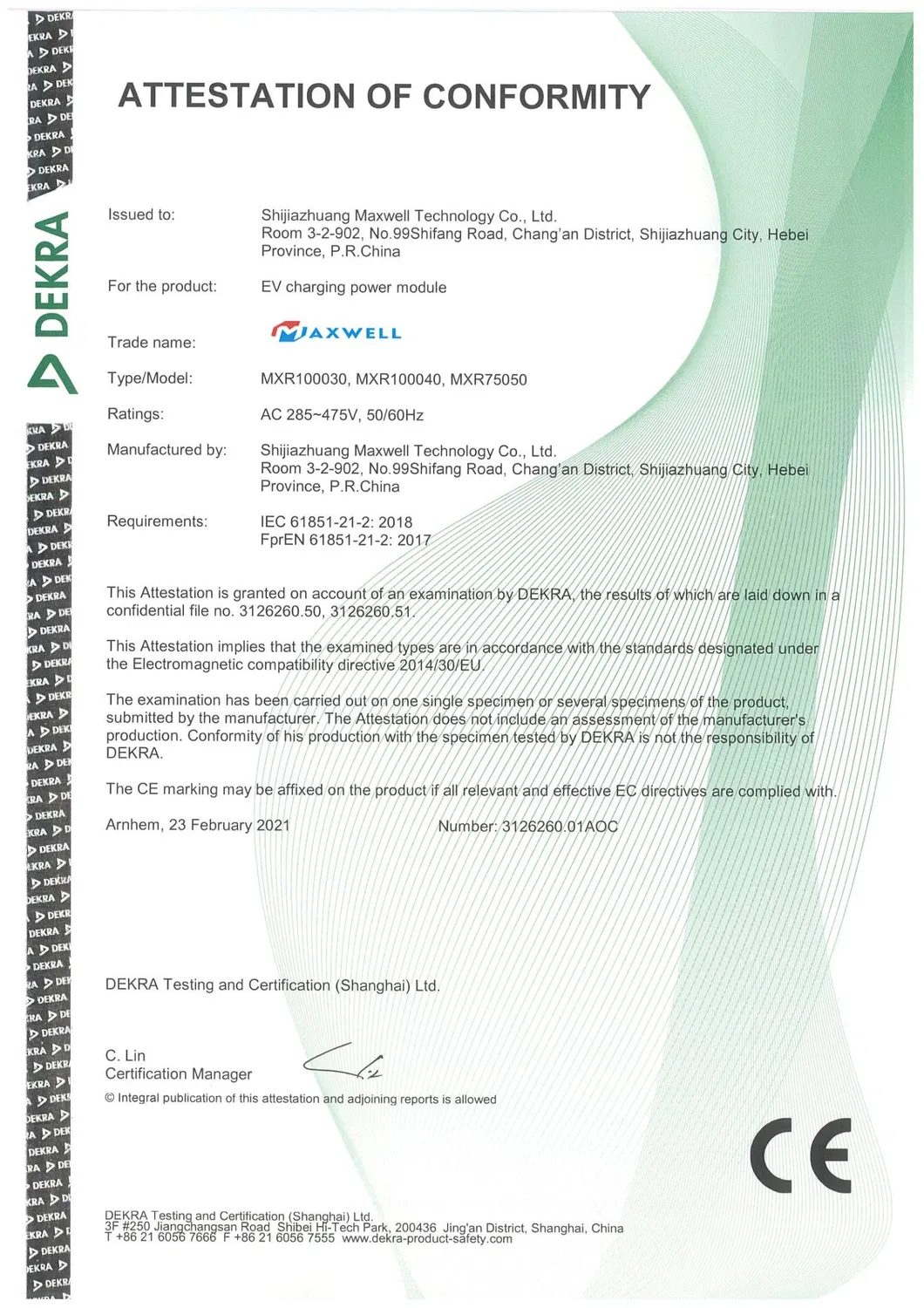

Certification 2

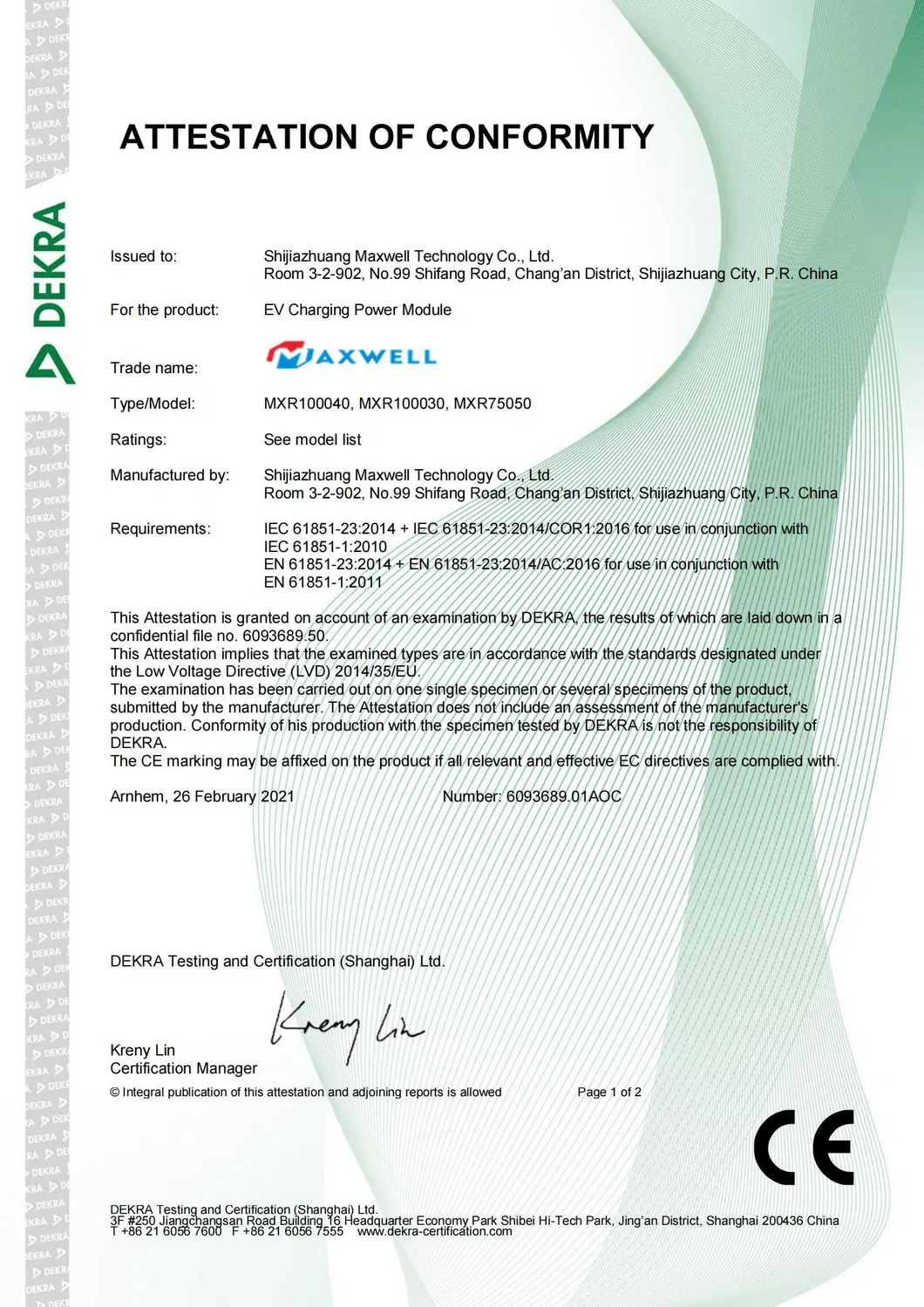

Certification 3
CE / TUV / EMCEN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61851-21-2:2021
cTUVusUL 2202:2009 R2.18; CSA C22.2 NO.107.1-16

Packaging & Logistics

Packaging Box
Internal Protection

Production Process

  • 1Material Management: Strict inspection and categorized warehouse management with full data consistency.
  • 2Manufacturing: SMT, manual plug-in/wave soldering, and three anti-spray brush lines.
  • 3Testing & QC: Assembly, professional debugging, and rigorous Aging Toaster Tests.
  • 4Traceability: Full product lifecycle tracking from raw materials to final delivery via unified management systems.

After-Sales Commitment

Warranty Period: 1 Year

• First 6 Months: Free replacement for non-human damage (Shared freight cost).

• Second 6 Months: Free repair services for non-human damage.

• Technical Support: Direct access to engineers for technical assistance during testing and installation.

Frequently Asked Questions

What is the maximum efficiency of the MXR100050B module?
The module reaches a high efficiency of ≥96% at full load, ensuring minimal energy waste during the charging process.
What is the output voltage range supported?
It supports a wide output voltage range from 200Vdc up to 1000Vdc, making it suitable for various EV battery requirements.
Does the module support parallel connection for higher power?
Yes, the system is designed to support up to 60 modules in parallel with intelligent current sharing.
Is the module easy to replace if a fault occurs?
Absolutely. The module uses hot-swap technology, allowing for quick plug-and-play replacement without shutting down the entire charging station.
How is the module cooled during operation?
It utilizes an active fan cooling system to maintain optimal operating temperatures and ensure a long MTBF of 500,000 hours.
What certifications does the product hold?
The module is fully certified with CE, TUV, RoHS, and UL-related standards (cTUVus), meeting global safety and quality requirements.
