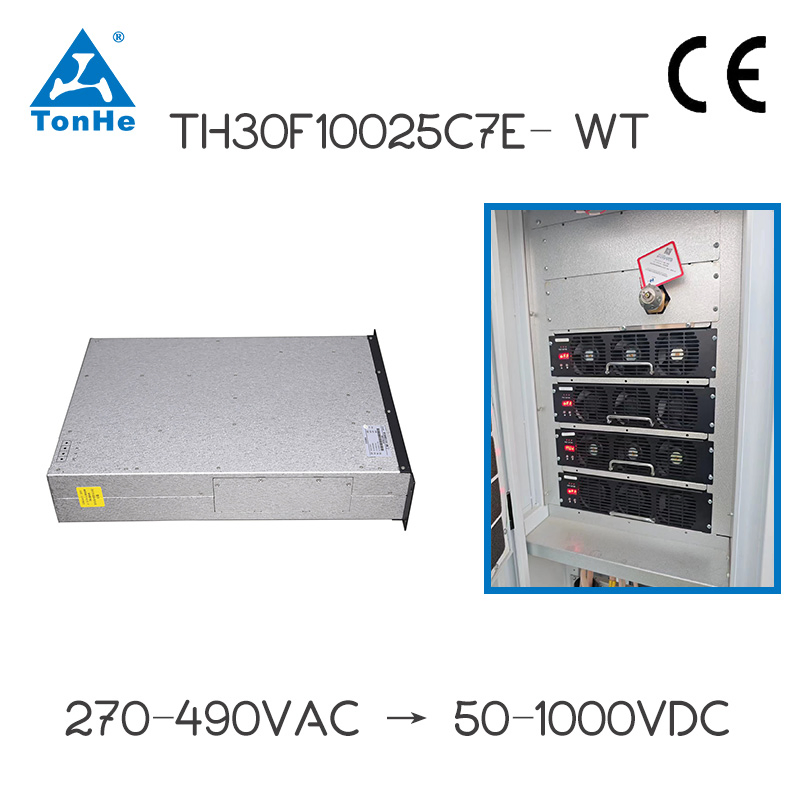

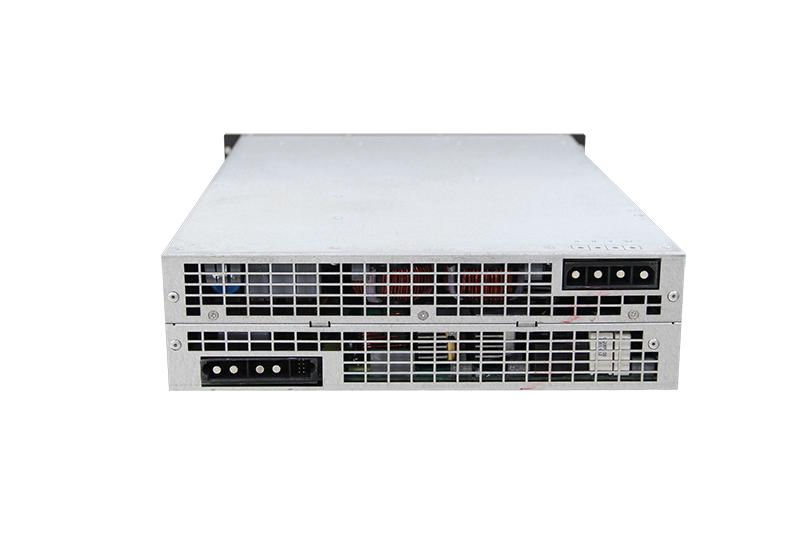

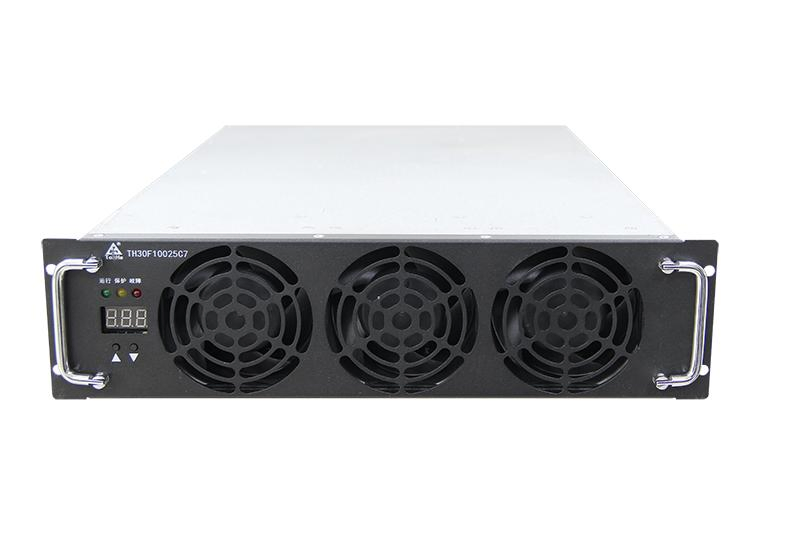

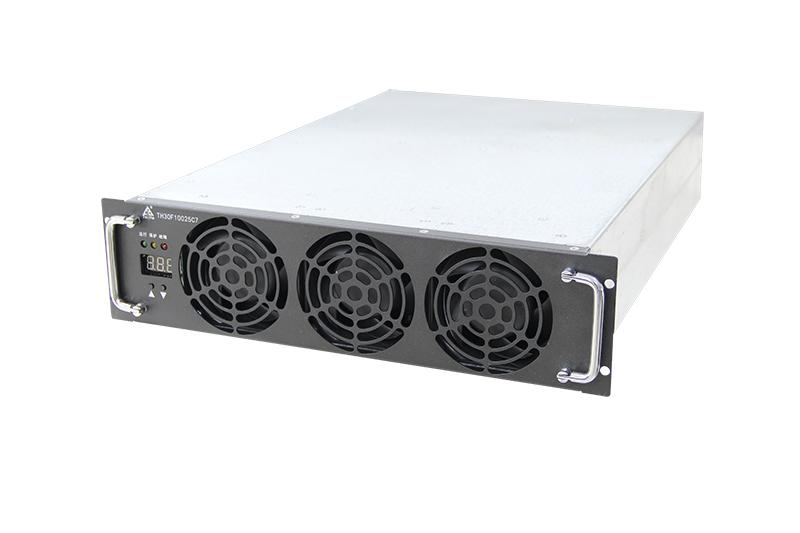

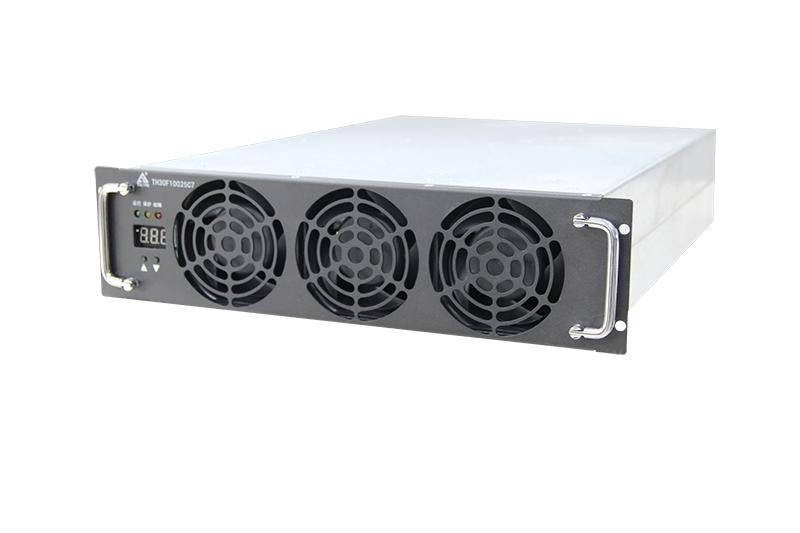

30kw 96% Efficiency 200~1000V Output Voltage EV Super Fast DC Power Supply Module 30kw Charging Module

1 / 5

30kw 96% Efficiency 200~1000V Output Voltage EV Super Fast DC Power Supply Module 30kw Charging Module

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

TH30F10025C7-WT

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID Authentic

Certification

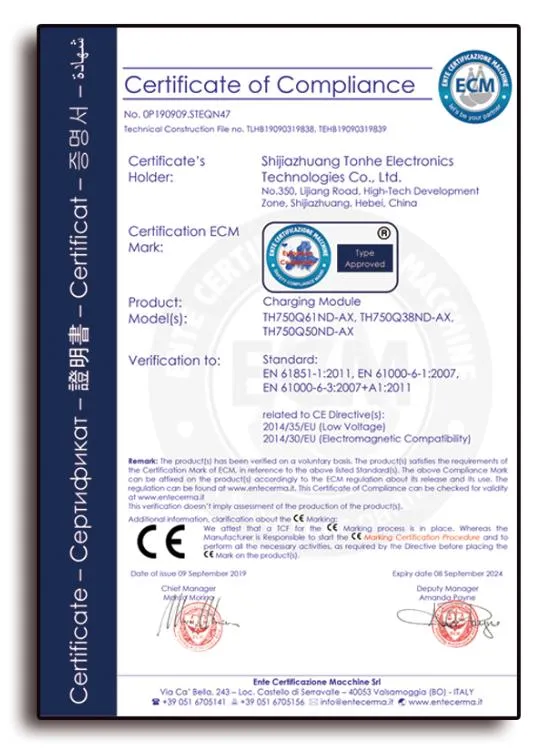

CE, ISO

Weight

15kgs

Specification

30kW

Origin

China

HS Code

8504401990

Packaging & Delivery

Package Size

45.00cm * 32.00cm * 10.00cm

Package Gross Weight

20.000kg

Transport Package

Wooden Package

Product Description

Input Features

Item	Parameters	Remark
Operating Voltage (AC)	285~475V, rated voltage 380V	See input voltage curve
Input Frequency (HZ)	45~55	-
Power Factor	Full load ≥ 0.99	-
THD	Full load ≤ 5%	-
Standby Power Consumption	< 12W	-

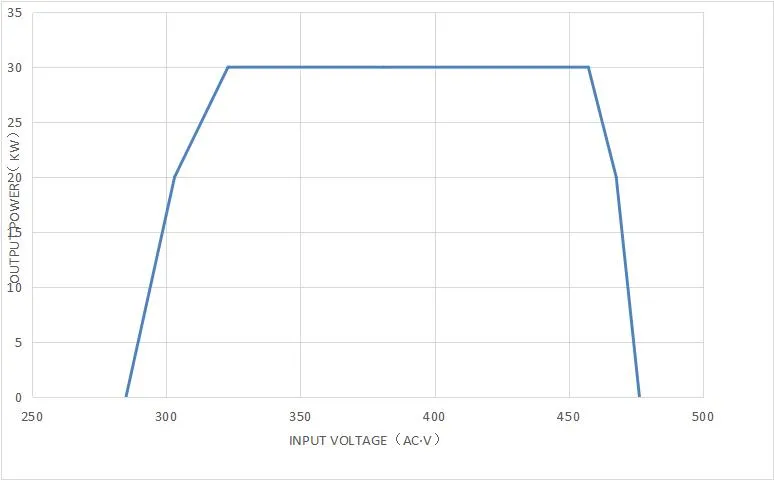

Input Voltage / Output Power Curve

Output Features

Item	Parameter	Remark
Output Voltage Range (DC)	150~1000V	-
Max Output Current (A)	120	-
Output Constant Power Interval	250~500VDC, 500~1000VDC	-
Output Current Limit Range	2~120A adjustable	See output curve
Voltage Stabilization Accuracy	≤ ±0.5%	-
Current Stabilization Accuracy	≤ ±1%	Load 20%~100%
Peak Efficiency	≥ 95.5%	-
Soft Start Time (S)	3~8	-
Communication Protocol	CAN	-

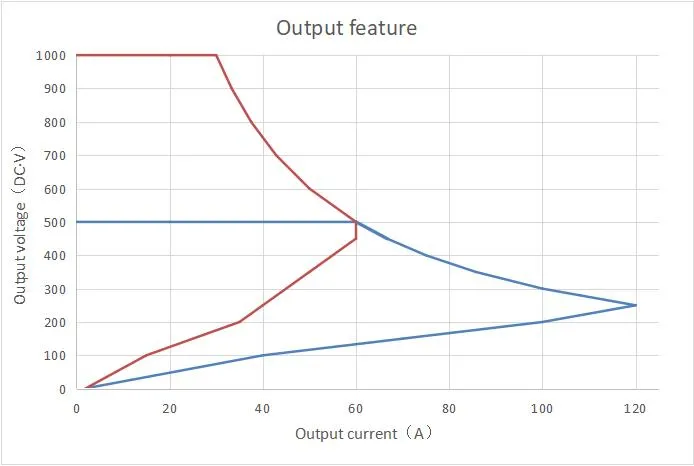

Output Performance Visualization

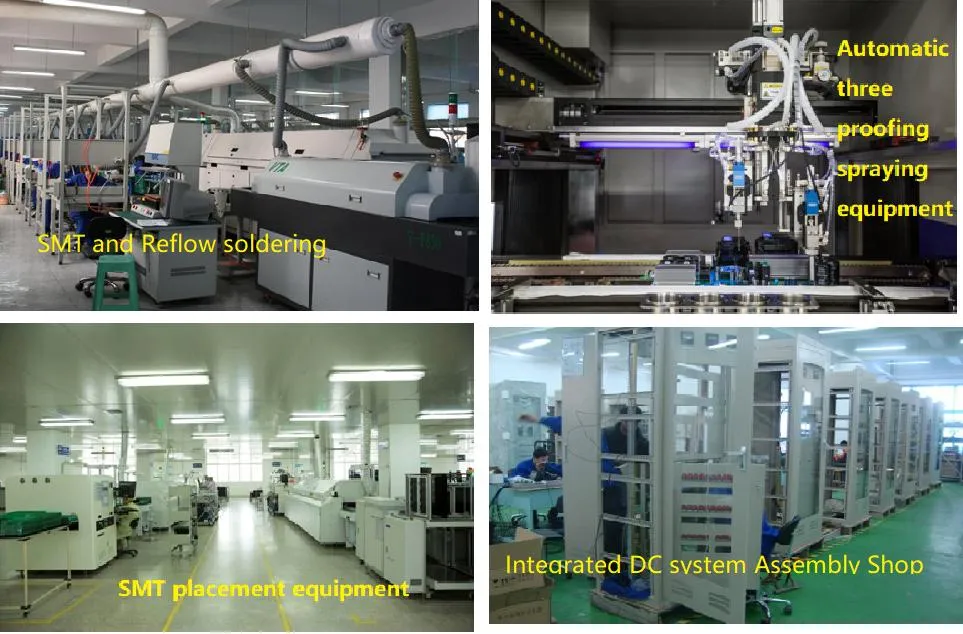

Manufacturing & Quality Control

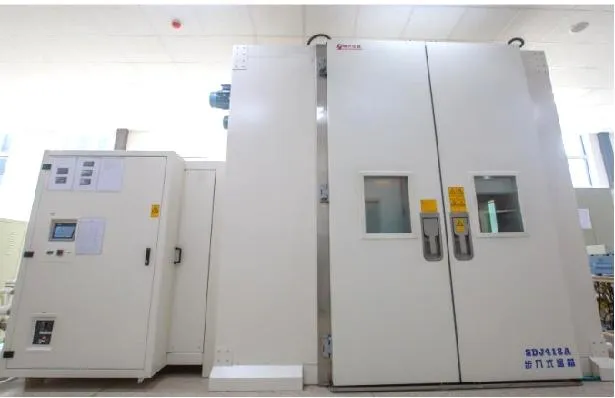

18m³ walk-in high and low temperature lab

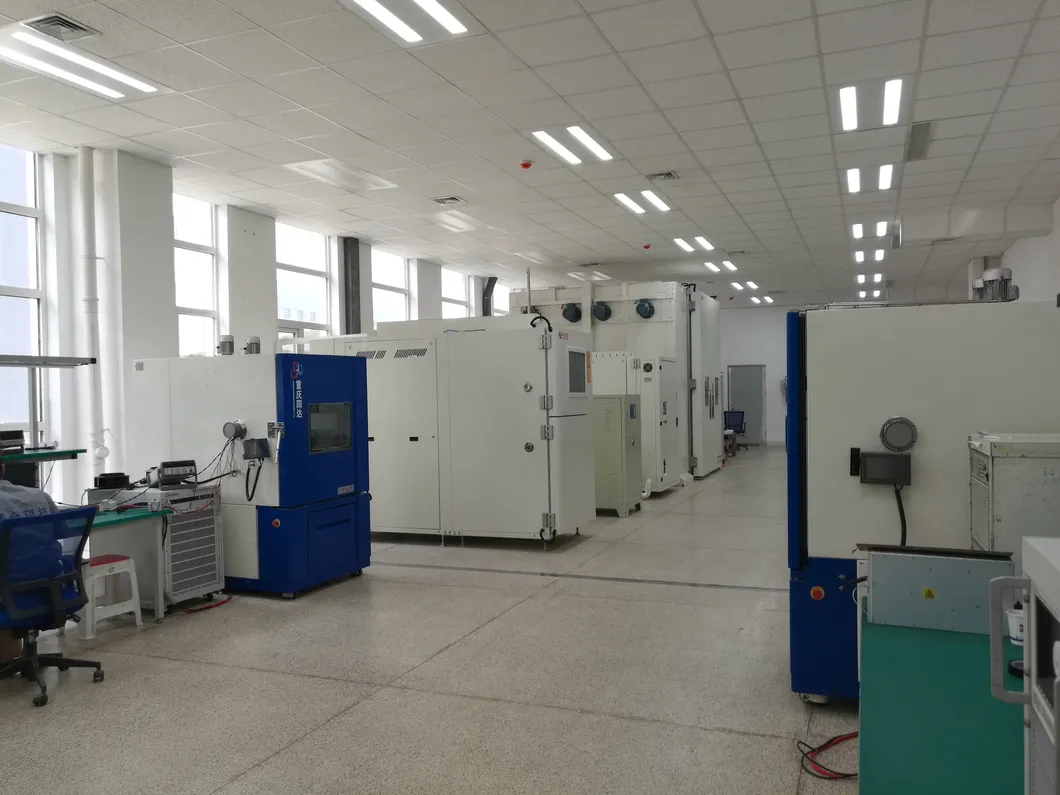

Advanced Testing Facilities

Our test hall is equipped with programmable AC power supplies, DC electronic loads, power quality analyzers, and 300KVA adjustable AC power units to ensure the highest reliability.

Frequently Asked Questions

What is the peak efficiency of the 30kW charging module?

The module achieves a peak efficiency of ≥ 95.5%, ensuring minimal energy loss during high-speed charging.

What output voltage range does this module support?

It supports a wide output voltage range from 150V to 1000V DC, making it compatible with various EV battery architectures.

Is the module protected against current rewinding?

Yes, the module is designed with built-in support to prevent current rewinding during operation.

How is the module controlled and monitored?

The module utilizes the CAN communication protocol for stable and efficient data exchange and control.

What environment testing has this equipment passed?

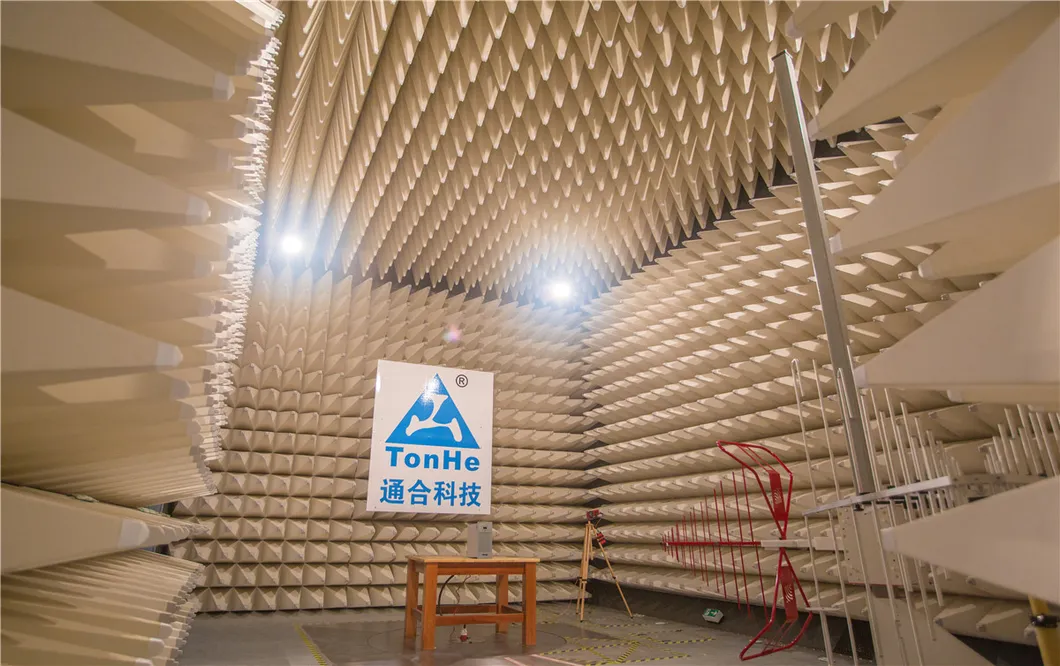

The product undergoes rigorous testing in 18m³ high/low temperature labs and Anechonic Chambers meeting international standards like CISPR22 and IEC61000.

What is the standby power consumption?

The module is designed for energy efficiency with a standby power consumption of less than 12W.
