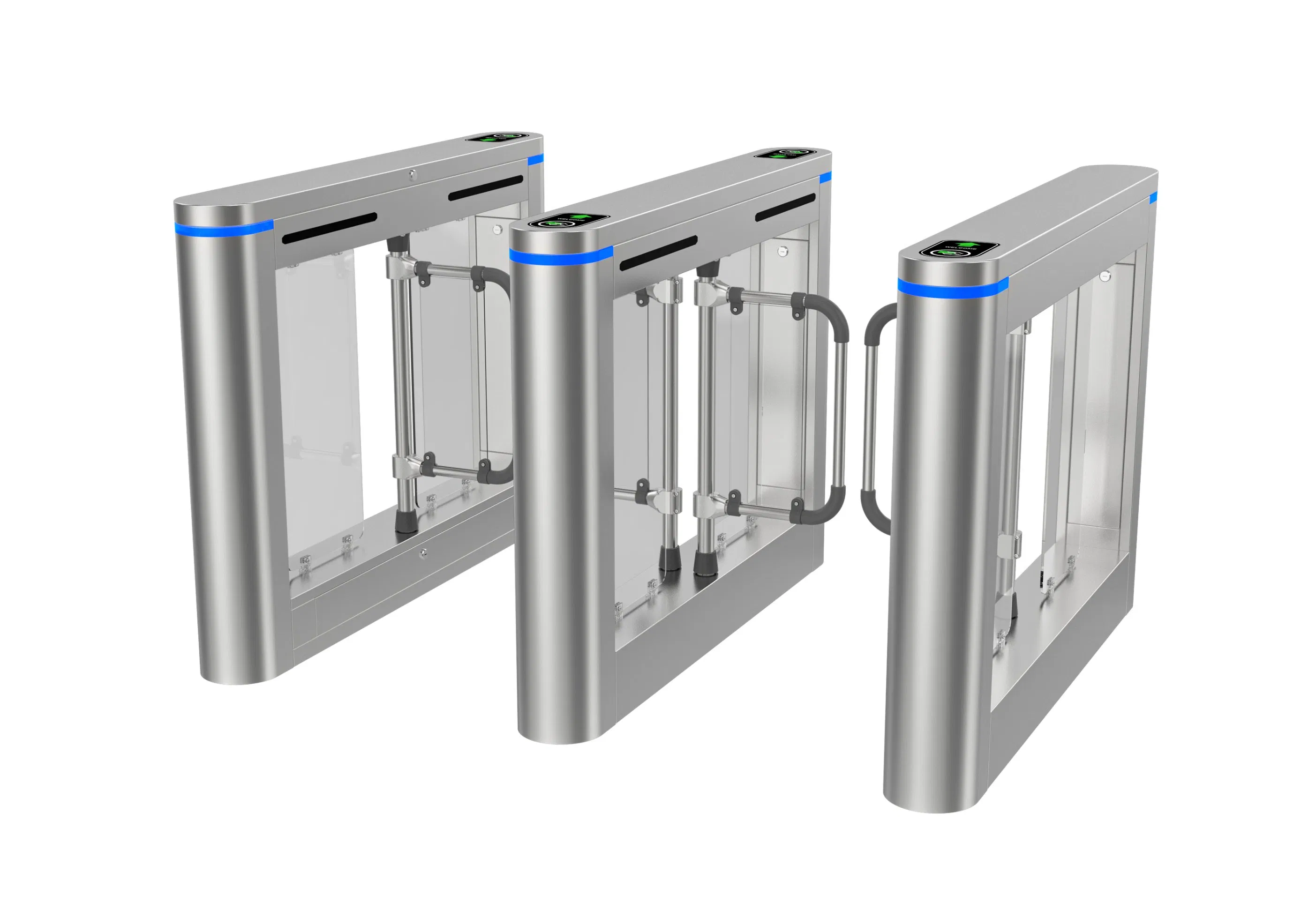

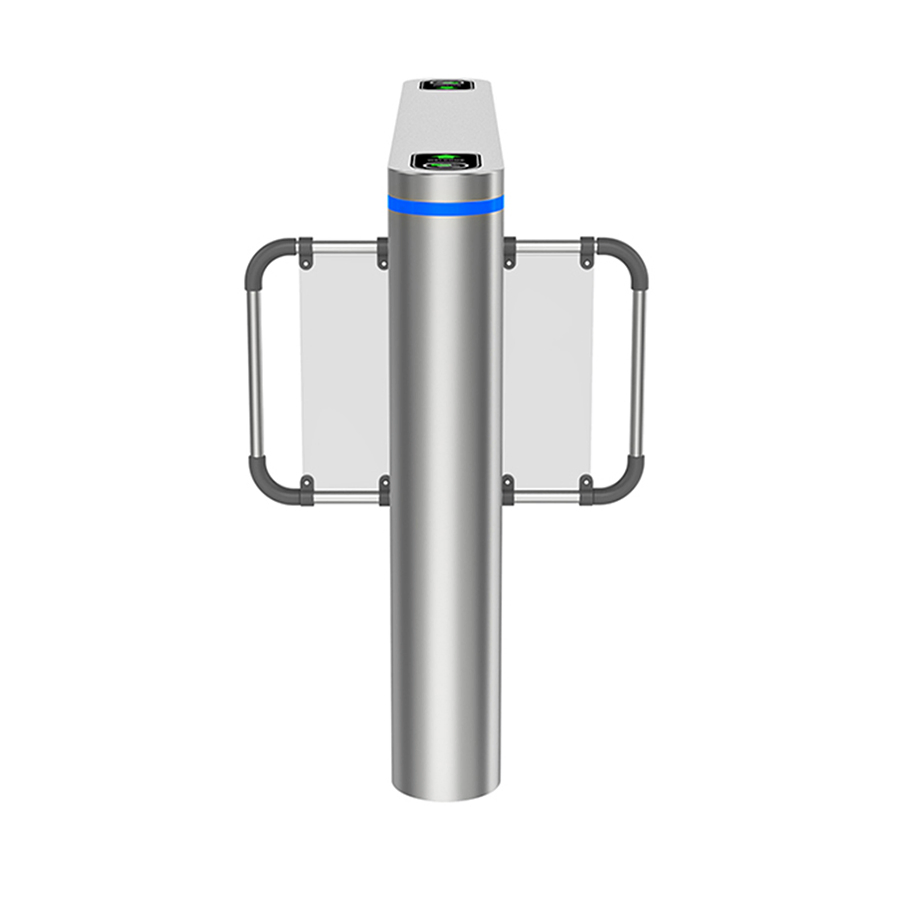

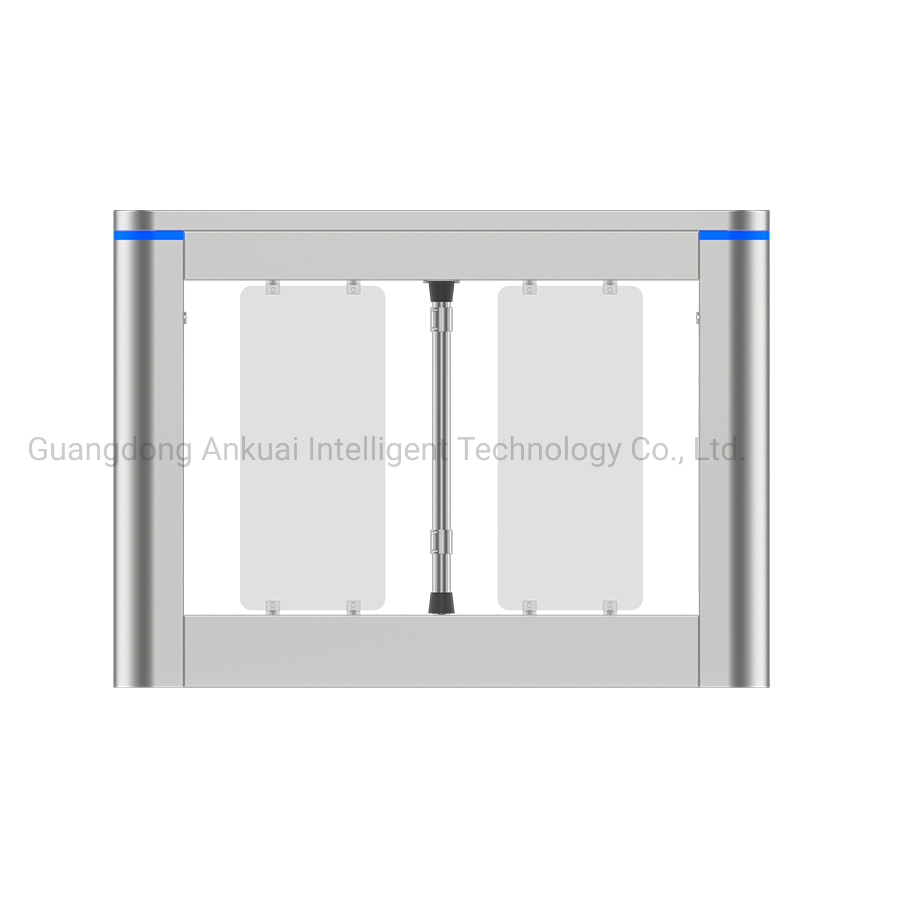

304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate
304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate
304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate
304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate
304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate
1 / 5
304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate
304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate
304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate
304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate
304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate

304 Stainless Steel Automatic High Security Pedestrian Access Control with RFID/Barcode/Face Recognition Devices Swing Barrier Speed Gate

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
AKT321
Movement
Single and Double
Type
Swing Gate
Control Mode
Automatic
Interface
RS485, TCP/IP
Product Name
Automatic Swing Barrier
Material
304 Stainless Steel
Power Supply
AC220V/110V
Origin
China
Capacity
5000PCS/Month

Product Description

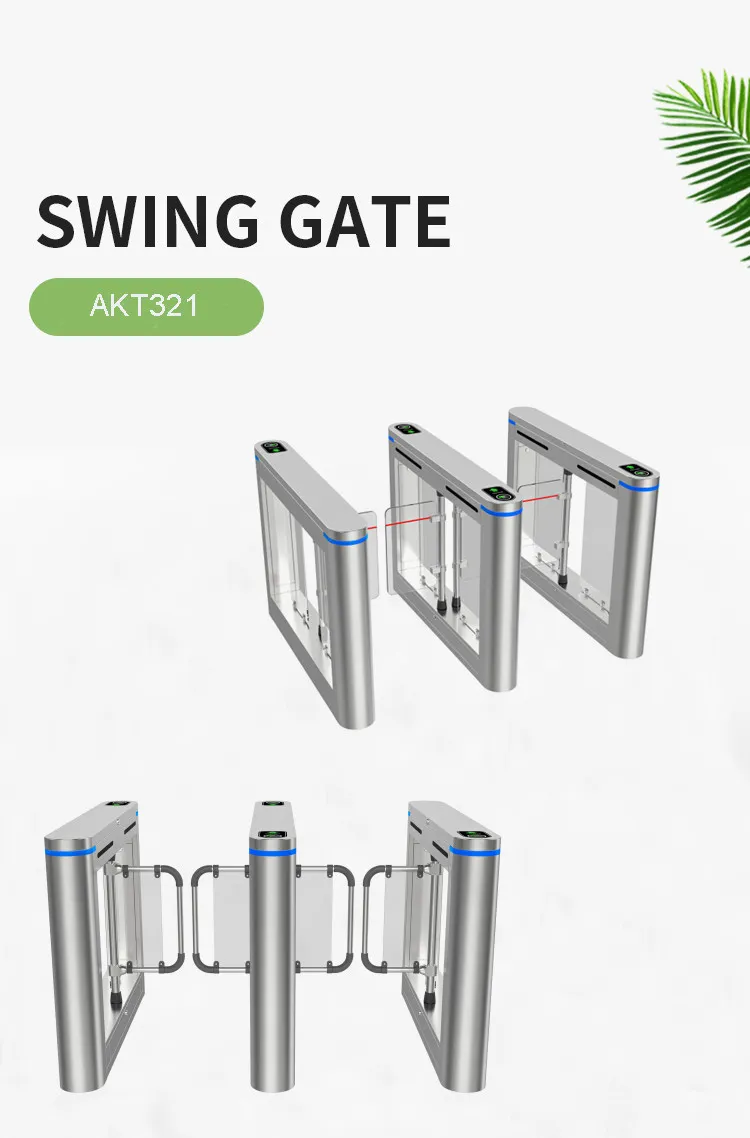

Automatic High Security Swing Barrier
Model No.AKT321 (2 models)
Material304 stainless steel
Dimensions1400*180*1020mm
Arm open/close time2s
Dry contact12V
Arm length<=500mm
Passage width<=1000mm
DirectionBi-directional
Service life5 million times
Operating temperature-15~60 degrees
Communication interfaceRS485
Power supplyAC220V 60HZ
Opening/closing speed30-45 persons per minute

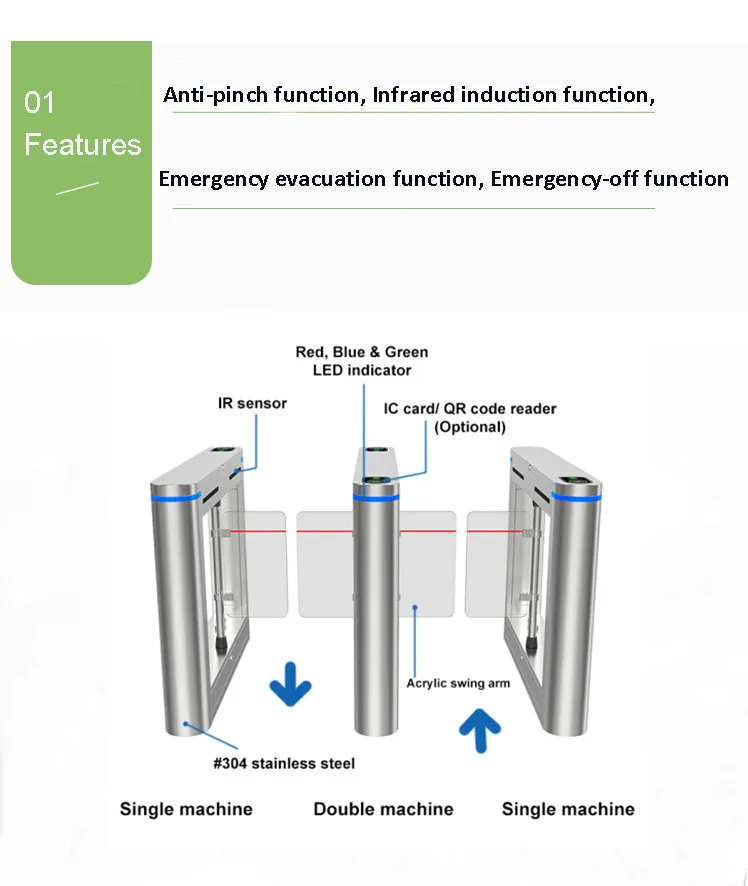

Swing Barrier Detail 1

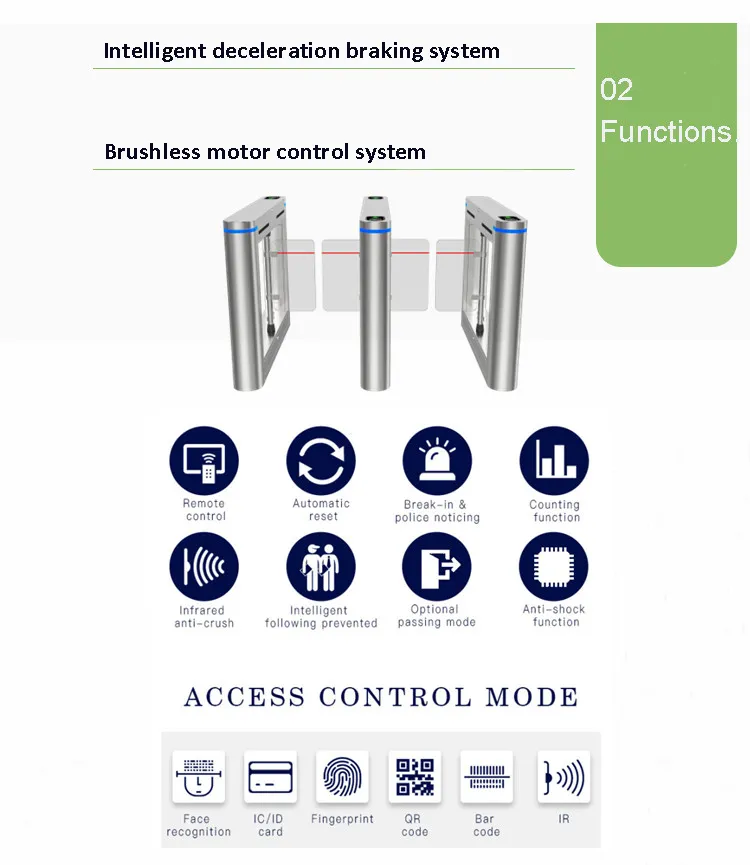

Swing Barrier Detail 2

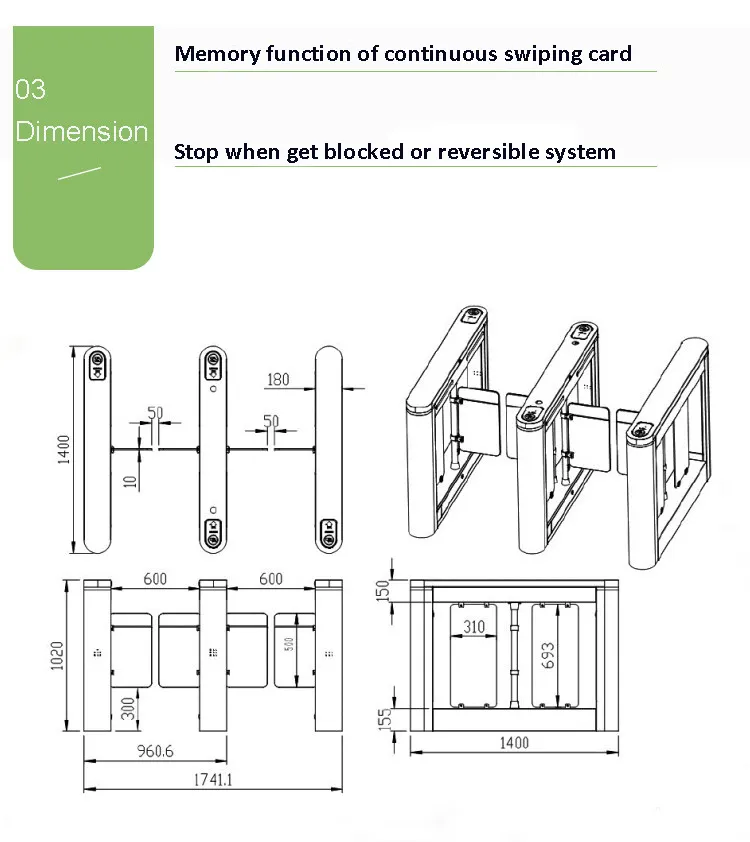

Swing Barrier Detail 3

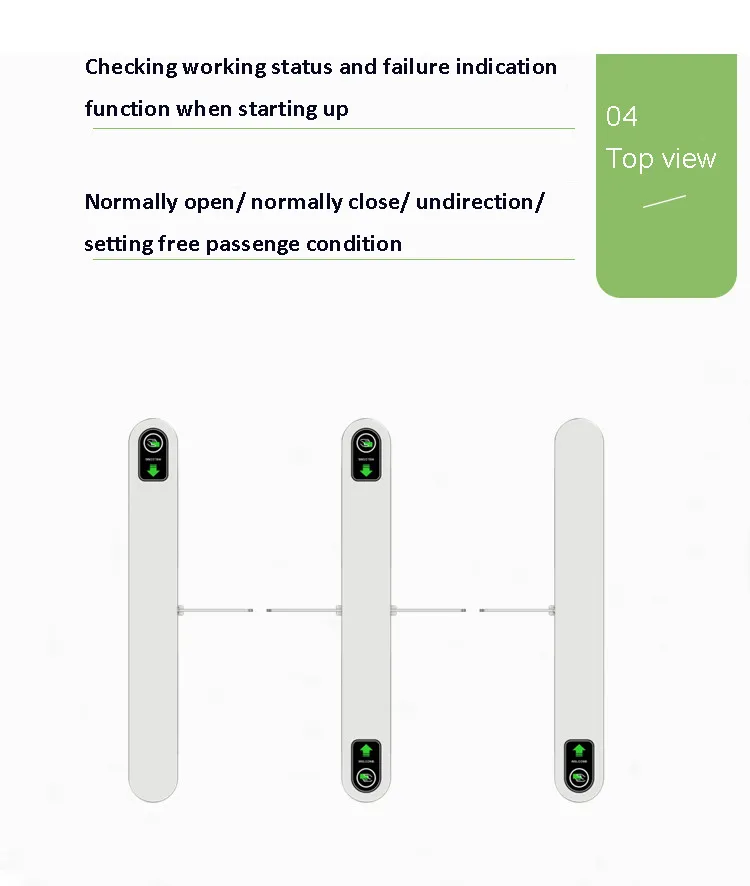

Swing Barrier Detail 4

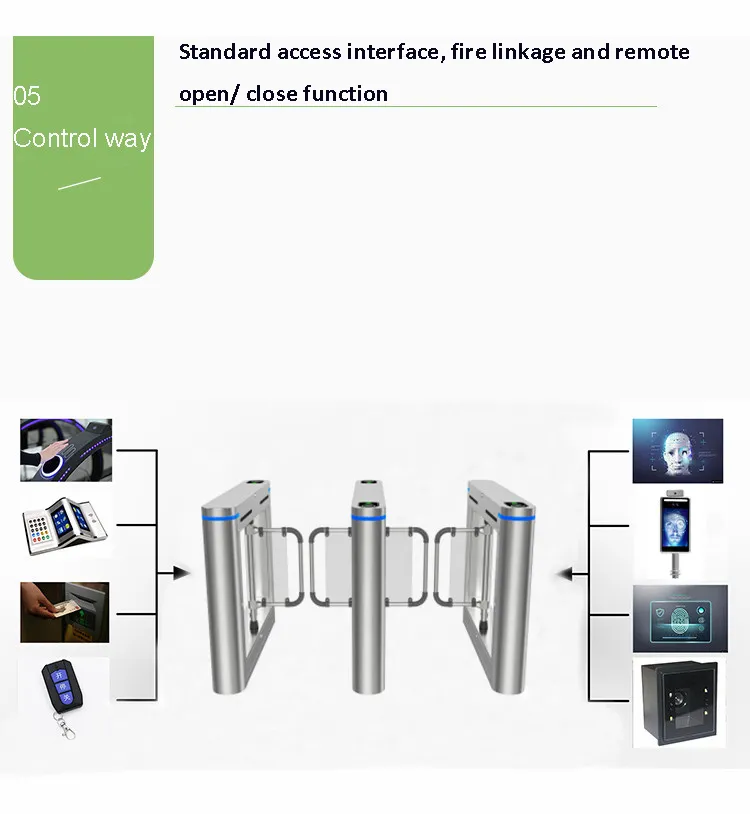

Swing Barrier Detail 5
Technical Drawing
Application 1
Application 2
Production Detail
Packaging

Frequently Asked Questions

What is the primary material used for the AKT321 swing barrier?
The AKT321 is constructed using high-quality 304 stainless steel, ensuring durability and high security for pedestrian access control.
What is the maximum passage width supported by this gate?
The passage width for the AKT321 automatic swing barrier is up to 1000mm, making it suitable for standard pedestrian access and wider requirements.
How fast can the swing arm open and close?
The arm features a quick open/close time of approximately 2 seconds, allowing for an efficient flow of 30-45 persons per minute.
What type of communication interfaces are compatible?
The system supports RS485 and TCP/IP interfaces, allowing for easy integration with RFID, barcode, and face recognition devices.
What is the expected service life of the mechanism?
The high-security mechanism is designed for heavy-duty use with a service life of up to 5 million cycles.
Can it operate in extreme temperature conditions?
Yes, the AKT321 is designed to operate reliably in temperatures ranging from -15 to 60 degrees Celsius.
