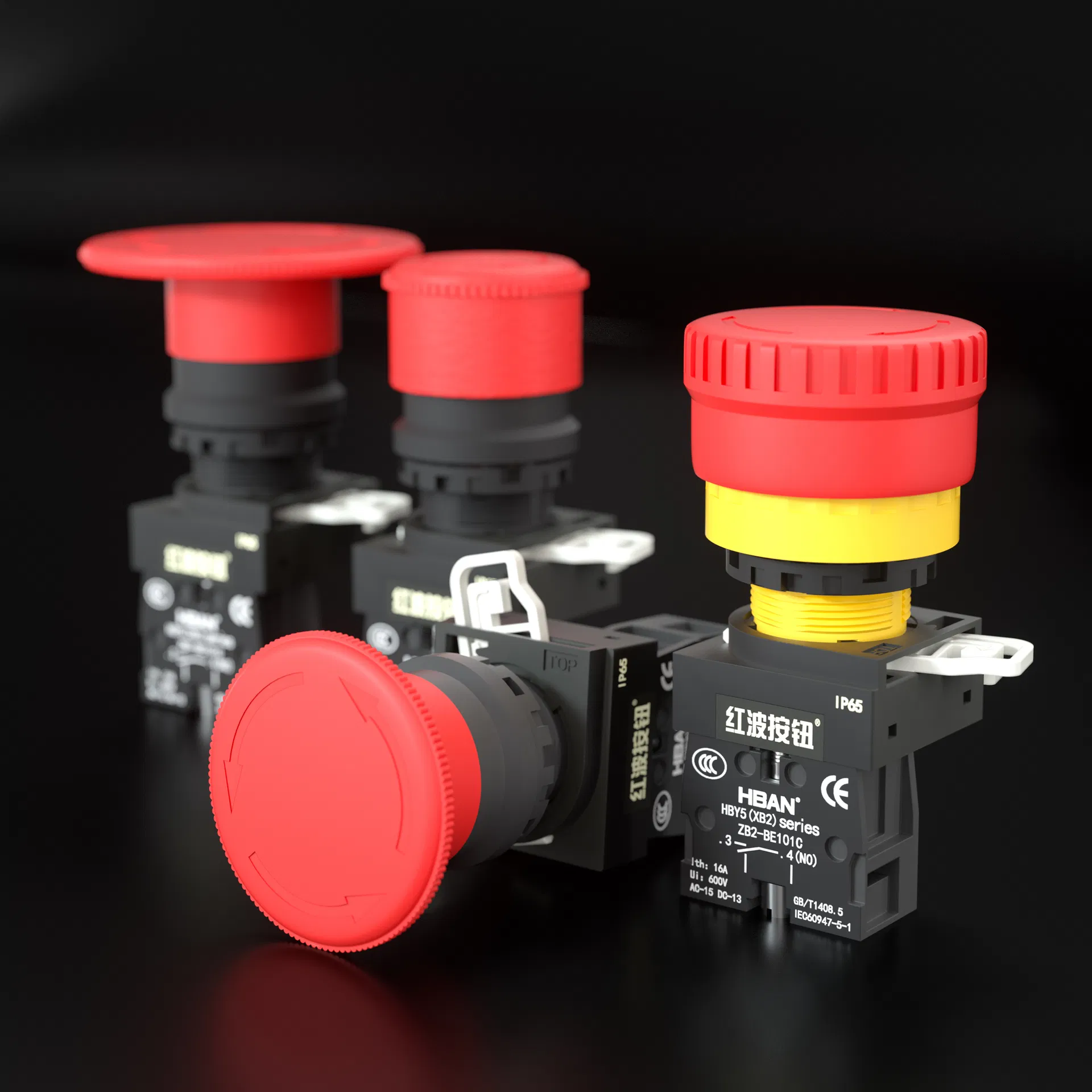

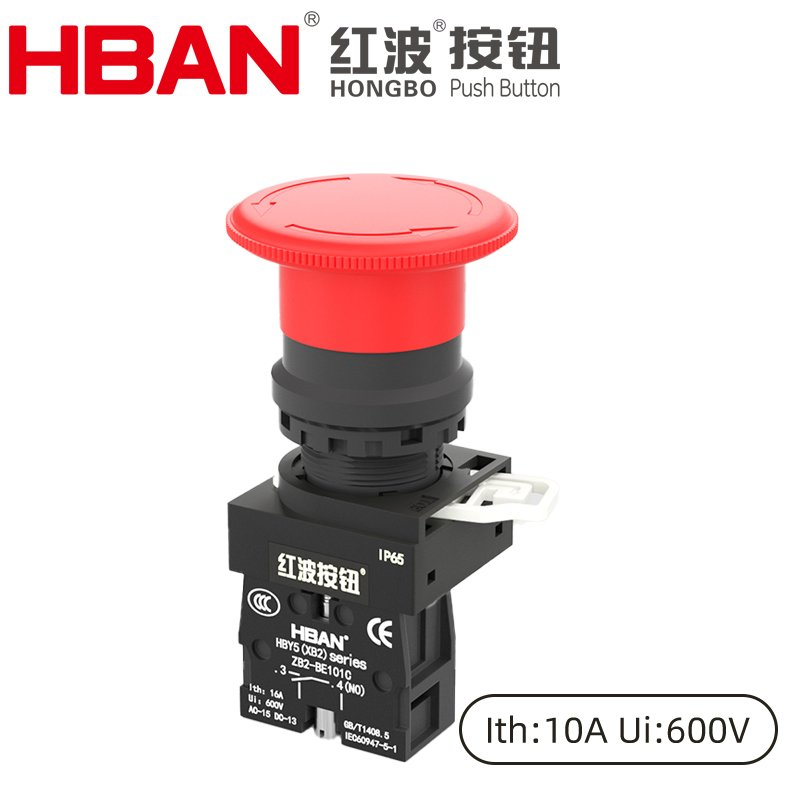

Hban 22mm Waterproof Emergency Stop Button Plastic for Machinery and Equipment

1 / 5

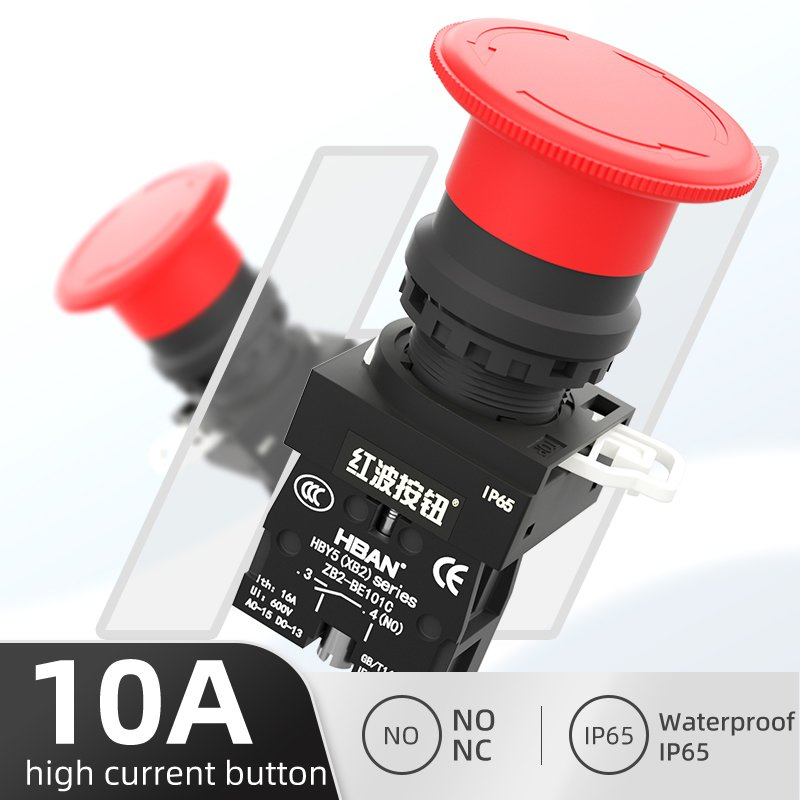

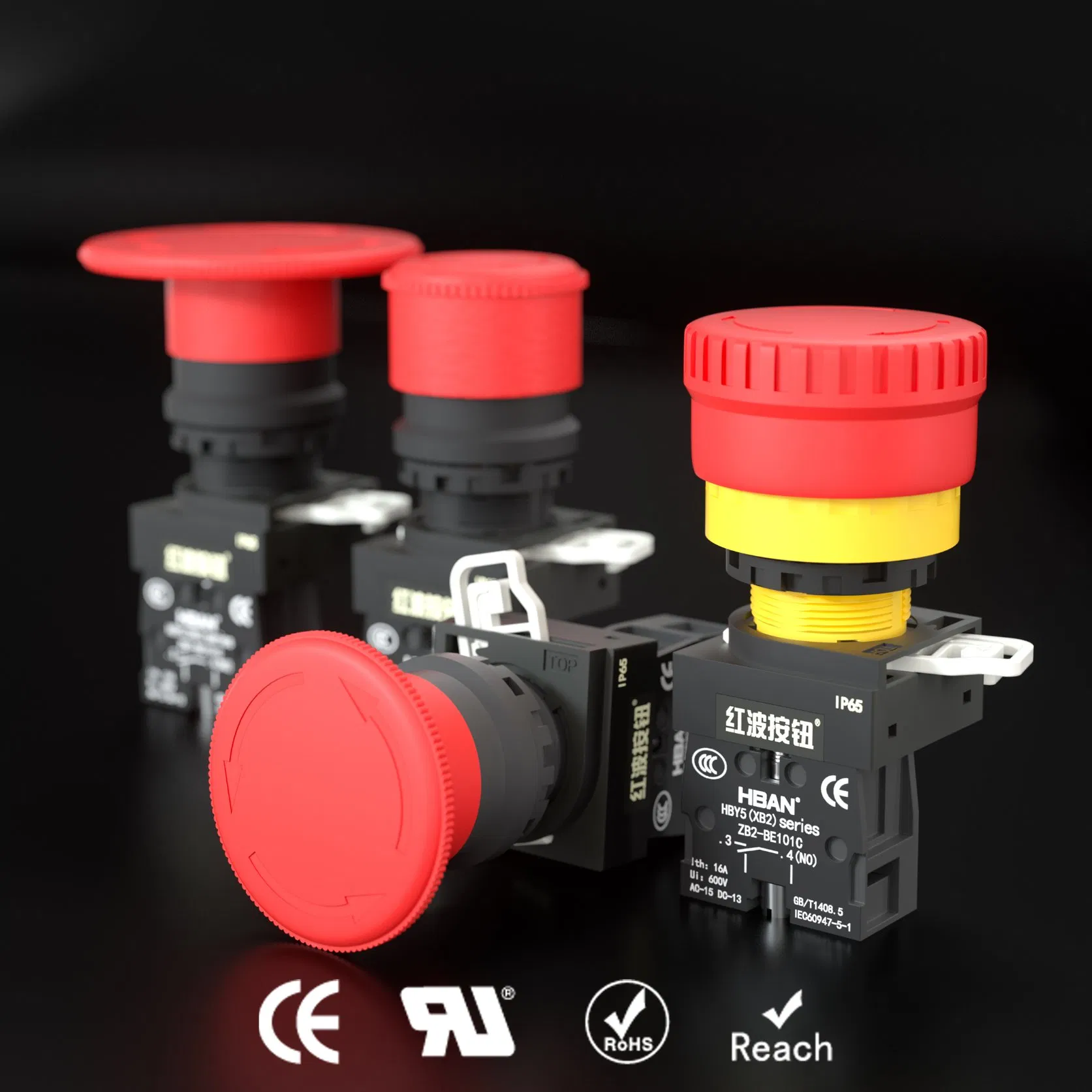

Hban 22mm Waterproof Emergency Stop Button Plastic for Machinery and Equipment

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	HBY5-KA-10TS/R
Contact Configuration	1NO
Operation Type	Latching
Certificate	CE UL RoHS Reach
Crust Material	Plastic

Working Temperature	-25℃~+65℃
HS Code	8536500090
Production Capacity	500,000/Month
Package Size	21.00cm * 13.00cm * 6.00cm
Gross Weight	1.000kg

Product Description

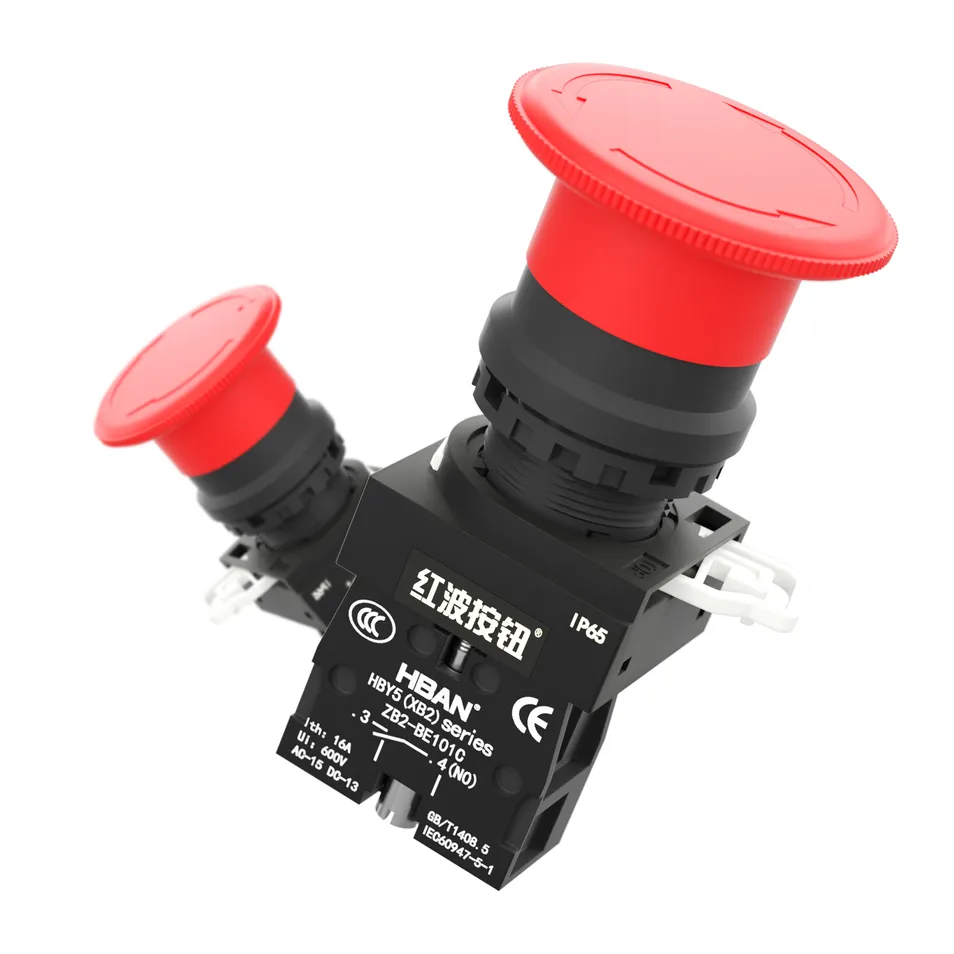

Simply press down to quickly stop device parts. Rotate clockwise 45° to release and pop up.

IP65 waterproof rating ensures protection for both surface and bottom.

Flame-retardant red shell for maximum safety in industrial environments.

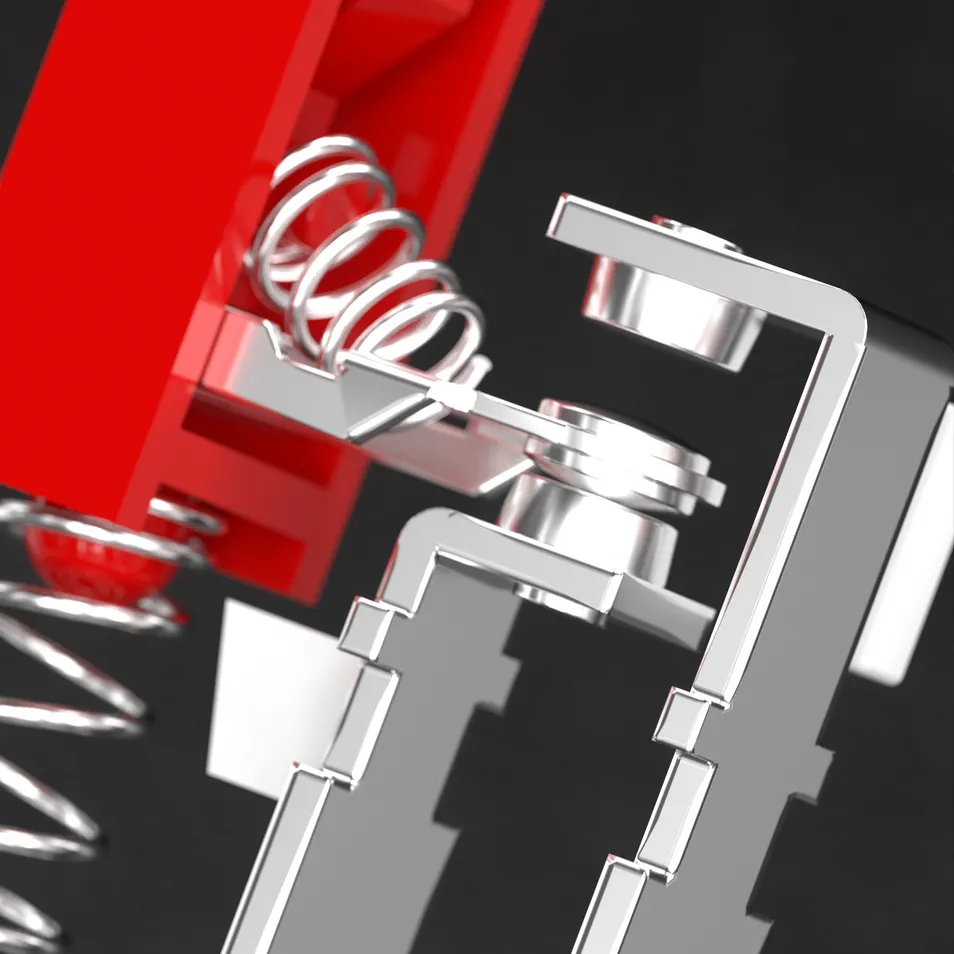

Magnetic Blow-out Device

Effectively absorbs fire arcs and counteracts high current damage, significantly improving contact module service life.

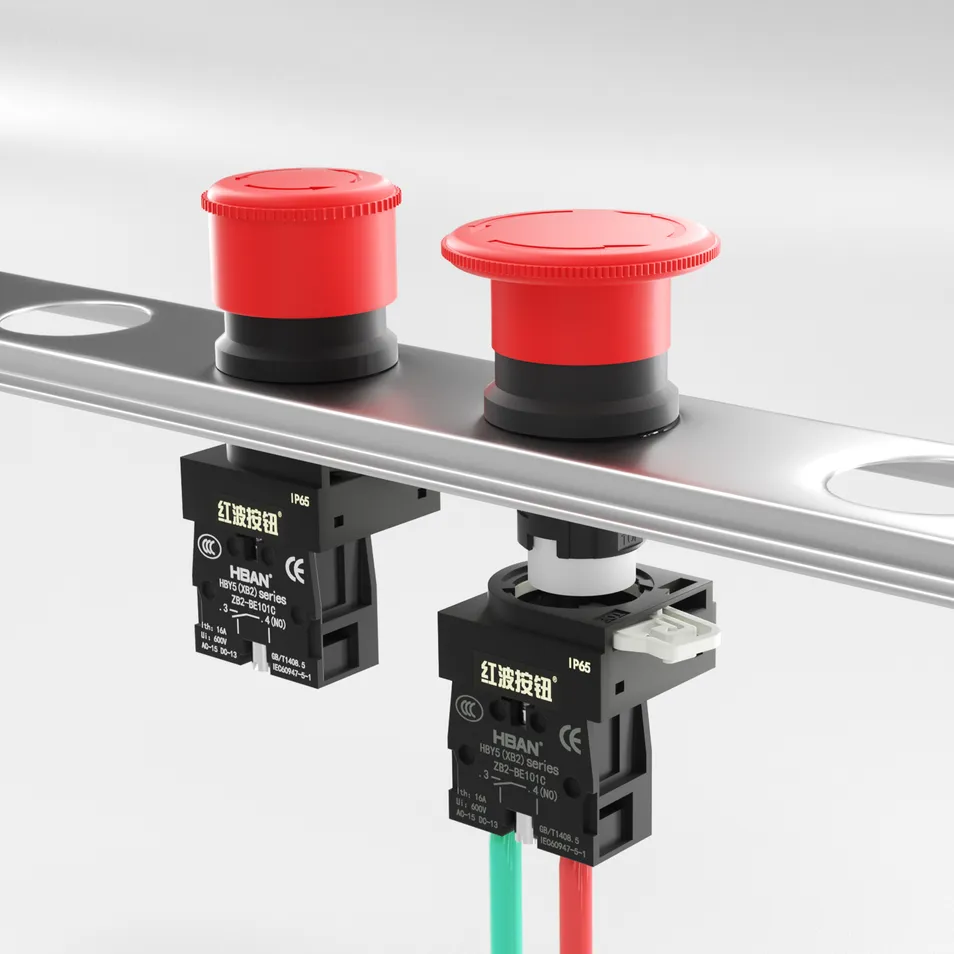

Easy Installation

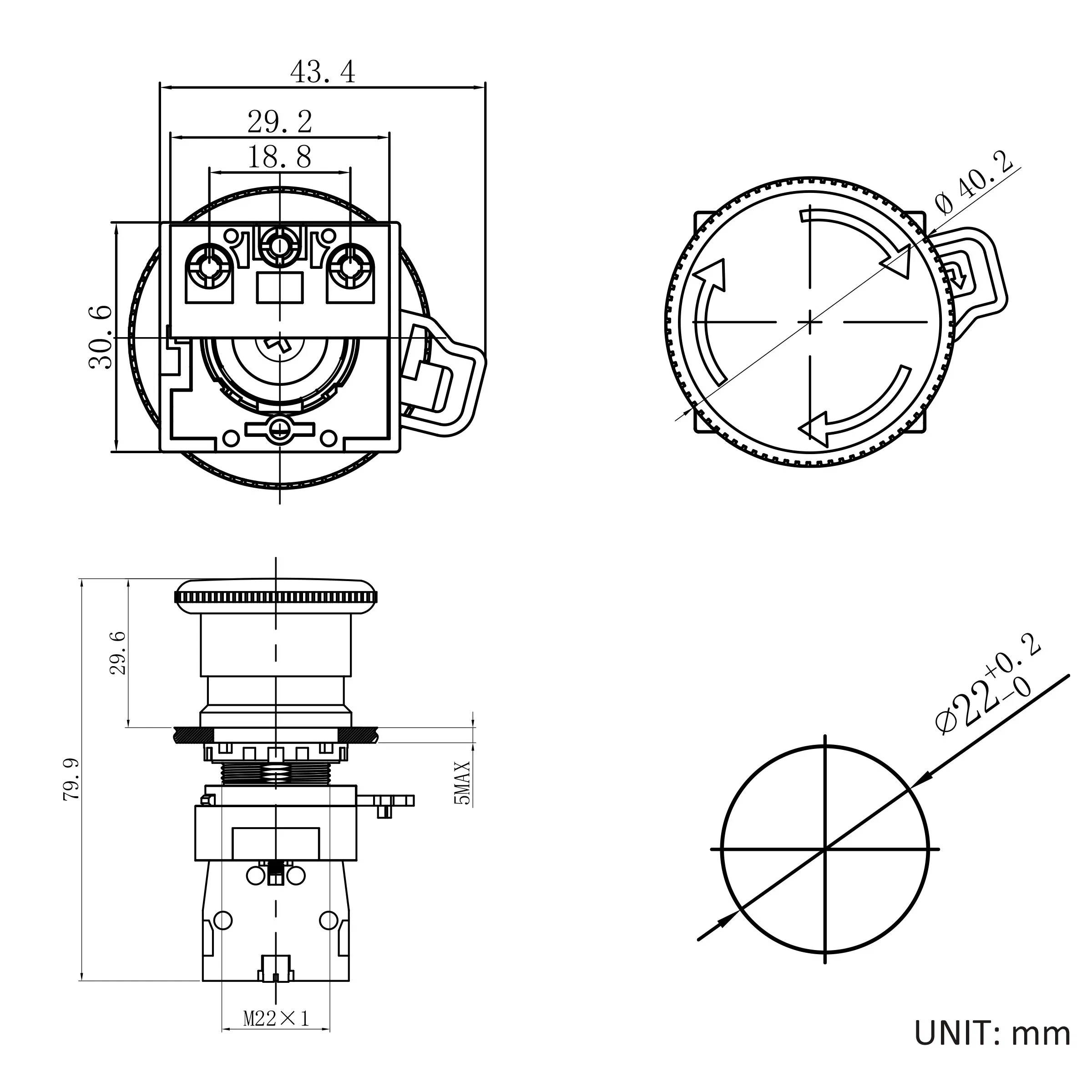

22mm/0.866in mounting hole size. Tool-free rotation enables quick installation and removal, facilitating pre-wiring.

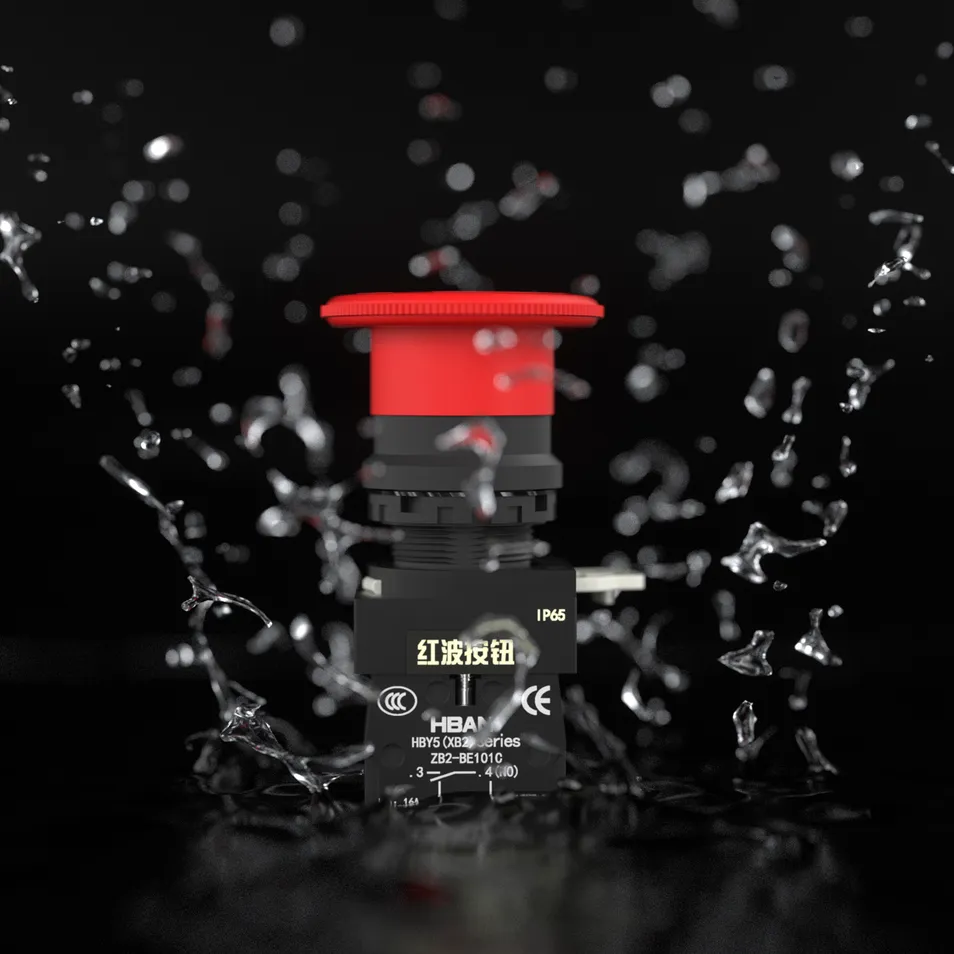

IP65 Waterproof Protection

Solids: 6 (Dust-tight)
Liquids: 5 (Low-pressure water jets)
Duration: Protected for no less than 3 minutes

Long Work Life

Switch Rating: 10A/600V
Electrical Life: 50,000 cycles
Mechanical Life: 500,000 cycles

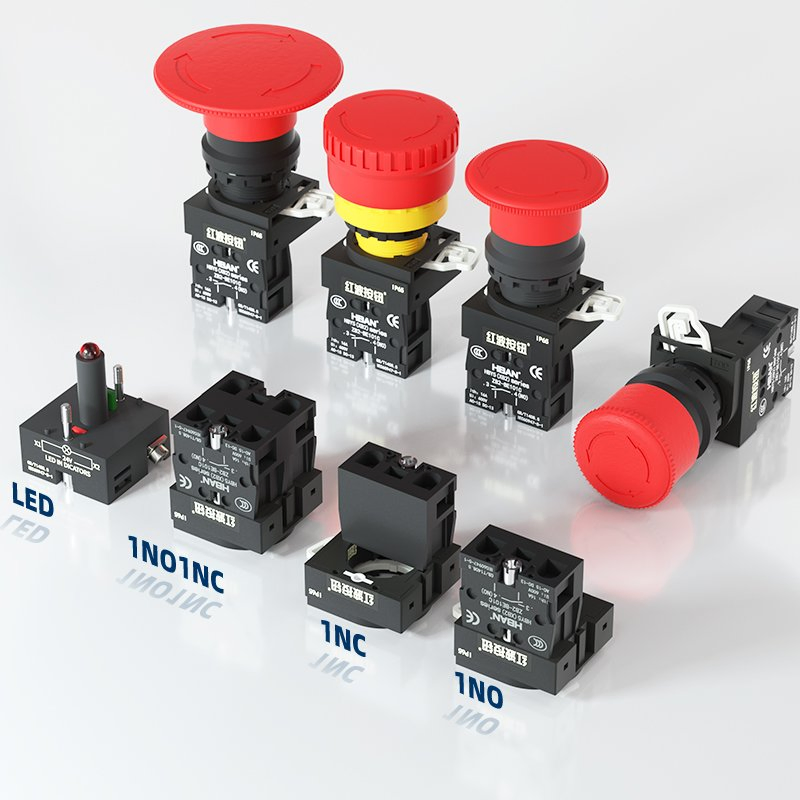

Model Specifications

Series Number: HBY5-K (Emergency Stop Version)
Mounting Hole	KA: Ø22mm (Plastic)	KB: Ø22mm (Metal)
Contact	10: 1NO \| 01: 1NC	11: 1NO1NC \| 22: 2NO2NC
Operation Type	TS: Emergency stop switch (Latching)
Voltage	6V - 220V Options	Customizable voltages available
LED Colors	Red, Green, Yellow, Orange, Blue, White

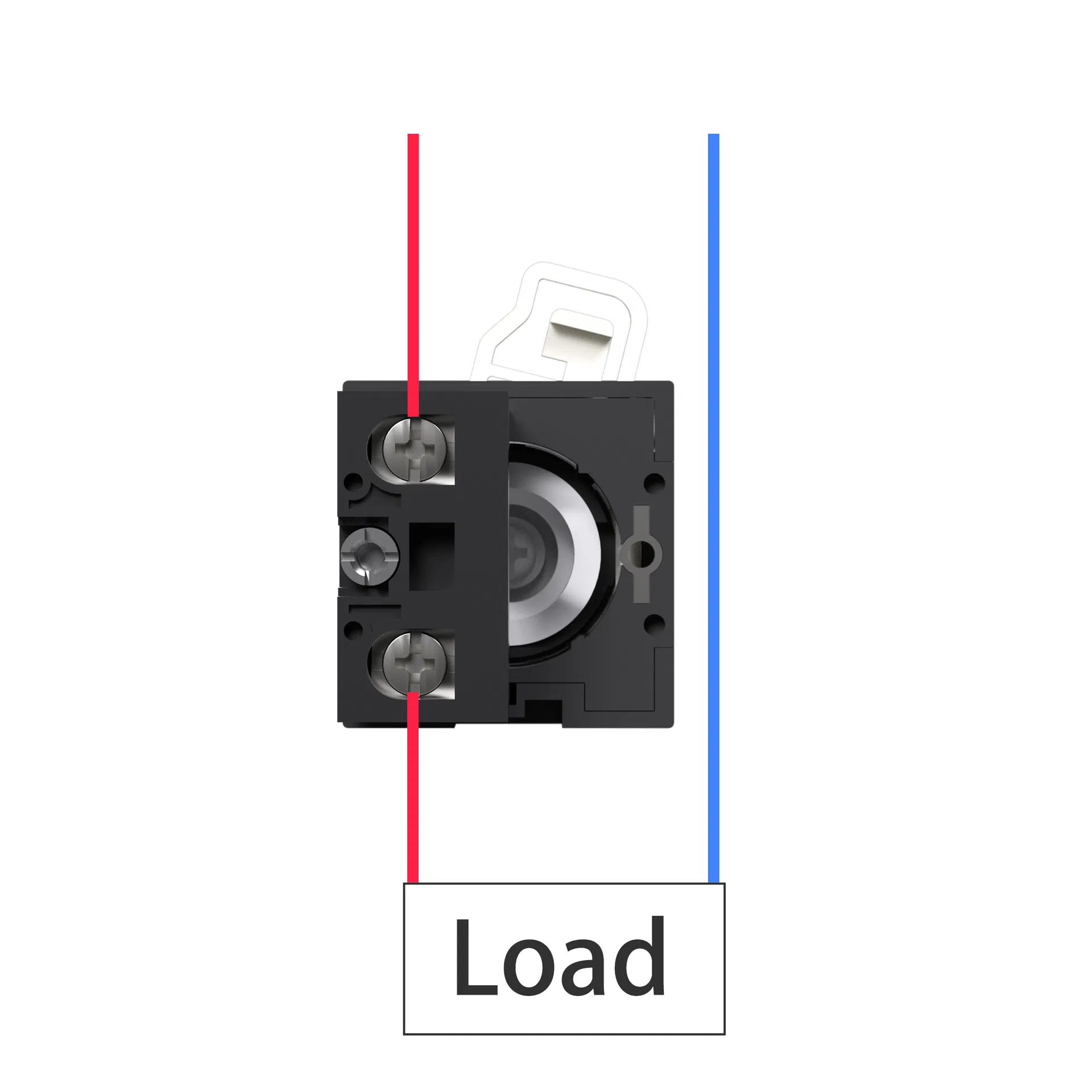

Wiring Example

Note: Red represents the live wire, blue represents the neutral wire. Suitable for normally open or normally closed wiring.

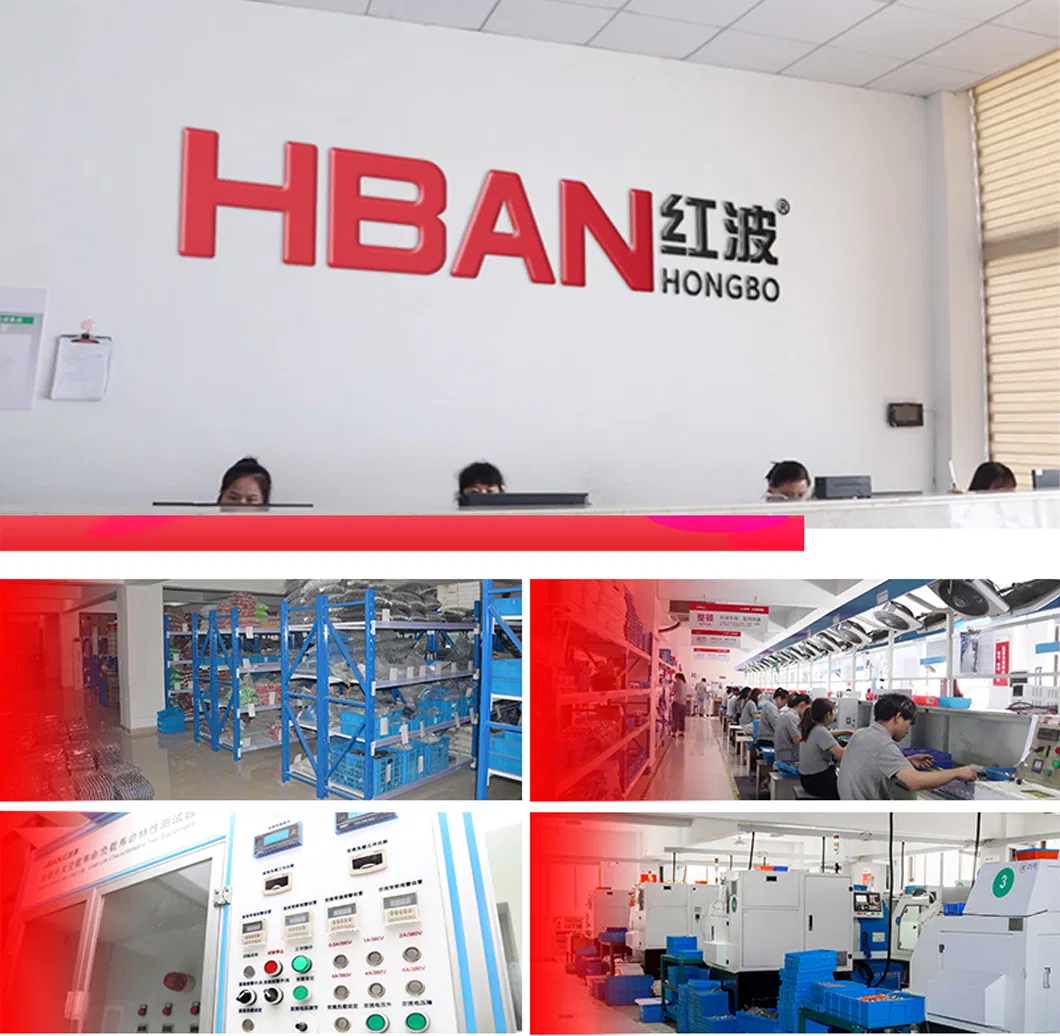

Facility & Applications

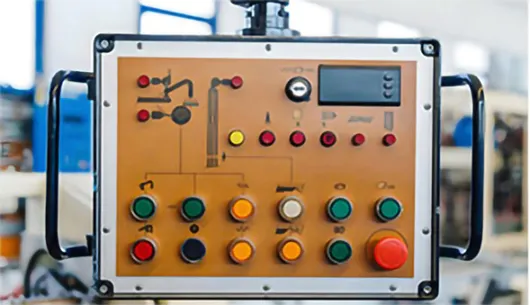

Industrial Automation

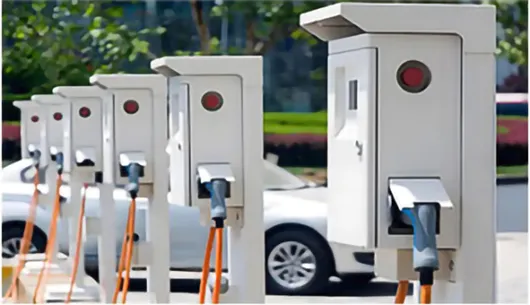

EV Charging Stations

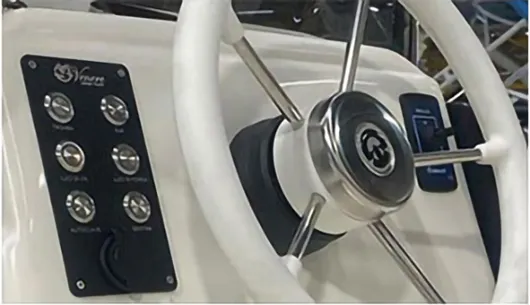

Marine Engineering

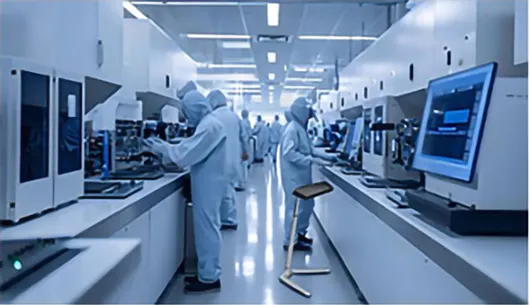

Lab & Testing

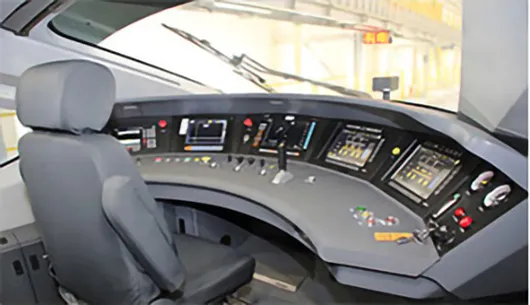

Rail Transit Systems

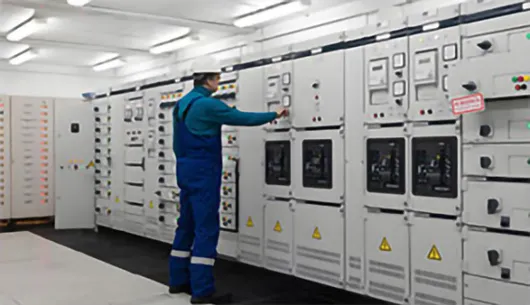

Power Control Systems

Packaging & Shipping

Secure Packaging

10pcs per box. Products are placed into separate foam boxes to prevent collision, then packed into corrugated paper boxes reinforced with strapping tape.
