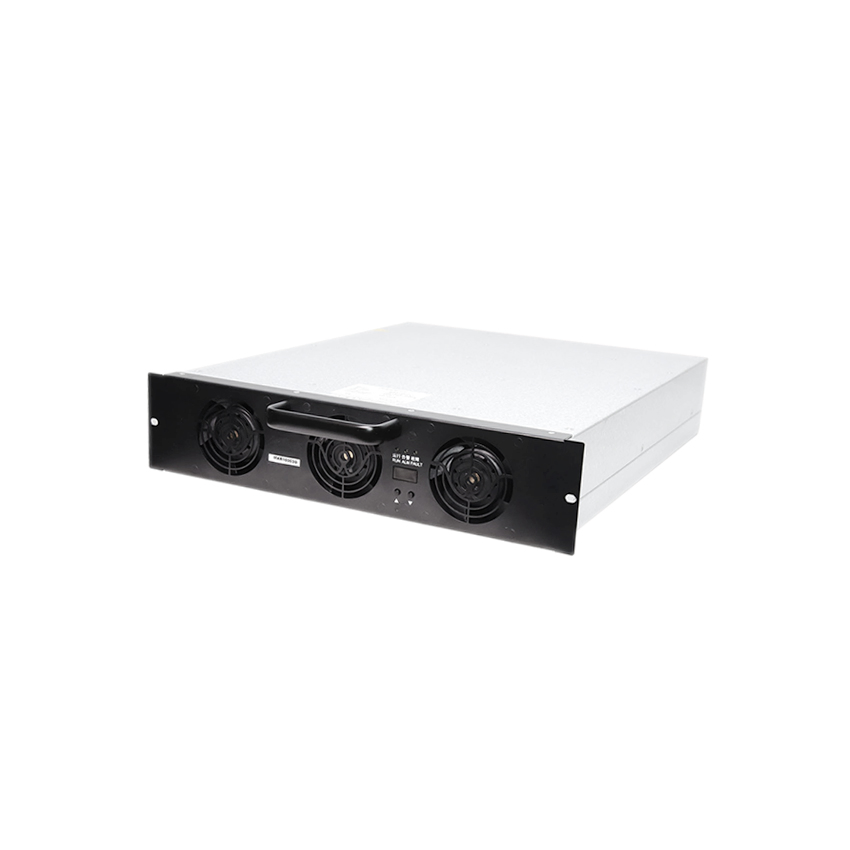

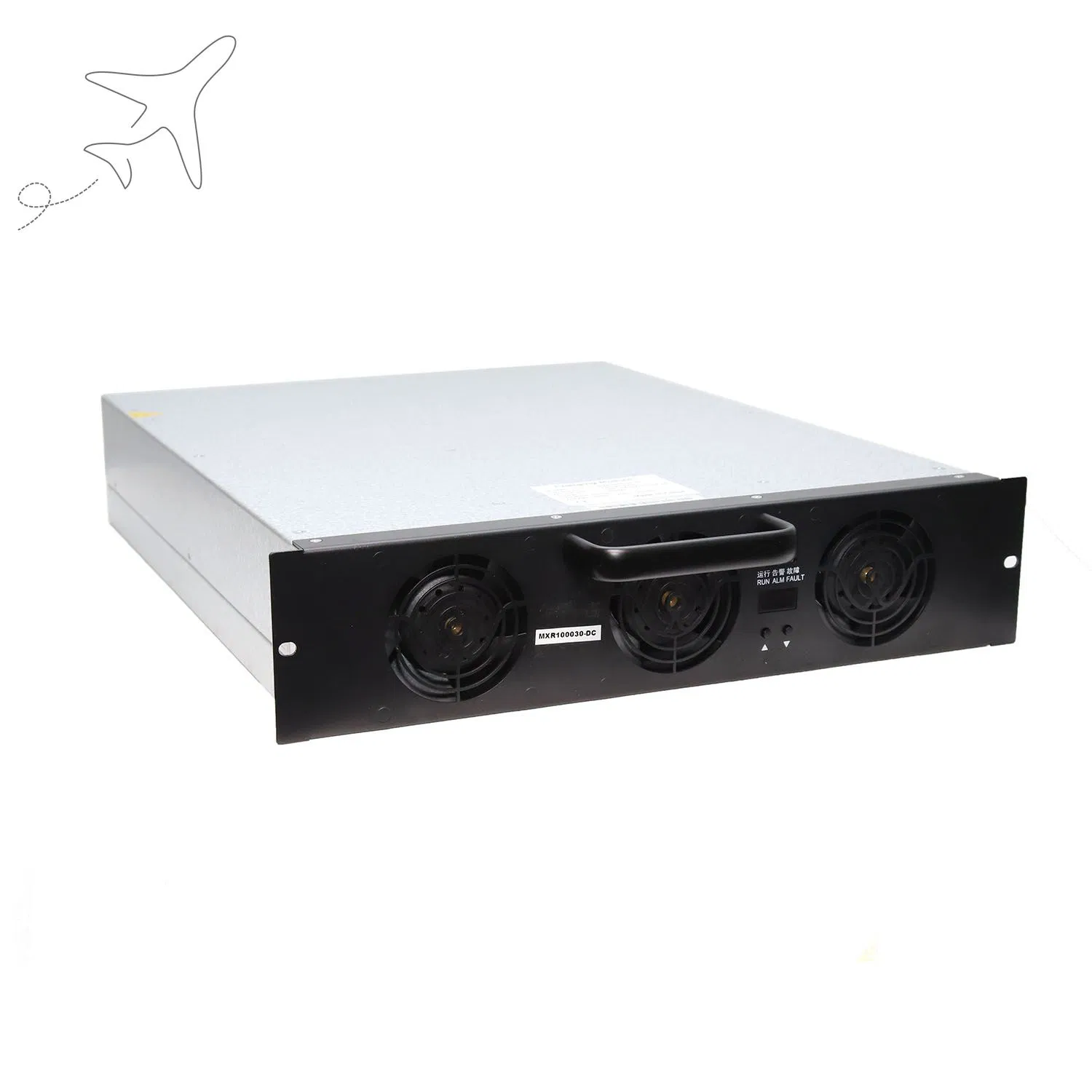

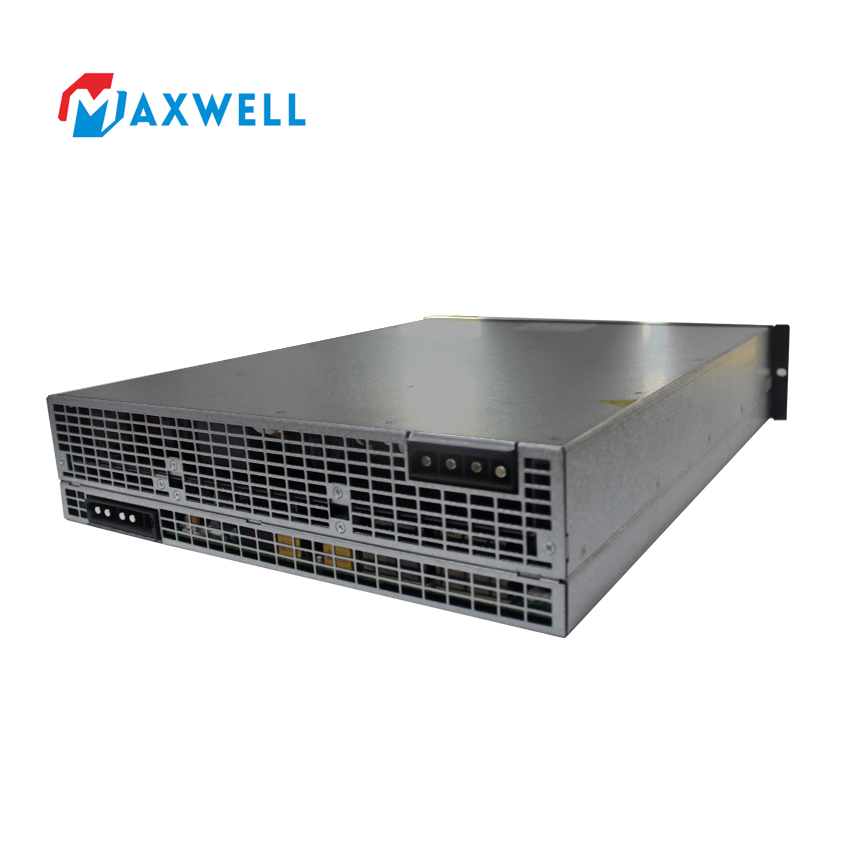

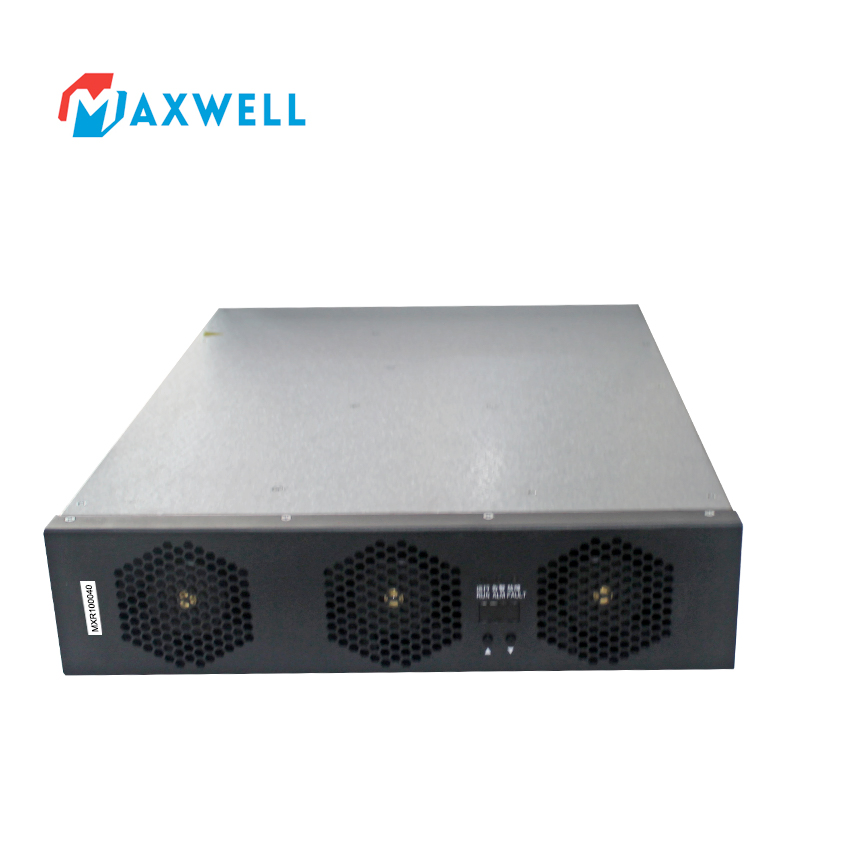

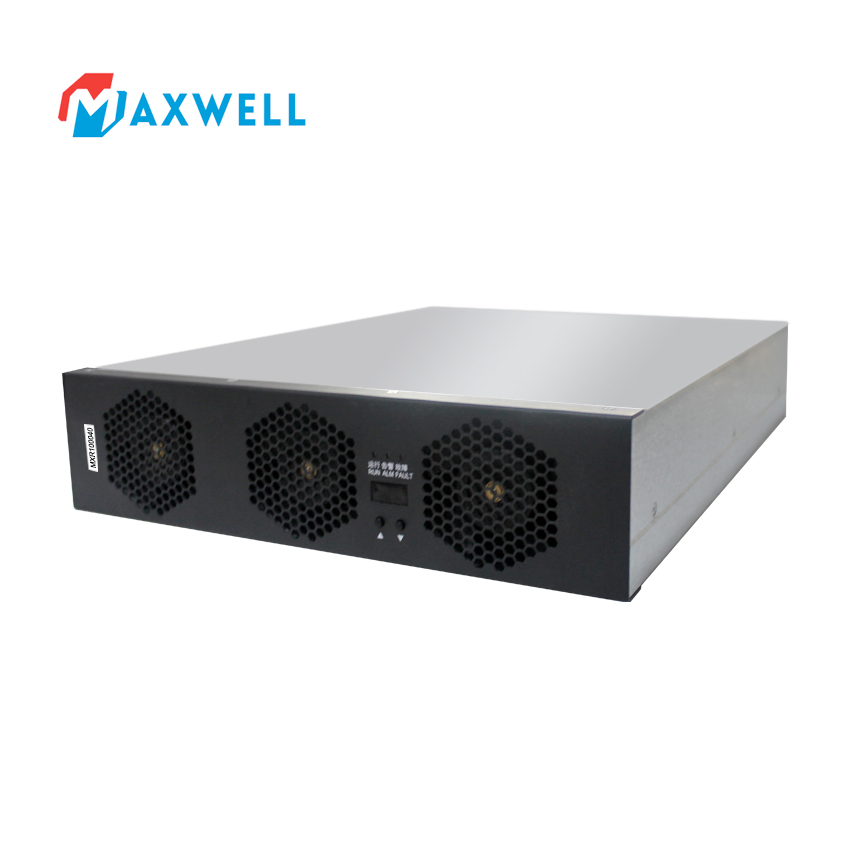

20kw/30kw/40kw AC/DC Rectifier Module for DC Fast Charging Station CE Approved

i Overview

Model NO.	MXR100030
Product Name	EV DC Charging Module
Type	Fast EV Charging Station
Output Voltage	100VDC-1000VDC
Output Current	0-100A
Power Supply	3phase+PE
Efficiency	>95.5%
Certification	CE, ISO, TUV, RoHS
Start Mode	Credit Card Payment, Mobile Remote Operation, RFID Authentic
Dimension	45936085mm

★ Product Description

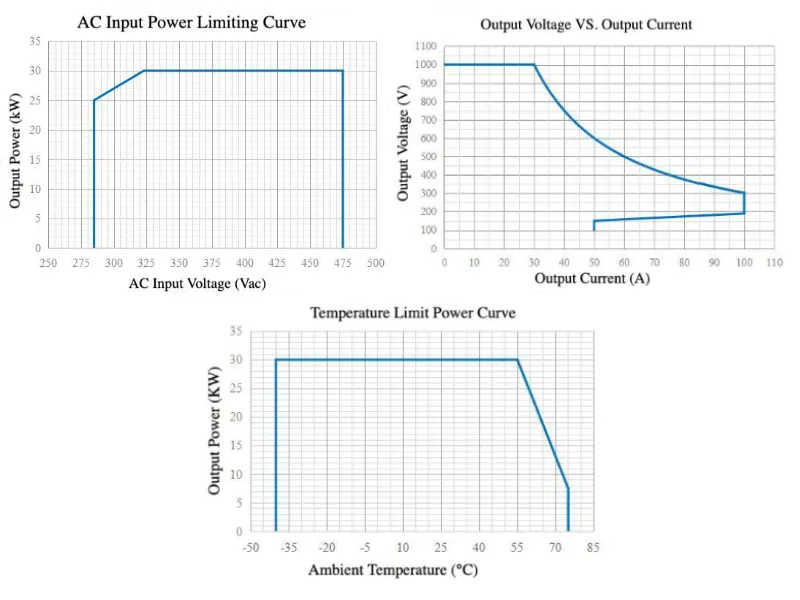

MXR100030 is a charging power module developed for the shortage of charging pile industry. It has prominent advantages in the two major industries of ultra-high full-load operating temperature and ultra-wide constant power range. At the same time, high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption and good EMC performance are also the main characteristics of the module.

Dimension & Weight	85mm(H)360mm(W)459mm(D) ≤26kg
Communication mode	CAN bus
Input voltage	285Vac-475Vac, three phase+PE
Output power	30kw @ output voltage ≥ 300Vdc
MTBF	> 500,000 hours
Test Specification	IEC61851-21-2:2018; EN61851-21-2-2017

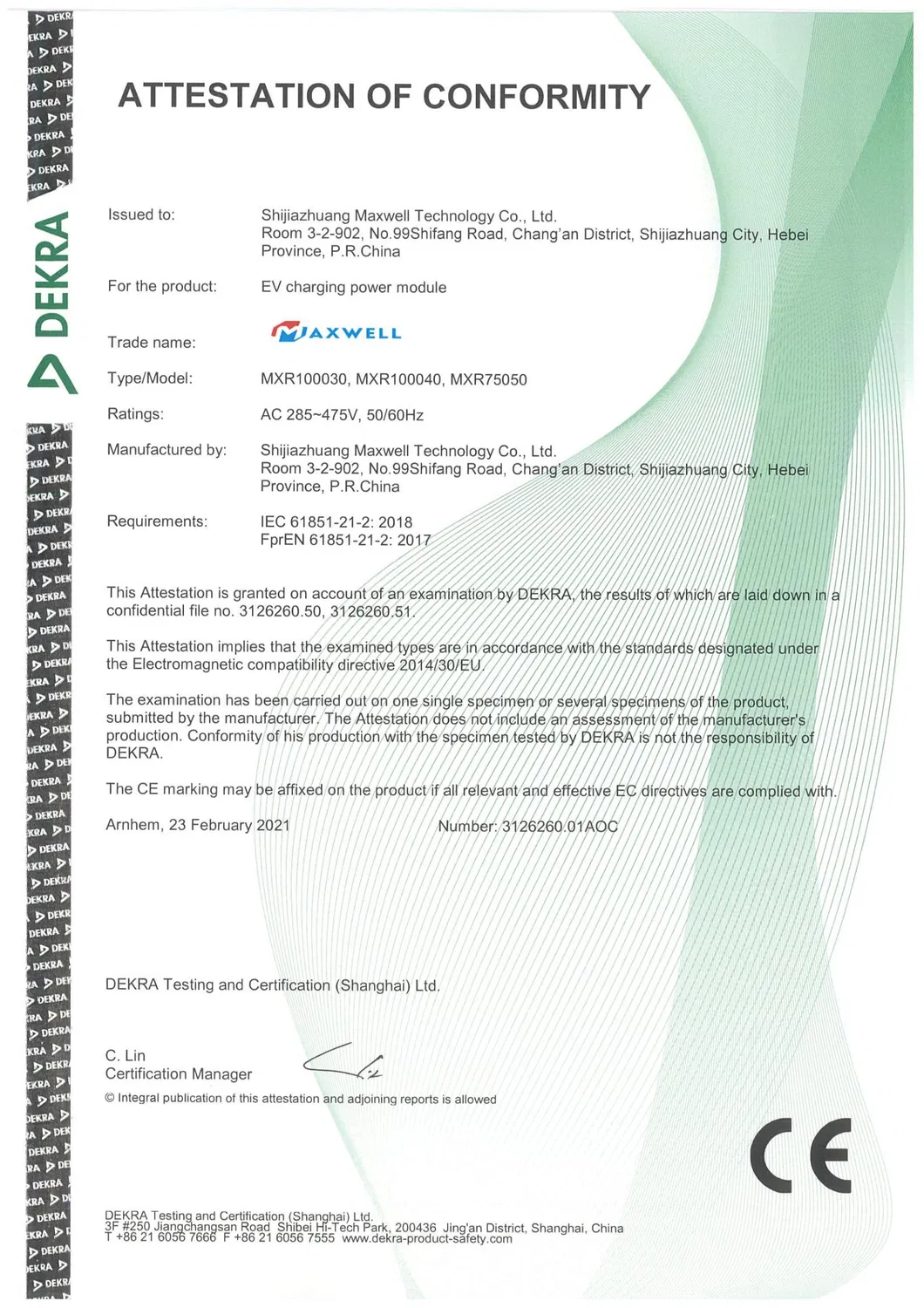

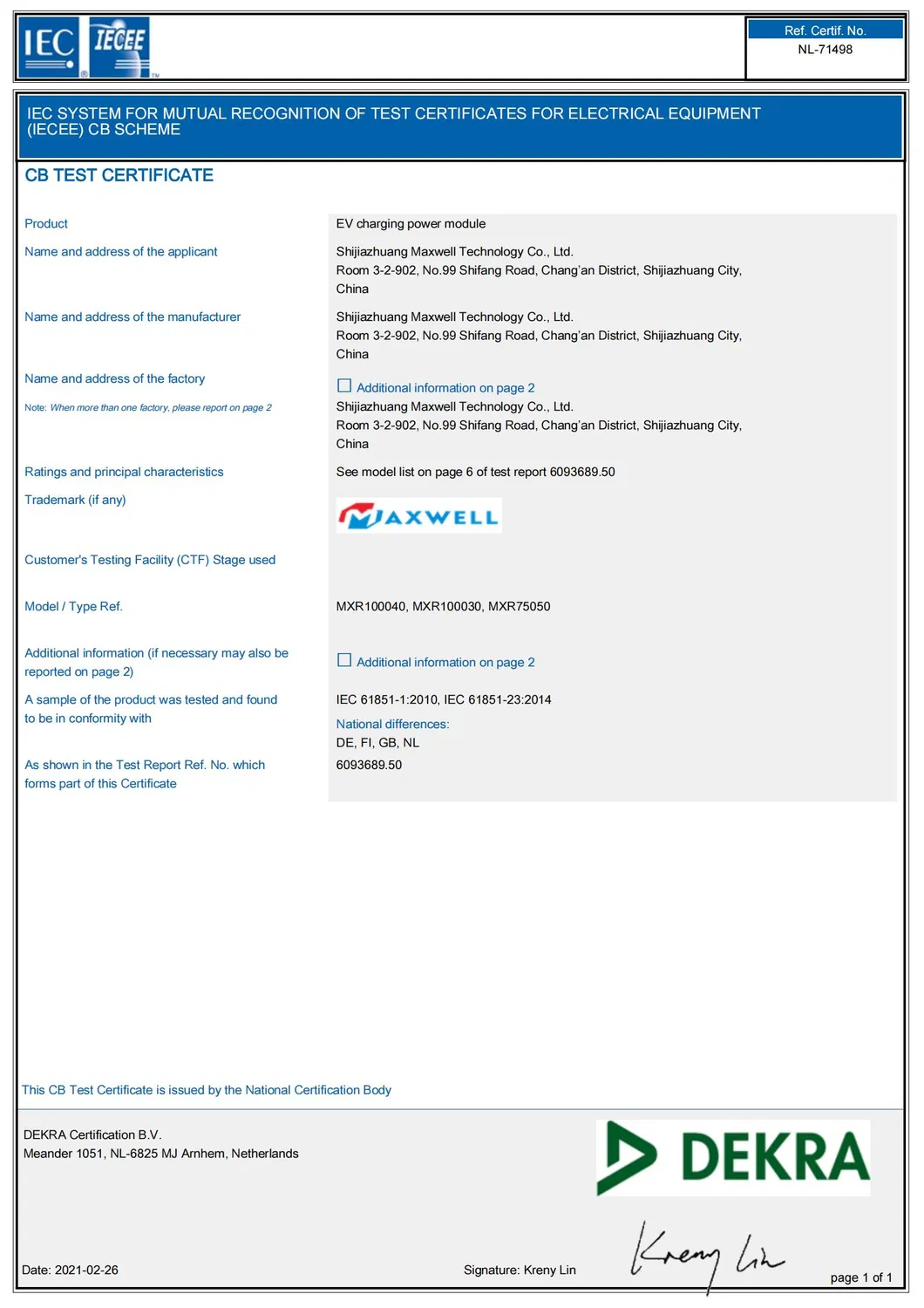

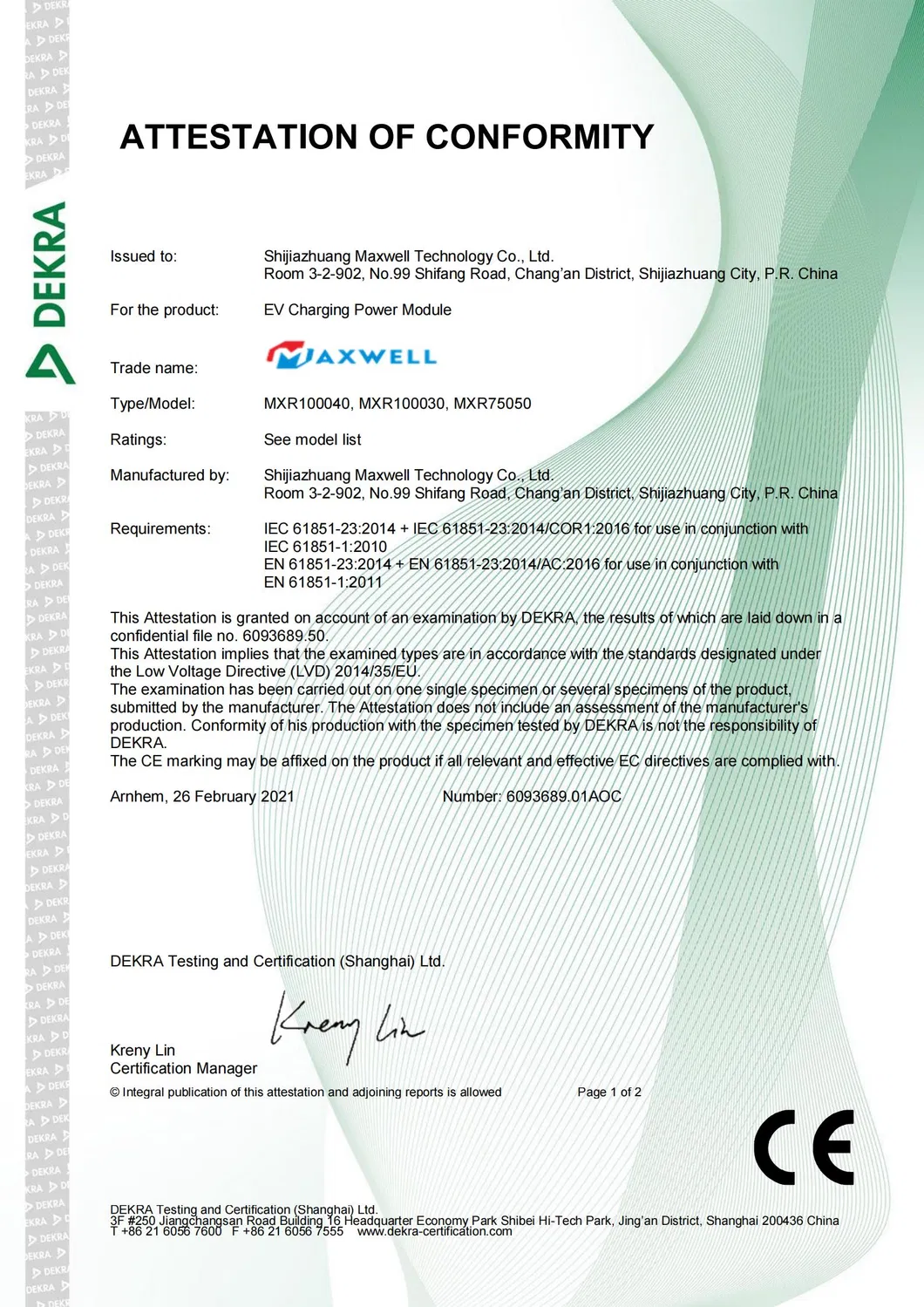

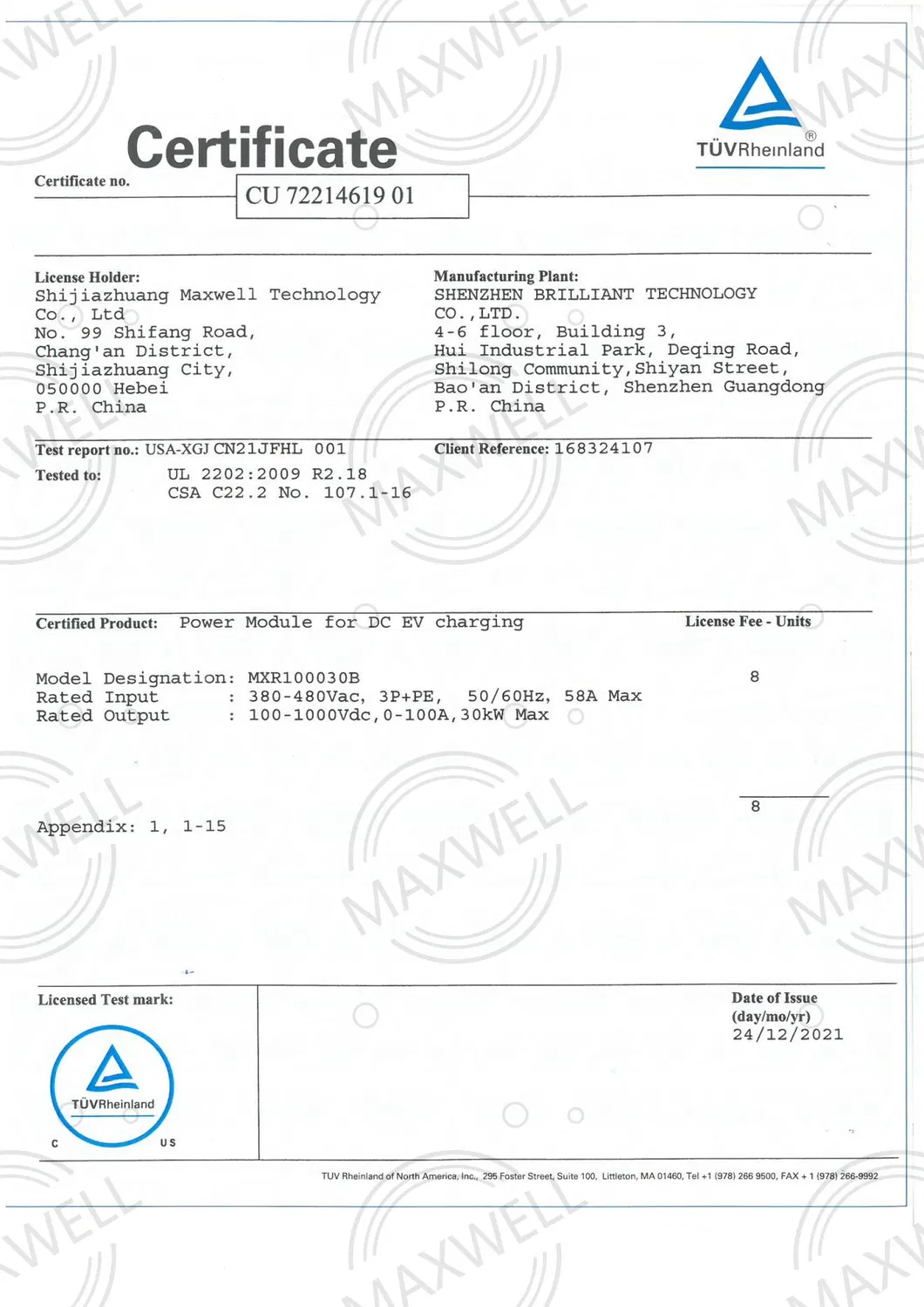

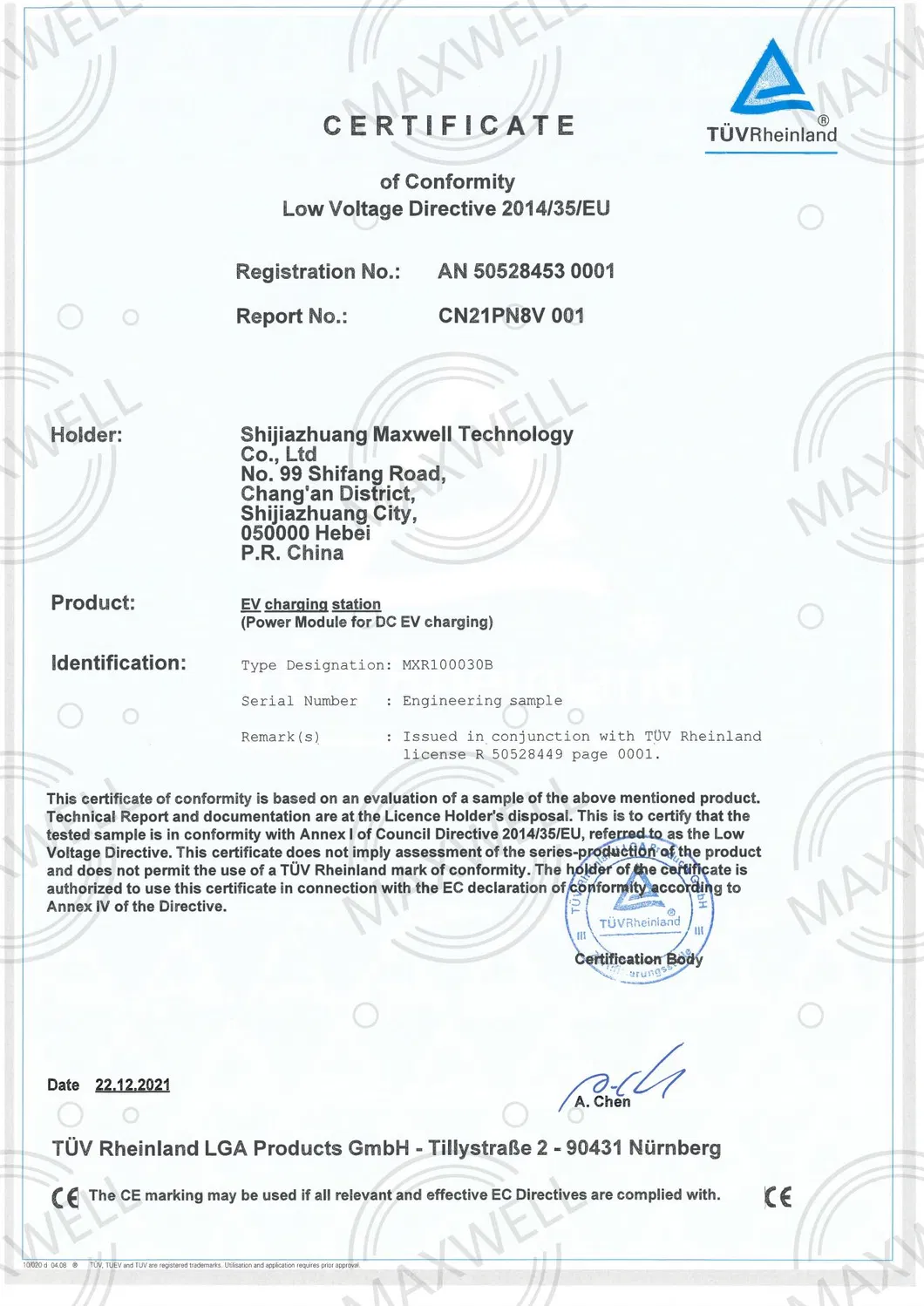

✔ Certifications

📦 Packaging & Shipping

Package Size	59.00cm * 47.00cm * 33.00cm
Package Gross Weight	29.300kg
Transport Package	Kraft Carton/Wooden Carton/Pallet

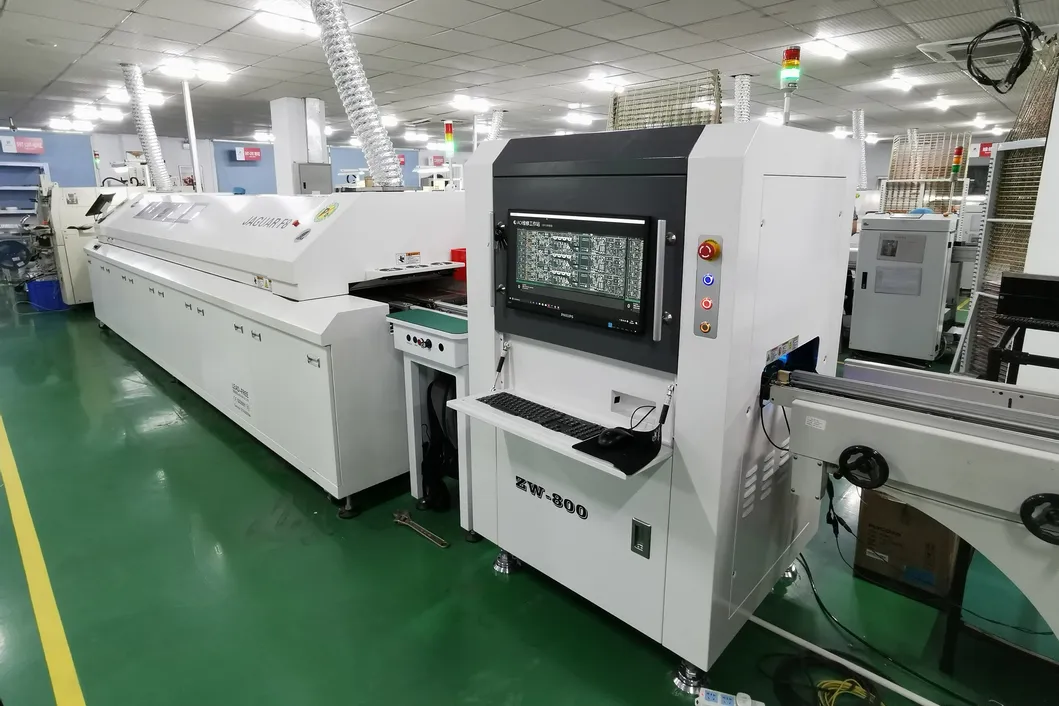

🏢 Company Profile

We are a state-level high-tech enterprise and one of the leading enterprises of new energy and energy internet supported by the municipal government. We focus on the research and development, production and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers, based on owning independent intellectual property rights.

At present, our products are widely used in automotive, electric power, railway, metallurgy, communications and other fields, and its performance cases are spread all over the country and around the world.

There are currently more than 20 models of products of 15kW, 20kW, 30kW, 40kW and 50kW series. We have participated in major projects including convention centers, international airports, and large bus charging terminals, enjoying a high reputation in the field of new energy vehicle charging stations.

? FAQ

Q1: Why choose your EV Charger Module?

Our professional technical team ensures industry leadership with international standardization designs and smart back-end services. Our products have passed extensive application scenarios and laboratory standard tests, achieving CE and UL certifications.

Q2: What are the main advantages of your charging modules?

Features include 50~1000V charging voltage range, digital controlled power, active PFC (0.99 power factor), soft start/pre-charging, and comprehensive protection for both input and DC output sides.

Q3: How do you handle after-sales support?

We provide comprehensive technical training through written materials, videos, or face-to-face sessions. For urgent situations, professional technicians are available for on-site support to assist with maintenance and parts replacement.

Q4: What are your terms of packing?

Generally, we pack our goods in kraft cartons with or without pallets. Branded packaging is available for authorized patent holders.

Q5: What is the typical delivery time?

Delivery is typically made within 2-3 weeks after the order is confirmed.

Q6: Which charging standards do your modules support?

Our products comply with global DC fast charging standards including CCS-1, CCS-2, CHAdeMO, and GB/T.
